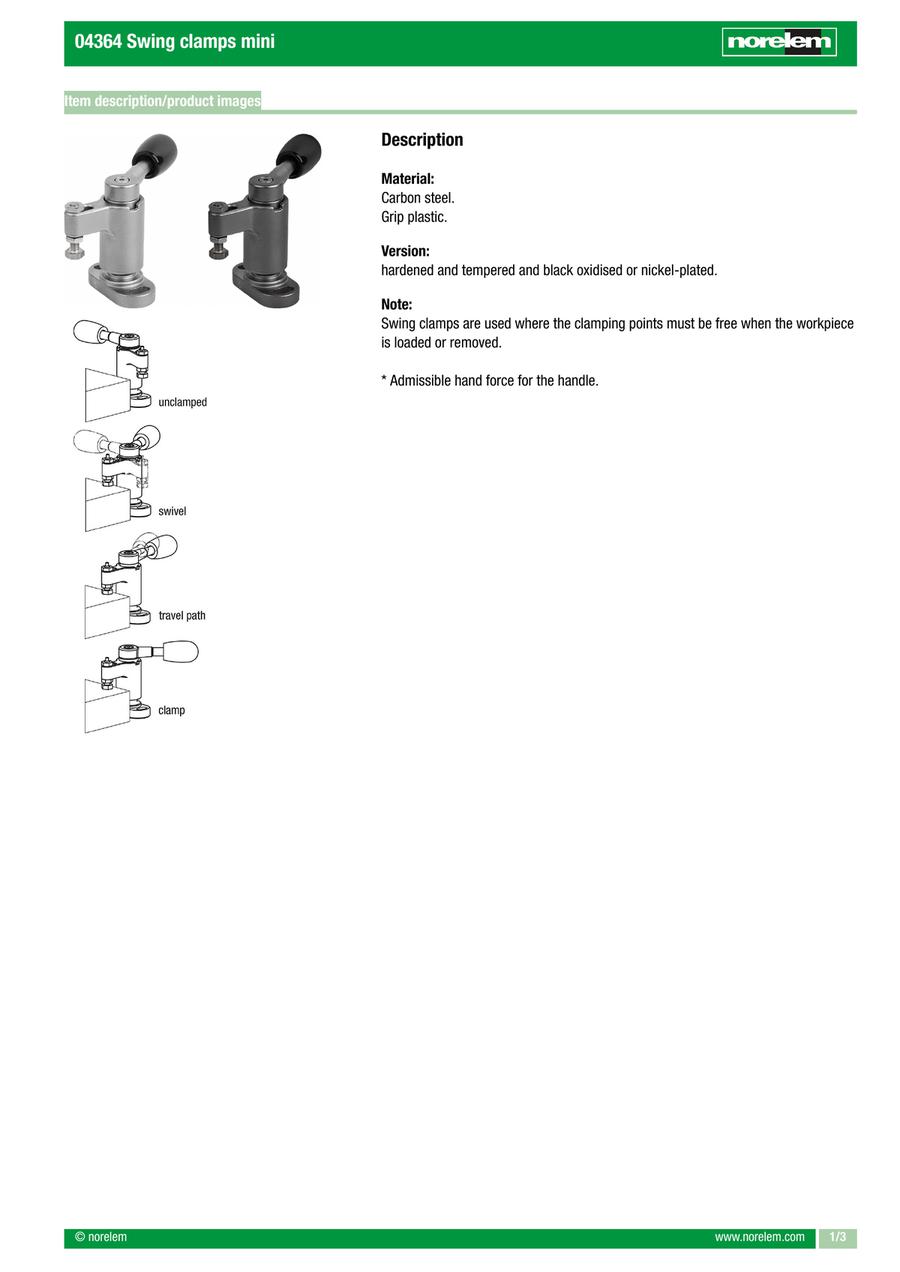

Swing clamp mini, carbon steel, nickel-plated (04364)
· Manual actuation
· Unobstructed insertion and removal of workpieces
· For tight spaces
· Application sectors: assembly, toolmaking, fixture construction, measuring technology
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 04364-01001 |
| 04364-01501 |
| 04364-02001 |
| 04364-03001 |
| 04364-11001 |
| 04364-11501 |
| 04364-12001 |
| 04364-13001 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | C (mm) | Hand force FH (N) | F=Retaining force (N) | Version 1 | A | D | E | F | G | B | L | H | K | M | J | N | S | Y max. | U | T | X=Clamping height | P | R | O | V | X max. | Y min. | Q | I | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
160.47 € | 1 | 4 Days | 18 | 100 | 1100 | left | 30 | 18 | 45.8 | 49 | 26 | 10 | 8 | 22 | 11.5 | 4.3 | 6 | 50 | 22.8 | 24.9 | 4.3 | M4 | 22.3 | 15 | 6 | 0.8 | 27 | 25.3 | 21.9 | 36 | 1 | 0.1340 | ||
189.83 € | 1 | 4 Days | 23 | 150 | 1800 | left | 40 | 23 | 61.3 | 66 | 35 | 14 | 10 | 30 | 15.3 | 5.3 | 8 | 63 | 28.5 | 34.9 | 5.3 | M5 | 30.6 | 20 | 8 | 1.1 | 34 | 34 | 31.5 | 45 | 1.4 | 0.2720 | ||
246.47 € | 1 | 4 Days | 30 | 200 | 2200 | left | 50 | 30 | 76.5 | 82 | 45 | 18 | 16 | 37 | 20.7 | 8.4 | 8 | 80 | 45.5 | 40.7 | 8.4 | M8 | 31.7 | 26 | 12 | 1.4 | 48 | 39.7 | 32.7 | 65 | 1.5 | 0.6250 | ||
304.15 € | 1 | 4 Days | 40 | 300 | 3500 | left | 60 | 40 | 93 | 100 | 55 | 22 | 20 | 45 | 25.4 | 10.4 | 8 | 100 | 57 | 49.4 | 10.5 | M11 | 35.5 | 33 | 15 | 1.7 | 64 | 46.9 | 38 | 85 | 1.9 | 1.2580 | ||
160.47 € | 1 | 4 Days | 18 | 100 | 1100 | right | 30 | 18 | 45.8 | 49 | 26 | 10 | 8 | 22 | 11.5 | 4.3 | 6 | 50 | 22.8 | 24.9 | 4.3 | M4 | 22.3 | 15 | 6 | 0.8 | 27 | 25.3 | 21.9 | 36 | 1 | 0.1340 | ||
189.83 € | 1 | 4 Days | 23 | 150 | 1800 | right | 40 | 23 | 61.3 | 66 | 35 | 14 | 10 | 30 | 15.3 | 5.3 | 8 | 63 | 28.5 | 34.9 | 5.3 | M5 | 30.6 | 20 | 8 | 1.1 | 34 | 34 | 31.5 | 45 | 1.4 | 0.2720 | ||
246.47 € | 1 | 4 Days | 30 | 200 | 2200 | right | 50 | 30 | 76.5 | 82 | 45 | 18 | 16 | 37 | 20.7 | 8.4 | 8 | 80 | 45.5 | 40.7 | 8.4 | M8 | 31.7 | 26 | 12 | 1.4 | 48 | 39.7 | 32.7 | 65 | 1.5 | 0.6250 | ||
304.15 € | 1 | 4 Days | 40 | 300 | 3500 | right | 60 | 40 | 93 | 100 | 55 | 22 | 20 | 45 | 25.4 | 10.4 | 8 | 100 | 57 | 49.4 | 10.5 | M10 | 35.5 | 33 | 15 | 1.7 | 64 | 46.9 | 38 | 85 | 1.9 | 1.2600 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | nickel-plated | Item | Swing Clamp |
|---|---|---|---|---|---|
| Version 2 | mini | Actuation | lever | RoHS | yes |
| PL Edelstahl | no |
Configure
Basic Attributes
-
C(mm)
-
Hand force FH(N)
-
F=Retaining force(N)
-
Version 1
- left
- right
-
A
-
D
-
E
-
F
-
G
-
B
-
L
- 8
- 10
- 16
- 20
-
H
-
K
-
M
-
J
-
N
-
S
-
Y max.
-
U
- 4.3
- 5.3
- 8.4
- 10.5
-
T
-
X=Clamping height
-
P
-
R
-
O
- 0.8
- 1.1
- 1.4
- 1.7
-
V
- 27
- 34
- 48
- 64
-
X max.
-
Y min.
-
Q
- 36
- 45
- 65
- 85
-
I
- 1
- 1.4
- 1.5
- 1.9
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
