5-axis clamping system compact jaw plate, smooth (41300)
· Optimum accessibility to the workpiece
· Compatible with zero-point clamping systems
· Easy to operate
· With positive down effect
· High clamping force on the workpiece
· Compatible with zero-point clamping systems
· Easy to operate
· With positive down effect
· High clamping force on the workpiece
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 41300-124000901500 |
| 41300-124001251500 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A (mm) | B=Width (mm) | L (mm) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|
4,195.20 € | 1 | 4 Days | 70 | 90 | 57.5 | 22.2720 | ||
5,034.24 € | 1 | 4 Days | 105 | 125 | 58 | 31.0000 |
Loading...
Basic information
| Material | Steel | Type | Main Body | Main material | Mild steel |
|---|---|---|---|---|---|
| Component material | Tool steel | Item | 5-axis clamping system compact | Version 1 | Norelem |
| Version 2 | Smooth version | C(mm) | 8/3 | H(mm) | 12/17 |

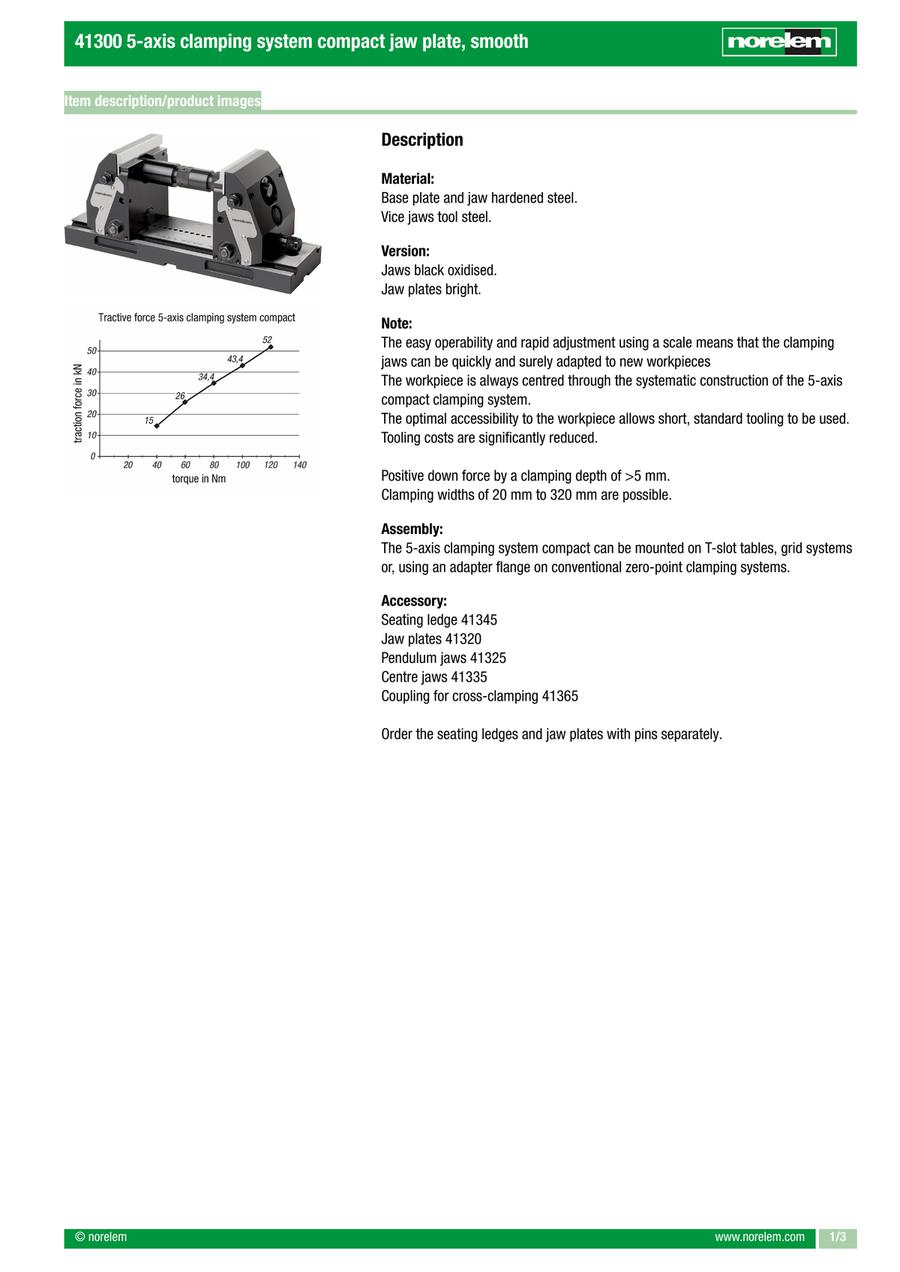

| Tractive force max.(kN) | See diagram |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
