Configure
- B=Width(mm)
- 32
- 48
- 68
- B1(mm)
- 12.1
- 16
- 18.8
- D1(mm)
- 8.4
- 13
- 17
- F=Retaining force(N)
- 7000
- 15000
- 21500
- H(mm)
- 44
- 53
- 72
- H1(mm)
- 40
- 45
- 60
- H2(mm)
- 27
- 28
- 38
- H3(mm)
- 15
- 20
- L=Length(mm)
- 52
- 72
- 86
- L1(mm)
- 28
- 40
- 41
- L2(mm)
- 72.5
- 100
- 126
- L3(mm)
- 38
- 55
- 63
- S1 (travel)(mm)
- 3
- 4
- 7
- BN=Slot width
- 10
- 14
- 18
- Tightening torque max.(Nm)
- 3
- 9
- 20
- Est. shipping days
- All
- Within 4 working days

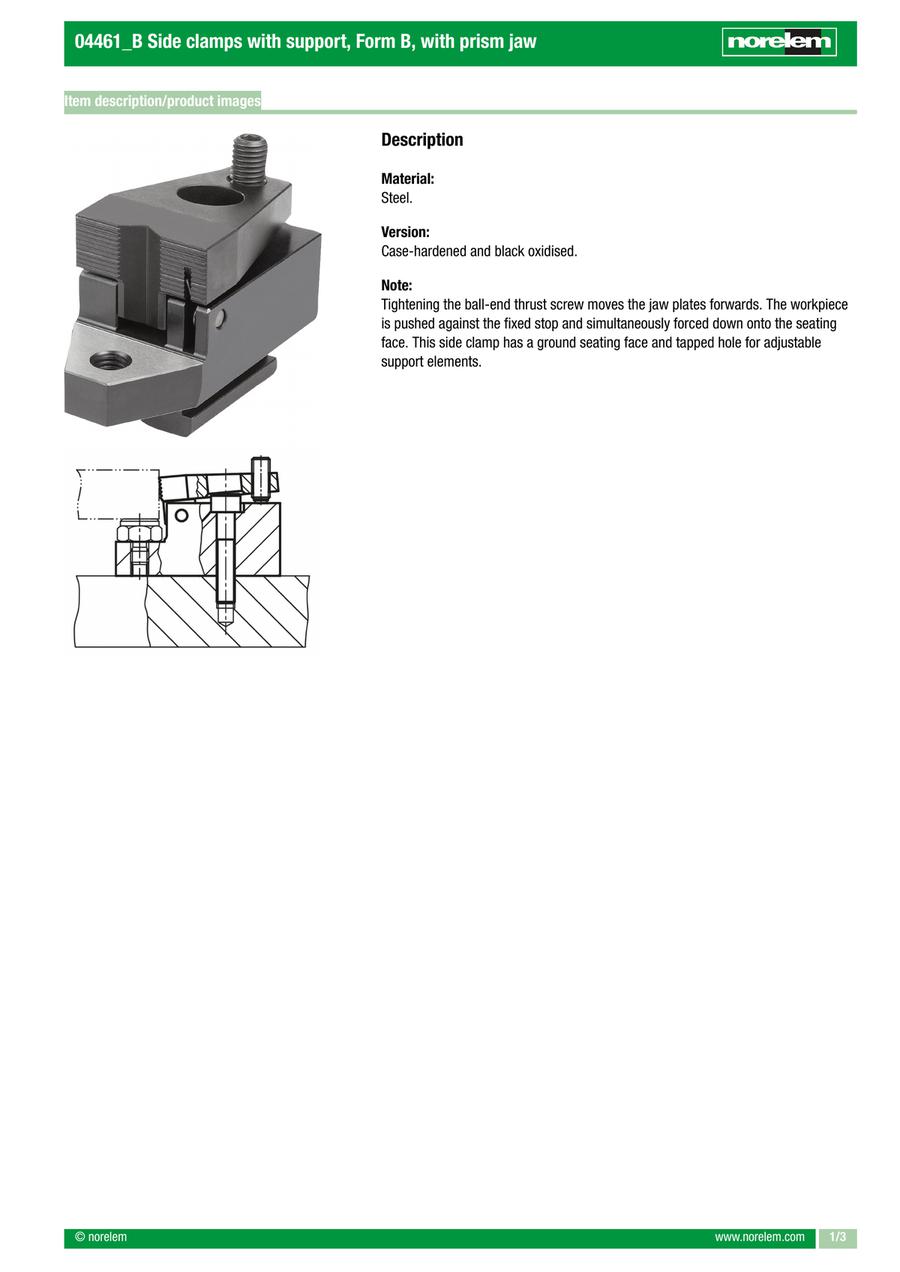

Side clamps with support, Form B, with prism jaw (04461)
Part number:
possible part numbers found.More Information
Basic information
· Workpiece clamping with positive down force
· High clamping forces
· Clamping jaws hardened
· Use on T-slot tables
· Ground contact face
