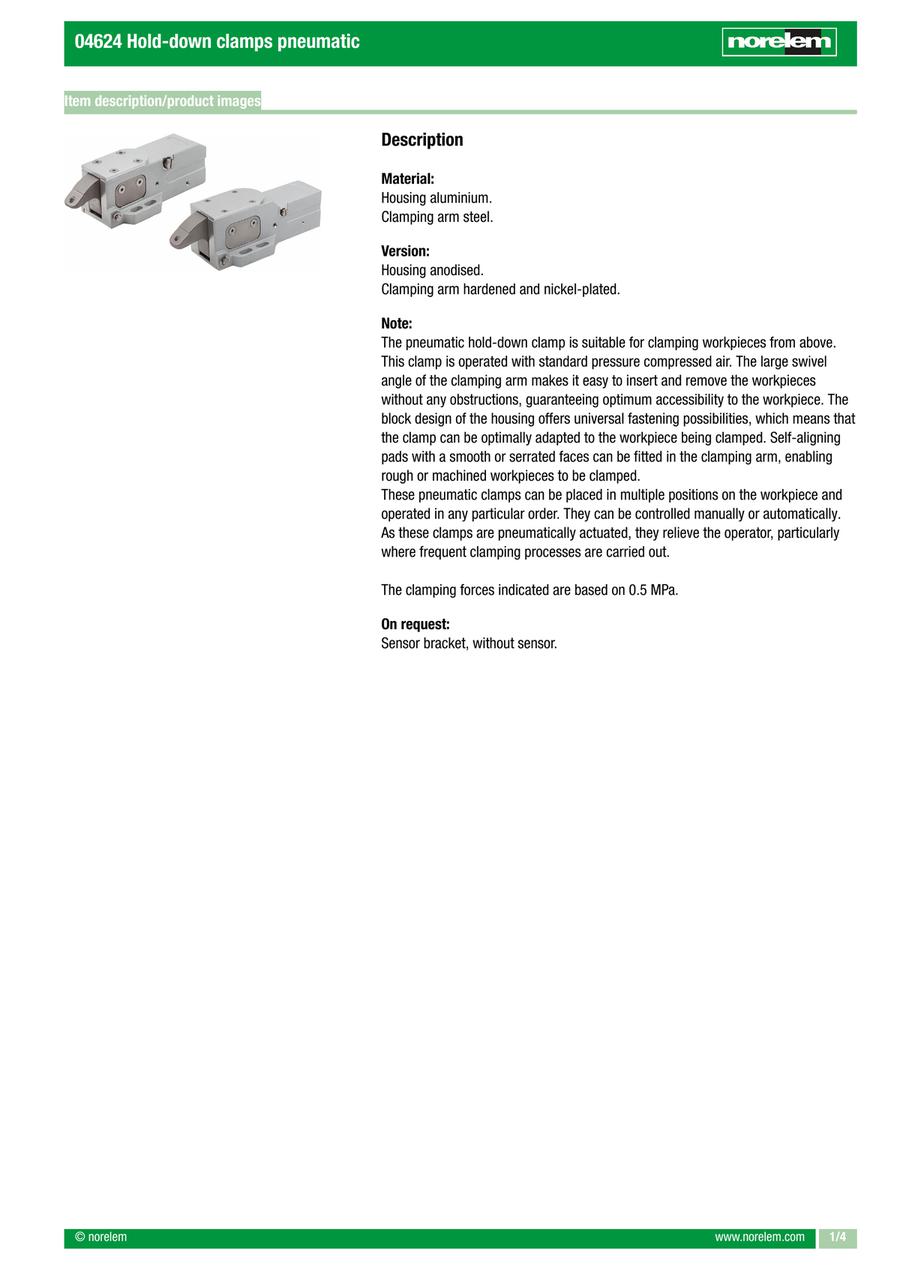

Side clamp, aluminium (04624)
· Universal fastening possibilities
· Operator relief by frequent clamping processes
· Compatible with self-aligning pads
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 04624-090 |
| 04624-135 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B | B1 | B2 | B3 | D | D1=Thread | D2 | D3 | D4 | F=Retaining force (N) | H | H1 | H2 | H3 | H4 | L=Length | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | S1 (travel) | S2 | Size | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
520.26 € | 1 | 4 Days | 44 | 25 | 12 | 35 | 4.5 | M4 | 12.2 | M4 | 2-4 | 140 | 36 | 20 | 28 | 8 | 1.9 | 90 | 20 | 12 | 5 | 20 | 4 | 53 | 27 | 19 | 21 | 2 | 9 | 1 | 0.2456 | ||
670.68 € | 1 | 4 Days | 65 | 40 | 18 | 53 | 6.5 | M6 | 18 | M6 | 2-6 | 320 | 54 | 30 | 33 | 12 | 2.4 | 135 | 30 | 20 | 8 | 32 | 6 | 84 | 38 | 30.5 | 34 | 3 | 15 | 2 | 0.8558 |
Loading...
Basic information
| Main material | aluminium | Component material | steel | Item | Side Clamp |
|---|---|---|---|---|---|
| Surface finish body | anodised | Surface finish component | hardened and nickel plated | Actuation | pneumatic |
| Application | rough and machined parts | Kind of fastening | elongated hole | Operating pressure(MPa) | 0.3 - 1.0 |
Configure
Basic Attributes
-
B
- 44
- 65
-
B1
-
B2
- 12
- 18
-
B3
- 35
- 53
-
D
-
D1=Thread
- M4
- M6
-
D2
-
D3
- M4
- M6
-
D4
- 2-6
- 2-4
-
F=Retaining force(N)
-
H
-
H1
-
H2
-
H3
-
H4
-
L=Length
-
L1
-
L2
-
L3
-
L4
- 20
- 32
-
L5
- 4
- 6
-
L6
- 53
- 84
-
L7
- 27
- 38
-
L8
- 19
- 30.5
-
L9
- 21
- 34
-
S1 (travel)
- 2
- 3
-
S2
- 9
- 15
-
Size
- 1
- 2
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
