NORELEM

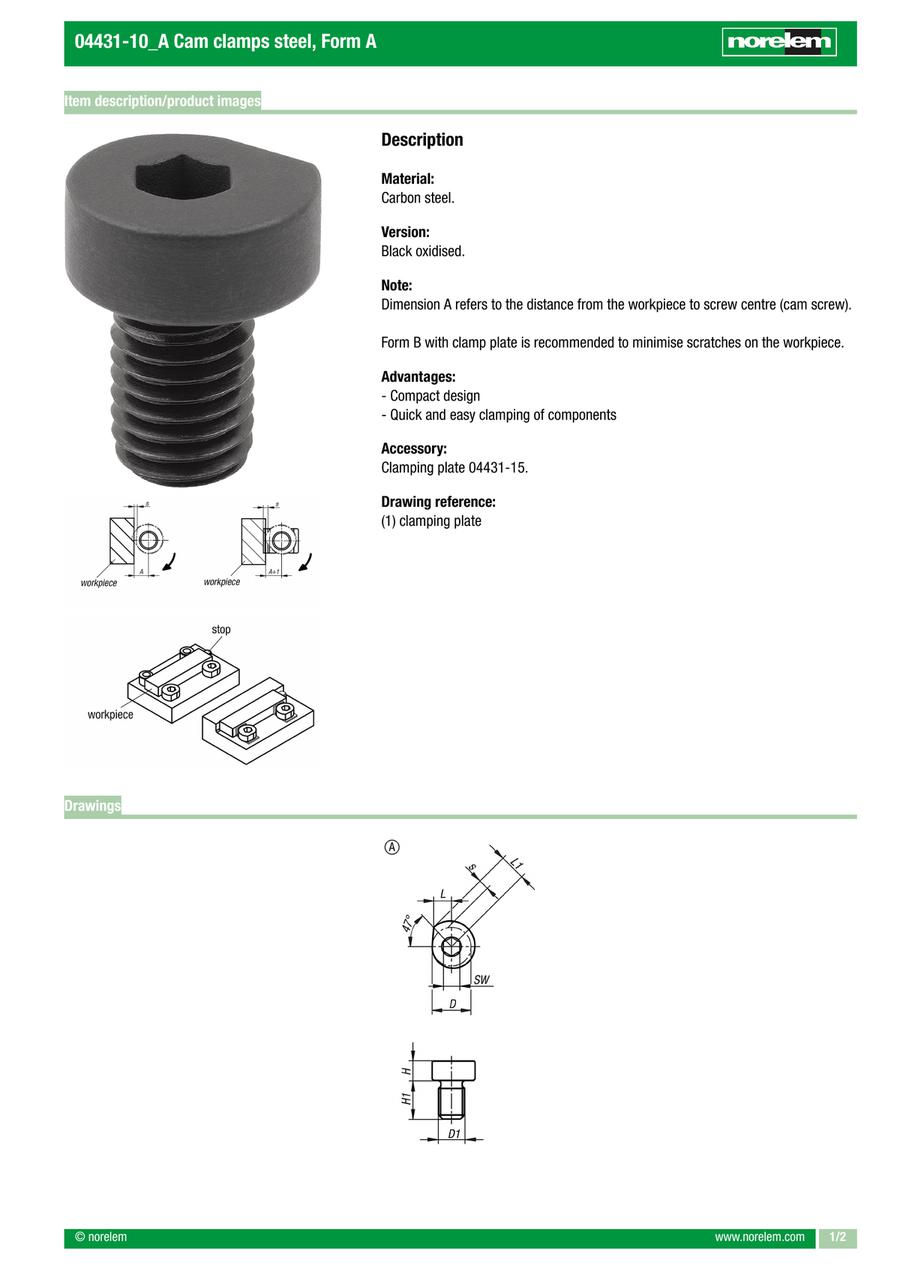

Cam clamps steel, Form A (04431-10)

Cam clamps steel, Form A (04431-10)

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04431-10-060
    04431-10-080
    04431-10-100
    04431-10-120

    A

    (mm)

    D=diameter

    (mm)

    D1=Thread

    H=Height

    (mm)

    H1

    (mm)

    L=Length

    (mm)

    L1

    (mm)

    Travel S

    (mm)

    SW=key width

    (mm)

    Tightening torque max.

    (Nm)

    Clamping force

    (kN)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    5.9
    10
    M6
    5
    9
    5
    6.8
    1.8
    4
    7.4
    2.2
    0.0060
    1 pieces
    7.1
    12
    M8
    6
    12
    6
    8.2
    2.2
    5
    18
    4.7
    0.0110
    1 pieces
    8.3
    14
    M10
    7
    15
    7
    9.5
    2.5
    6
    35
    7.9
    0.0190
    1 pieces
    9.5
    16
    M12
    8
    18
    8
    10.9
    2.9
    8
    60
    14
    0.0300
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    21.46 €
    ( 25.54 € )
    4 working days
    22.99 €
    ( 27.36 € )
    4 working days
    24.12 €
    ( 28.70 € )
    4 working days
    25.25 €
    ( 30.05 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Compact design

    · Quick and easy clamping of components
