NORELEM

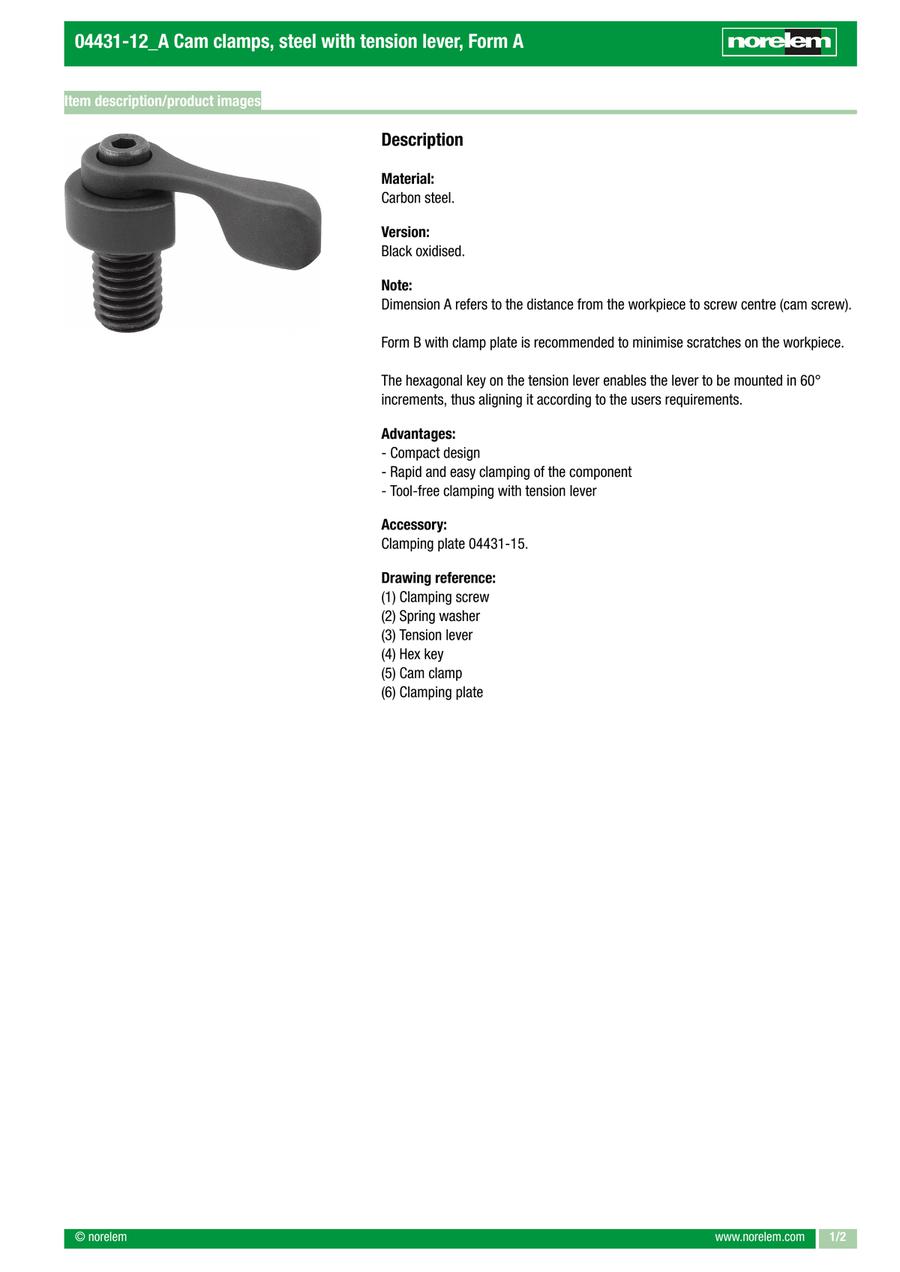

Cam clamps, steel with tension lever, Form A (04431-12)

Cam clamps, steel with tension lever, Form A (04431-12)

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04431-12-080
    04431-12-100
    04431-12-120

    A

    (mm)

    D=diameter

    (mm)

    D1=Thread

    D2

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    H2

    (mm)

    H3

    (mm)

    H4

    (mm)

    L=Length

    (mm)

    L1

    (mm)

    R

    (mm)

    Travel S

    (mm)

    SW=key width

    (mm)

    Clamping force

    (kN)

    Recommended tightening torque

    (Nm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    7.1
    12
    M8
    10
    6
    12
    9
    1.5
    8.5
    6
    8.2
    25
    2.2
    2.5
    0.3
    1.2
    0.0158
    1 pieces
    8.3
    14
    M10
    12
    7
    15
    11
    1.8
    10
    7
    9.5
    30
    2.5
    3
    0.5
    3
    0.0300
    1 pieces
    9.5
    16
    M12
    14
    8
    18
    13
    2.2
    12
    8
    10.9
    40
    2.9
    5.5
    0.7
    6
    0.0510
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    41.36 €
    ( 49.22 € )
    4 working days
    42.50 €
    ( 50.58 € )
    4 working days
    43.64 €
    ( 51.93 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Compact design

    · Quick and easy clamping of components

    · Tool-free clamping with tension lever
