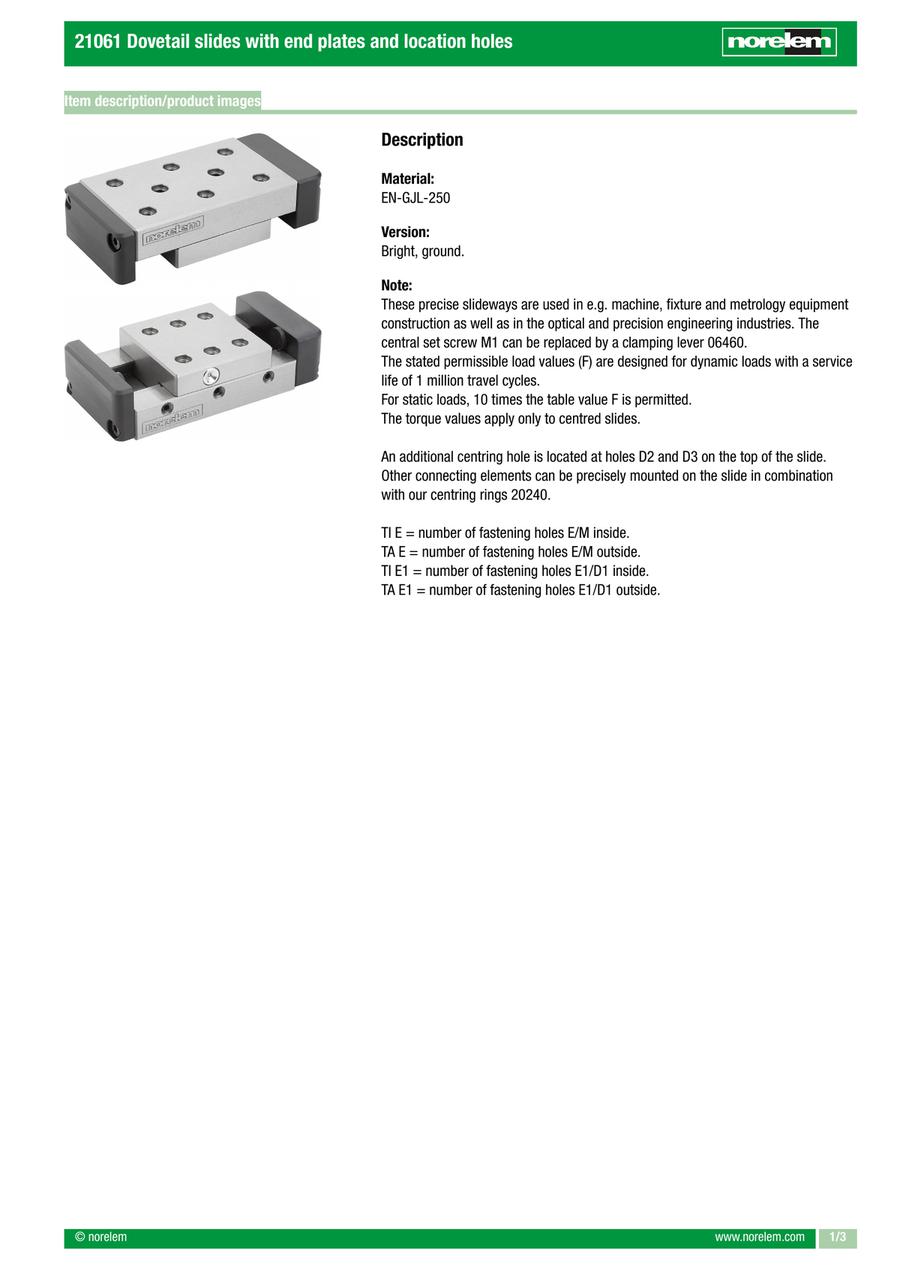

Dovetail slide with end stop, grey cast iron (21061)
· Service life of over 1 million lifting operations
· Different sizes with strokes from 29 to 108 mm
· All outer faces are ground
· Centring holes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 21061-050080 |
| 21061-050105 |
| 21061-050180 |
| 21061-050205 |
| 21061-075105 |
| 21061-075130 |
| 21061-075155 |
| 21061-075180 |
| 21061-100135 |
| 21061-100160 |
| 21061-100260 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | F (N) | My (Nm) | B=Width | E | C | B1 | Mx (Nm) | A | Mz (Nm) | L=plate length | M | L1 | O | E1 | D4 | TA E1 | L2 | T1 | T2 | E2 | D1 | D2 | A1 | M2 | M1 | D3 | P1 | P | L3 | A2 | E3 | TI E | TA E | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
413.16 € | 1 | 4 Days | 110 | 6 | 50 | - | 29 | 49.5 | 2 | 25 | 2 | 80 | - | 48 | 15.5 | 14 | 8.2 | 6 | 40 | 0.02 | 0.02 | 28 | 7 | M4 | 15 | M4 | M5 | 4.3 | 3.2 | 1.6 | 5.5 | 17.5 | 28 | - | - | 0.6471 | ||
438.81 € | 1 | 4 Days | 60 | 6 | 50 | - | 54 | 49.5 | 2 | 25 | 2 | 105 | - | 48 | 15.5 | 14 | 8.2 | 8 | 40 | 0.02 | 0.02 | 28 | 7 | M4 | 15 | M4 | M5 | 4.3 | 3.2 | 1.6 | 5.5 | 17.5 | 28 | - | - | 0.7751 | ||
561.00 € | 1 | 4 Days | 120 | 9 | 50 | - | 77 | 49.5 | 4 | 25 | 4 | 180 | - | 100 | 15.5 | 28 | 8.2 | 12 | 40 | 0.025 | 0.025 | 28 | 7 | M4 | 15 | M4 | M5 | 4.3 | 3.2 | 1.6 | 5.5 | 17.5 | 28 | - | - | 1.3900 | ||
621.50 € | 1 | 4 Days | 110 | 9 | 50 | 28 | 102 | 49.5 | 4 | 25 | 4 | 205 | M4 | 100 | 15.5 | 28 | 8.2 | 12 | 40 | 0.03 | 0.03 | 28 | 7 | M4 | 15 | M4 | M5 | 4.3 | 3.2 | 1.6 | 5.5 | 17.5 | 28 | 4 | - | 1.4800 | ||
530.91 € | 1 | 4 Days | 290 | 19 | 75 | 62 | 27 | 74.5 | 5 | 32 | 6 | 105 | M5 | 75 | 16 | 25 | 10 | 6 | 60 | 0.02 | 0.02 | 25 | 10 | M5 | 19.5 | M5 | M5 | 5.3 | 3.6 | 2.1 | 5.5 | 22 | 50 | 4 | 4 | 1.6700 | ||
554.42 € | 1 | 4 Days | 165 | 19 | 75 | 62 | 52 | 74.5 | 5 | 32 | 6 | 130 | M5 | 75 | 16 | 25 | 10 | 10 | 60 | 0.025 | 0.025 | 25 | 10 | M5 | 19.5 | M5 | M5 | 5.3 | 3.6 | 2.1 | 5.5 | 22 | 50 | 4 | 4 | 1.8500 | ||
609.33 € | 1 | 4 Days | 110 | 19 | 75 | 62 | 77 | 74.5 | 5 | 32 | 6 | 155 | M5 | 75 | 16 | 25 | 10 | 10 | 60 | 0.025 | 0.025 | 25 | 10 | M5 | 19.5 | M5 | M5 | 5.3 | 3.6 | 2.1 | 5.5 | 22 | 50 | 4 | 4 | 2.1000 | ||
718.80 € | 1 | 4 Days | 190 | 19 | 75 | 62 | 72 | 74.5 | 5 | 32 | 6 | 180 | M5 | 105 | 16 | 25 | 10 | 14 | 60 | 0.025 | 0.025 | 25 | 10 | M5 | 19.5 | M5 | M5 | 5.3 | 3.6 | 2.1 | 5.5 | 22 | 50 | 4 | 4 | 1.0000 | ||
667.88 € | 1 | 4 Days | 590 | 43 | 100 | 86 | 32 | 99.5 | 11 | 40 | 12 | 135 | M6 | 100 | 16 | 25 | 10.2 | 6 | 88 | 0.025 | 0.025 | 50 | 10 | M5 | 24 | M6 | M6 | 5.3 | 3.8 | 2.1 | 8 | 28 | 50 | 4 | 4 | 3.5700 | ||
717.12 € | 1 | 4 Days | 350 | 43 | 100 | 86 | 57 | 99.5 | 11 | 40 | 12 | 160 | M6 | 100 | 16 | 25 | 10.2 | 6 | 88 | 0.025 | 0.025 | 50 | 10 | M5 | 24 | M6 | M6 | 5.3 | 3.8 | 2.1 | 8 | 28 | 50 | 4 | 4 | 3.8800 | ||
963.27 € | 1 | 4 Days | 400 | 63 | 100 | 86 | 108 | 99.5 | 23 | 40 | 26 | 260 | M6 | 149 | 16 | 50 | 10.2 | 10 | 88 | 0.03 | 0.03 | 50 | 10 | M5 | 24 | M6 | M6 | 5.3 | 3.8 | 2.1 | 8 | 28 | 50 | 4 | 6 | 5.9700 |
Loading...
Basic information
| Main material | grey cast iron | Item | Dovetail Slide | R | 8 |
|---|---|---|---|---|---|
| Version 1 | with end stop | TI E1 | 6 | RoHS | true |
Configure
Basic Attributes
-
F(N)
-
My(Nm)
-
B=Width
- 50
- 75
- 100
-
E
- 28
- 62
- 86
-
C
-
B1
- 49.5
- 74.5
- 99.5
-
Mx(Nm)
-
A
- 25
- 32
- 40
-
Mz(Nm)
-
L=plate length
-
M
- M4
- M5
- M6
-
L1
-
O
-
E1
- 14
- 25
- 28
- 50
-
D4
- 8.2
- 10
- 10.2
-
TA E1
- 6
- 8
- 10
- 12
- 14
-
L2
- 40
- 60
- 88
-
T1
- 0.02
- 0.025
- 0.03
-
T2
- 0.02
- 0.025
- 0.03
-
E2
- 25
- 28
- 50
-
D1
- 7
- 10
-
D2
- M4
- M5
-
A1
- 15
- 19.5
- 24
-
M2
- M4
- M5
- M6
-
M1
- M5
- M6
-
D3
- 4.3
- 5.3
-
P1
- 3.2
- 3.6
- 3.8
-
P
- 1.6
- 2.1
-
L3
- 5.5
- 8
-
A2
- 17.5
- 22
- 28
-
E3
- 28
- 50
-
TI E
- 4
-
TA E
- 4
- 6
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
