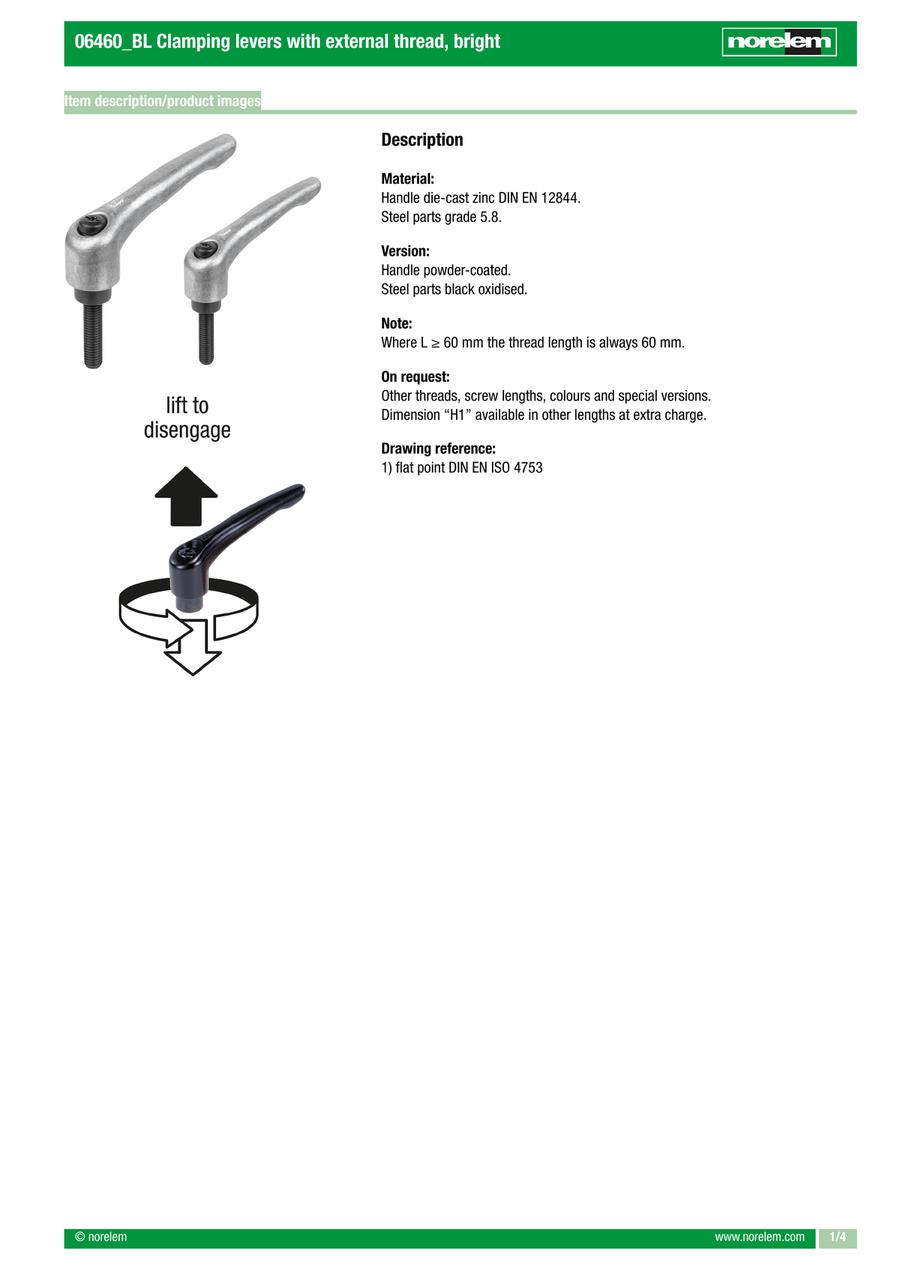

Clamping lever with external thread, zinc bright (06460)
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
· Different thread sizes and handle lengths
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle length (mm) | H | B | D | Size | X=thread | D1 (mm) | No. of teeth | A1=Handle length | D2 | H1 | H2 | H3=handle height | H4 | L=thread length | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M3 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 6 | 0.0280 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M3 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 10 | 0.0300 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M3 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 15 | 0.0320 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M3 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 20 | 0.0330 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 10 | 0.0320 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 15 | 0.0324 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 20 | 0.0327 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 25 | 0.0328 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 30 | 0.0343 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 35 | 0.0308 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 40 | 0.0353 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 45 | 0.0348 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M4 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 50 | 0.0349 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 10 | 0.0324 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 15 | 0.0331 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 20 | 0.0345 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 25 | 0.0342 | ||
6.36 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 30 | 0.0349 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 35 | 0.0354 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 40 | 0.0363 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 45 | 0.0377 | ||
6.89 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | M5 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 50 | 0.0373 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 10 | 0.0356 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 15 | 0.0361 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 20 | 0.0366 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 25 | 0.0374 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 30 | 0.0379 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 35 | 0.0388 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 40 | 0.0390 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 45 | 0.0398 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M5 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 50 | 0.0410 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 10 | 0.0360 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 15 | 0.0368 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 20 | 0.0379 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 25 | 0.0387 | ||
6.36 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 30 | 0.0395 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 35 | 0.0402 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 40 | 0.0420 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 45 | 0.0419 | ||
6.89 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | M6 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 50 | 0.0428 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0883 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0882 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0902 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0908 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 35 | 0.0918 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0922 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 45 | 0.0941 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0947 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 55 | 0.0959 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M6 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0957 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0893 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0912 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0928 | ||
7.98 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0950 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 35 | 0.0965 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0982 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 45 | 0.0997 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.1011 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 55 | 0.1026 | ||
8.50 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | M8 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.1045 |
Loading...
Basic information
| Main material | Zinc | Surface finish body | bright | Component material | Steel |
|---|---|---|---|---|---|
| Surface finish component | black oxidised | Item | Clamping Lever | Thread type | external thread |
| RoHS | yes | PL Edelstahl | no |
Configure
Basic Attributes
-
Handle length(mm)
-
H
-
B
-
D
-
Size
-
X=thread
-
D1(mm)
-
No. of teeth
-
A1=Handle length
-
D2
-
H1
-
H2
-
H3=handle height
-
H4
-
L=thread length
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
