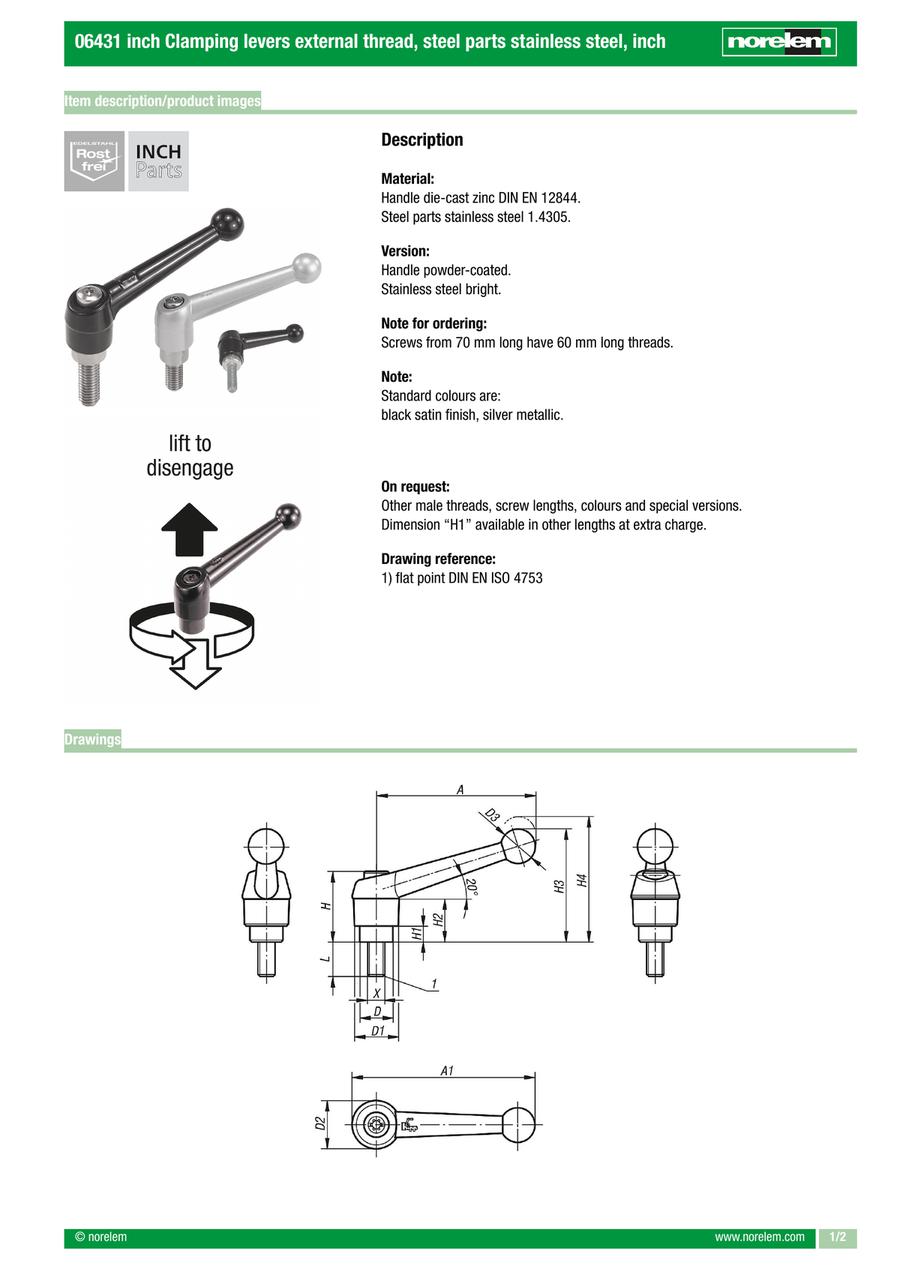

Clamping lever, zinc, inch (06431)
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
· Colour: black satin finish or silver metallic
· Different thread sizes and handle lengths
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle length (mm) | H | D | Main colour | Size | X=thread | D1 (mm) | No. of teeth | A1 | D2 | D3 | H1 | H2 | H3=handle height | H4 | L=thread length | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 10-24 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 15 | 0.0300 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 10-24 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 20 | 0.0310 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 10-24 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 25 | 0.0340 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 10-24 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 15 | 0.0318 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 10-24 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 20 | 0.0330 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 10-24 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 25 | 0.0330 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 10-32 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 15 | 0.0340 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 10-32 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 20 | 0.0317 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 10-32 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 25 | 0.0323 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 10-32 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 15 | 0.0318 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 10-32 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 20 | 0.0330 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 10-32 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 25 | 0.0330 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 10 | 0.0310 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 15 | 0.0320 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 20 | 0.0360 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 25 | 0.0350 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 30 | 0.0360 | ||
14.28 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 40 | 0.0370 | ||
14.28 € | 1 | 4 Days | 39 | 24.5 | 10 | black | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 50 | 0.0388 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 10 | 0.0330 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 15 | 0.0333 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 20 | 0.0342 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 25 | 0.0351 | ||
13.26 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 30 | 0.0351 | ||
14.28 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 40 | 0.0383 | ||
14.28 € | 1 | 4 Days | 39 | 24.5 | 10 | silver metallic | 1 | 1/4-20 | 13 | 16 | 46 | 14 | 10.5 | 4 | 15 | 32.5 | 35.5 | 50 | 0.0400 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 15 | 0.0827 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 20 | 0.0820 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 25 | 0.0820 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 30 | 0.0820 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 40 | 0.0842 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 50 | 0.0896 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 60 | 0.0920 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 15 | 0.0795 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 20 | 0.0839 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 25 | 0.0796 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 30 | 0.0822 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 40 | 0.0841 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 50 | 0.0123 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 1/4-20 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 60 | 0.0852 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 15 | 0.0840 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 20 | 0.0820 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 25 | 0.0870 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 30 | 0.0890 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 40 | 0.0890 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 50 | 0.0950 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 60 | 0.0950 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 15 | 0.0828 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 20 | 0.0840 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 25 | 0.0855 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 30 | 0.0883 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 40 | 0.0903 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 50 | 0.0950 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | silver metallic | 2 | 5/16-18 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 60 | 0.0980 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 3/8-16 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 20 | 0.0859 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 3/8-16 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 25 | 0.0870 | ||
16.45 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 3/8-16 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 30 | 0.0890 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 3/8-16 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 40 | 0.0990 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 3/8-16 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 50 | 0.0950 | ||
17.68 € | 1 | 4 Days | 64 | 28.5 | 13.5 | black | 2 | 3/8-16 | 18 | 20 | 73 | 18.5 | 15.5 | 6.5 | 16.5 | 45.5 | 49.5 | 60 | 0.0980 |
Loading...
Basic information
| Main material | Zinc | Component material | Stainless steel | Item | Clamping Lever |
|---|---|---|---|---|---|
| Thread type | external thread | RoHS | yes |
Configure
Basic Attributes
-
Handle length(mm)
-
H
-
D
-
Main colour
-
Size
-
X=thread
-
D1(mm)
-
No. of teeth
-
A1
-
D2
-
D3
-
H1
-
H2
-
H3=handle height
-
H4
-
L=thread length
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
