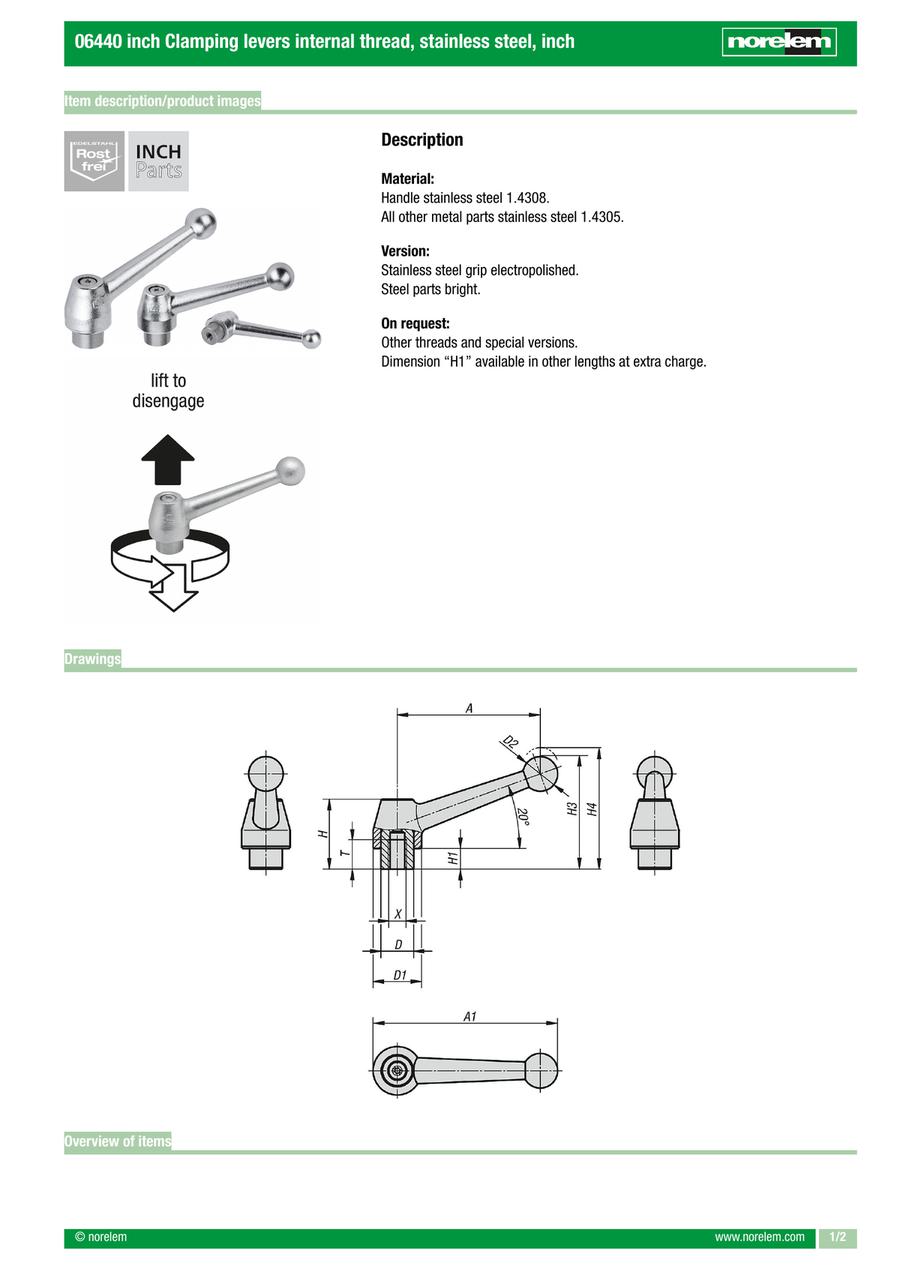

Clamping lever, stainless steel, electropolished, inch (06440)
· The KIPP clamping lever stands for reliability, stability and versatility
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors
· Material: stainless steel, electropolished, corrosion resistant
· Different thread sizes and handle lengths
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors
· Material: stainless steel, electropolished, corrosion resistant
· Different thread sizes and handle lengths
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06440-11A3 |
| 06440-11A4 |
| 06440-11A5 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | X=thread | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|
56.97 € | 1 | 4 Days | 5/16-18 | 0.2305 | ||
56.97 € | 1 | 4 Days | 3/8-16 | 0.3508 | ||
56.97 € | 1 | 4 Days | 1/2-13 | 0.3211 |
Loading...
Basic information
| Handle length(mm) | 83 | H | 40.5 | D | 19 |
|---|---|---|---|---|---|
| Main material | Stainless steel | Main colour | electropolished | Component material | Stainless steel |
| Size | 1 | D1(mm) | 28 | No. of teeth | 24 |
| A1 | 107 | D2 | 20 | H1 | 12 |
| H3=handle height | 65 | H4 | 68.5 | Item | Clamping Lever |
| T=thread depth | 17 | Thread type | internal thread | RoHS | yes |
| PL Edelstahl | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
