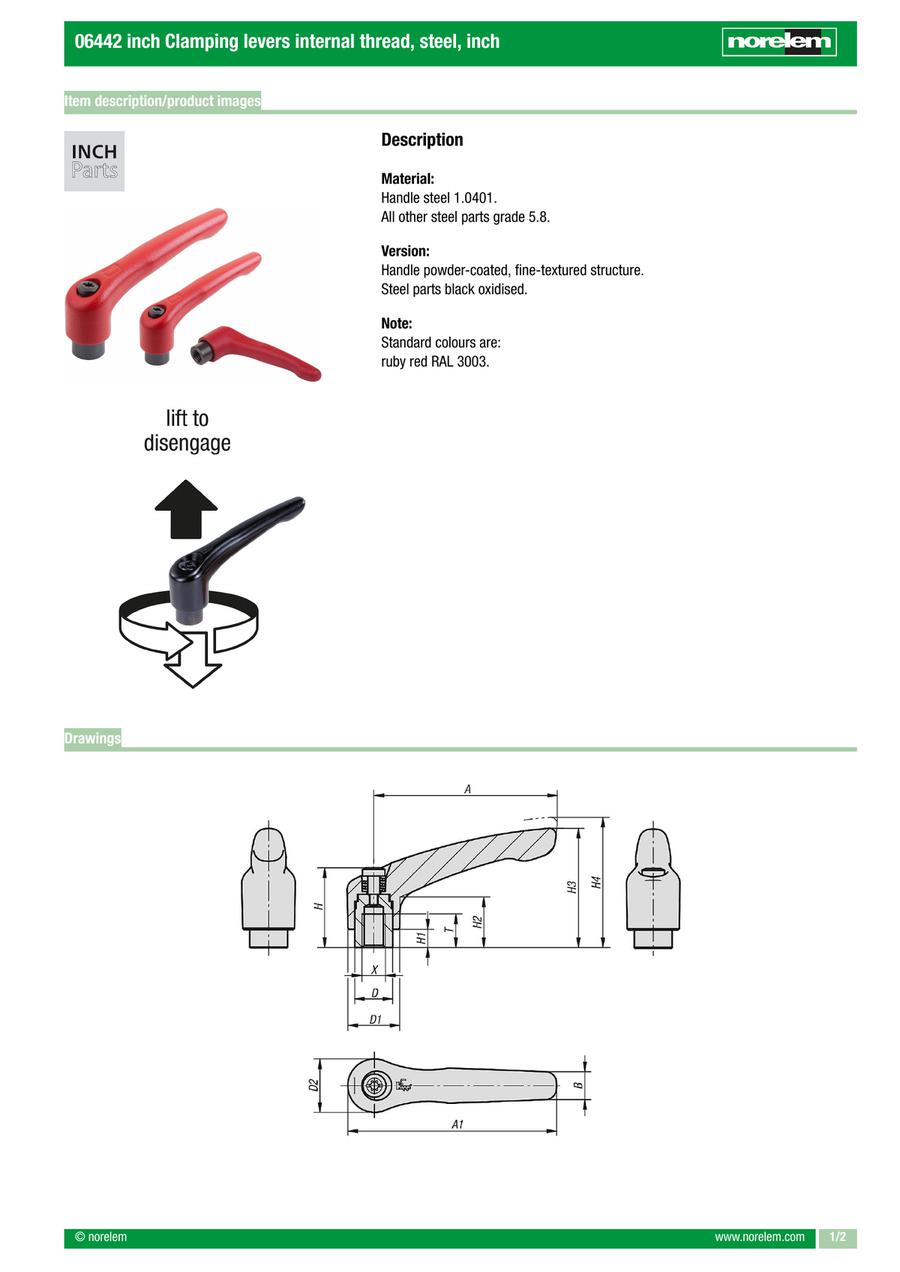

Clamping lever internal thread, steel, inch (06442)
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
· Advantage: high robustness and strength due to the steel material
· Different thread sizes and handle lengths
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06442-1A027 |
| 06442-1A127 |
| 06442-1A227 |
| 06442-1AE27 |
| 06442-2A227 |
| 06442-2A327 |
| 06442-3A327 |
| 06442-3A427 |
| 06442-4A427 |
| 06442-4A527 |
| 06442-5A527 |
| 06442-5A627 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle length (mm) | H | B | D | Size | X=thread | D1 (mm) | No. of teeth | A1 | D2 | H1 | H2 | H3=handle height | H4 | T=thread depth | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12.60 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | 10-24 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 9 | 0.0380 | ||
12.60 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | 10-32 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 9 | 0.0369 | ||
12.60 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | 1/4-20 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 9 | 0.0900 | ||
12.60 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | 8-32 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 9 | 0.0379 | ||
16.99 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 12 | 0.0920 | ||
16.99 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | 5/16-18 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 12 | 0.1504 | ||
20.34 € | 1 | 4 Days | 80 | 37 | 11 | 16 | 3 | 5/16-18 | 21 | 22 | 91 | 22 | 10 | 24 | 54.5 | 58.5 | 14 | 0.1456 | ||
20.34 € | 1 | 4 Days | 80 | 37 | 11 | 16 | 3 | 3/8-16 | 21 | 22 | 91 | 22 | 10 | 24 | 54.5 | 58.5 | 14 | 0.2550 | ||
26.19 € | 1 | 4 Days | 95 | 43 | 13 | 19 | 4 | 3/8-16 | 27 | 24 | 109 | 27.5 | 10 | 27 | 63 | 67.5 | 17 | 0.2569 | ||
26.19 € | 1 | 4 Days | 95 | 43 | 13 | 19 | 4 | 1/2-13 | 27 | 24 | 109 | 27.5 | 10 | 27 | 63 | 67.5 | 17 | 0.2600 | ||
41.33 € | 1 | 4 Days | 110 | 49 | 15 | 23 | 5 | 1/2-13 | 31 | 26 | 126 | 32 | 12 | 31.5 | 73 | 77.5 | 23 | 0.3990 | ||
41.33 € | 1 | 4 Days | 110 | 49 | 15 | 23 | 5 | 5/8-11 | 31 | 26 | 126 | 32 | 12 | 31.5 | 73 | 77.5 | 23 | 0.3775 |
Loading...
Basic information
| Main material | Steel | Surface finish body | satin finish | Main colour | ruby red RAL3003 |
|---|---|---|---|---|---|
| Component material | Steel | Surface finish component | black oxidised | Item | Clamping Lever |
| Thread type | internal thread | RoHS | yes |
