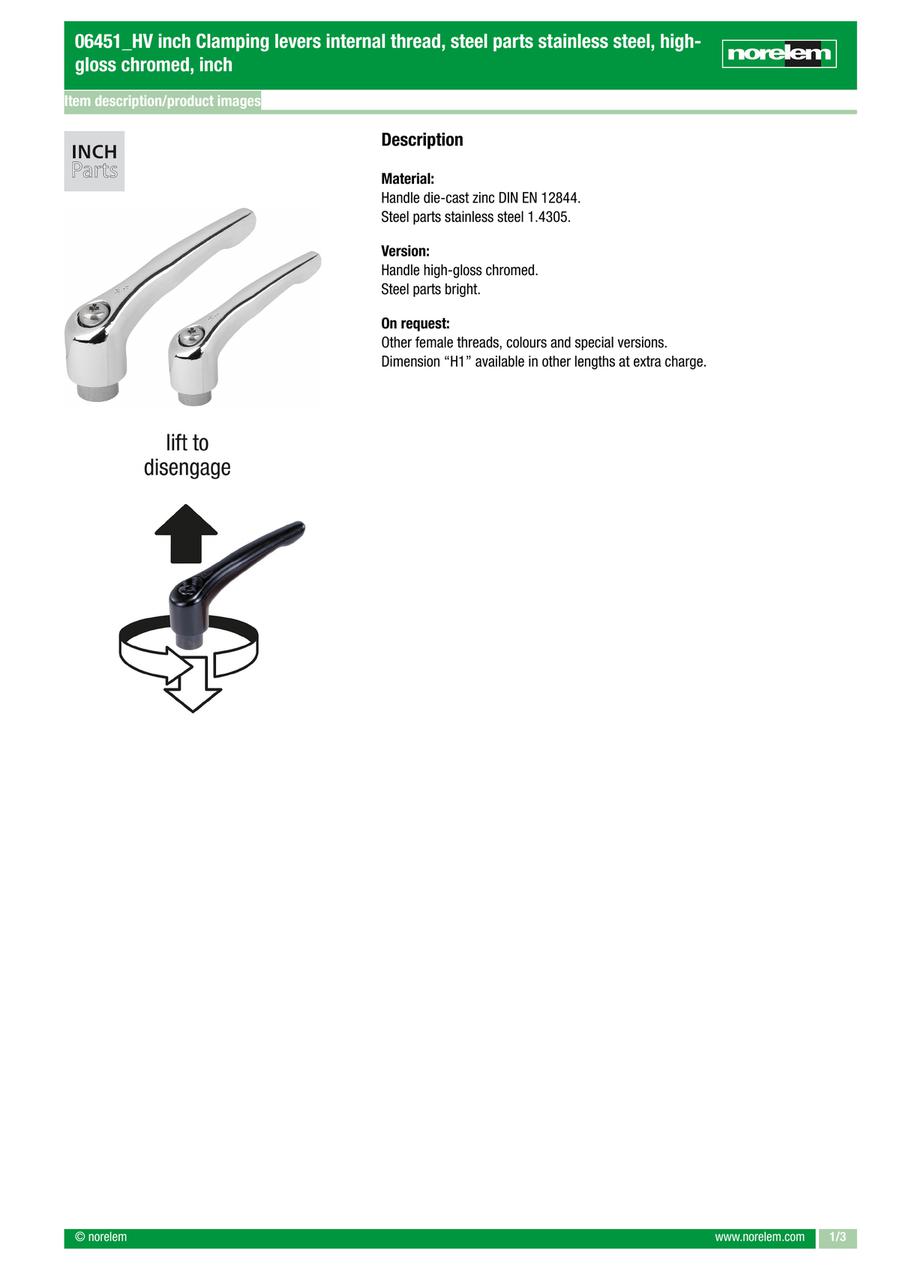

Clamping lever, zinc silver high-gloss chromed, inch (06451)
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
· Different thread sizes and handle lengths
· Different thread sizes and handle lengths
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06451-0A06 |
| 06451-0A16 |
| 06451-0A26 |
| 06451-0AD6 |
| 06451-0AE6 |
| 06451-1A06 |
| 06451-1A16 |
| 06451-1A26 |
| 06451-2A26 |
| 06451-2A36 |
| 06451-3A36 |
| 06451-3A46 |
| 06451-4A46 |
| 06451-4A56 |
| 06451-5A56 |
| 06451-5A66 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle length (mm) | H | B | D | Size | X=thread | D1 (mm) | No. of teeth | A1=Handle length | D2 | H1 | H2 | H3=handle height | H4 | T=thread depth | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14.66 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | 10-24 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 9 | 0.0360 | ||
14.66 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | 10-32 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 9 | 0.0360 | ||
14.66 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | 1/4-20 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 9 | 0.0360 | ||
14.66 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | 6-32 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 9 | 0.0360 | ||
14.66 € | 1 | 4 Days | 30 | 24.5 | 7 | 10 | 0 | 8-32 | 13 | 16 | 37 | 14 | 4 | 14.5 | 30 | 33 | 9 | 0.0360 | ||
14.66 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | 10-24 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 9 | 0.0306 | ||
14.66 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | 10-32 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 9 | 0.0306 | ||
14.66 € | 1 | 4 Days | 40 | 24.5 | 7 | 10 | 1 | 1/4-20 | 13 | 16 | 47 | 14 | 4 | 14.5 | 31 | 34 | 9 | 0.0325 | ||
18.17 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 12 | 0.0783 | ||
18.17 € | 1 | 4 Days | 65 | 28.5 | 9.5 | 13.5 | 2 | 5/16-18 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 12 | 0.0804 | ||
20.62 € | 1 | 4 Days | 80 | 37 | 11 | 16 | 3 | 5/16-18 | 21 | 22 | 91 | 22 | 10 | 24 | 54.5 | 58.5 | 14 | 0.1347 | ||
20.62 € | 1 | 4 Days | 80 | 37 | 11 | 16 | 3 | 3/8-16 | 21 | 22 | 91 | 22 | 10 | 24 | 54.5 | 58.5 | 14 | 0.1283 | ||
27.70 € | 1 | 4 Days | 95 | 43 | 13 | 19 | 4 | 3/8-16 | 27 | 24 | 109 | 27.5 | 10 | 27 | 63 | 67.5 | 17 | 0.2075 | ||
27.70 € | 1 | 4 Days | 95 | 43 | 13 | 19 | 4 | 1/2-13 | 27 | 24 | 109 | 27.5 | 10 | 27 | 63 | 67.5 | 17 | 0.2014 | ||
34.33 € | 1 | 4 Days | 110 | 49 | 15 | 23 | 5 | 1/2-13 | 31 | 26 | 126 | 32 | 12 | 31.5 | 73 | 77.5 | 23 | 0.3127 | ||
34.33 € | 1 | 4 Days | 110 | 49 | 15 | 23 | 5 | 5/8-11 | 31 | 26 | 126 | 32 | 12 | 31.5 | 73 | 77.5 | 23 | 0.3068 |
Loading...
Basic information
| Main material | Zinc | Surface finish body | high-gloss chromed | Main colour | silver |
|---|---|---|---|---|---|
| Component material | Stainless steel | Surface finish component | bright | Item | Clamping Lever |
| Thread type | internal thread | RoHS | yes |
Configure
Basic Attributes
-
Handle length(mm)
-
H
-
B
-
D
-
Size
-
X=thread
-
D1(mm)
-
No. of teeth
-
A1=Handle length
-
D2
-
H1
-
H2
-
H3=handle height
-
H4
-
T=thread depth
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
