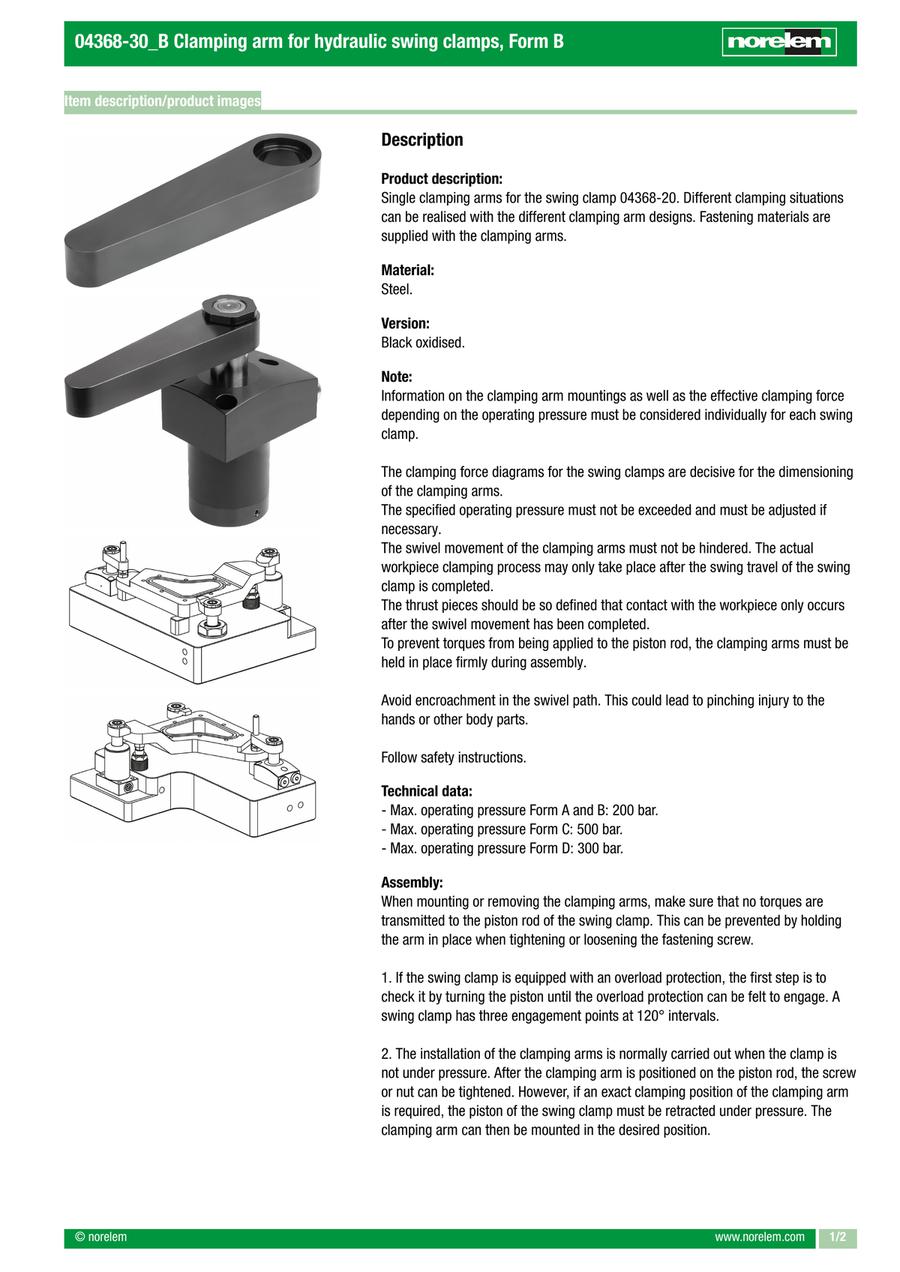

Clamping arm for swing clamp, form B (04368)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 04368-30-25501 |
| 04368-30-40751 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L | H | D | L2 | D1 (mm) | For piston Ø | L1 | R | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
33.24 € | 1 | 4 Days | 75 | 16 | 20 | 16 | 16 | 25 | 50 | 16 | 0.1800 | ||
42.24 € | 1 | 4 Days | 115 | 23 | 32 | 25 | 25 | 40 | 75 | 25 | 0.6500 |
Loading...
Basic information
| Main material | Steel | Surface finish body | black oxidised | Form | B |
|---|---|---|---|---|---|
| Form definition | without thread | Item | Clamping Arm | Version 1 | for swing clamp |
| Version 2 | hydraulic | RoHS | yes | PL Edelstahl | no |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
