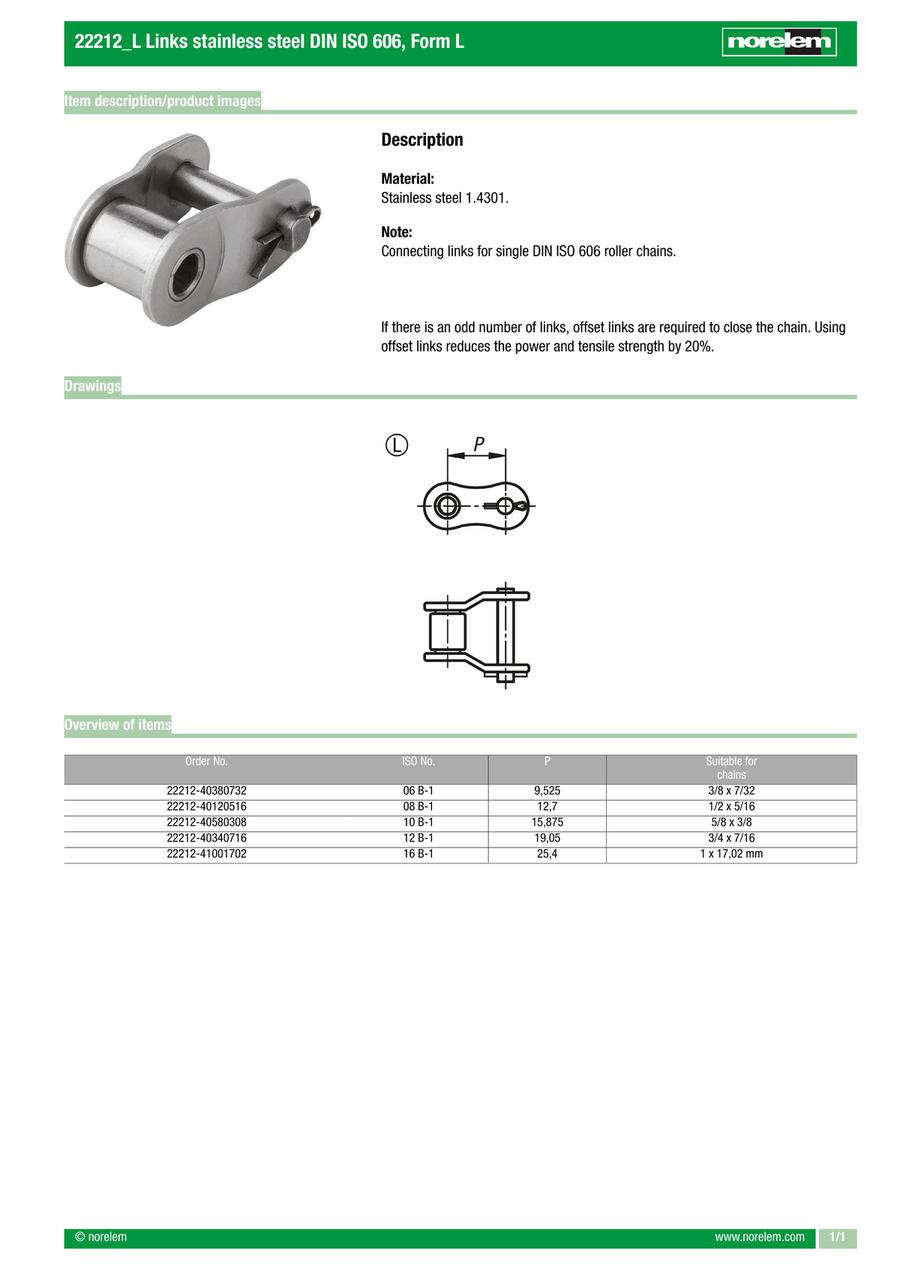

Link, form L offset link with split pin, stainless steel (22212)
· Suitable for single roller chains DIN ISO 606
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 22212-40120516 |
| 22212-40340716 |
| 22212-40380732 |
| 22212-40580308 |
| 22212-41001702 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | P | ISO No. | Suitable for chains | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|
5.44 € | 1 | 4 Days | 12.7 | 08 B-1 | 1/2 x 5/16 | 0.0095 | ||
11.99 € | 1 | 4 Days | 19.05 | 12 B-1 | 3/4 x 7/16 | 0.0248 | ||
5.12 € | 1 | 4 Days | 9.525 | 06 B-1 | 3/8 x 7/32 | 0.0045 | ||
7.47 € | 1 | 4 Days | 15.875 | 10 B-1 | 5/8 x 3/8 | 0.0162 | ||
20.07 € | 1 | 4 Days | 25.4 | 16 B-1 | 1 x 17.02 mm | 0.0714 |
Loading...
Basic information
| Version 1 | 1x | Main material | stainless steel | Item | Link |
|---|---|---|---|---|---|
| DIN ISO | DIN ISO 606 | Form | L | Form definition | Connecting link with spring clip |
| RoHS | yes | PL Edelstahl | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
