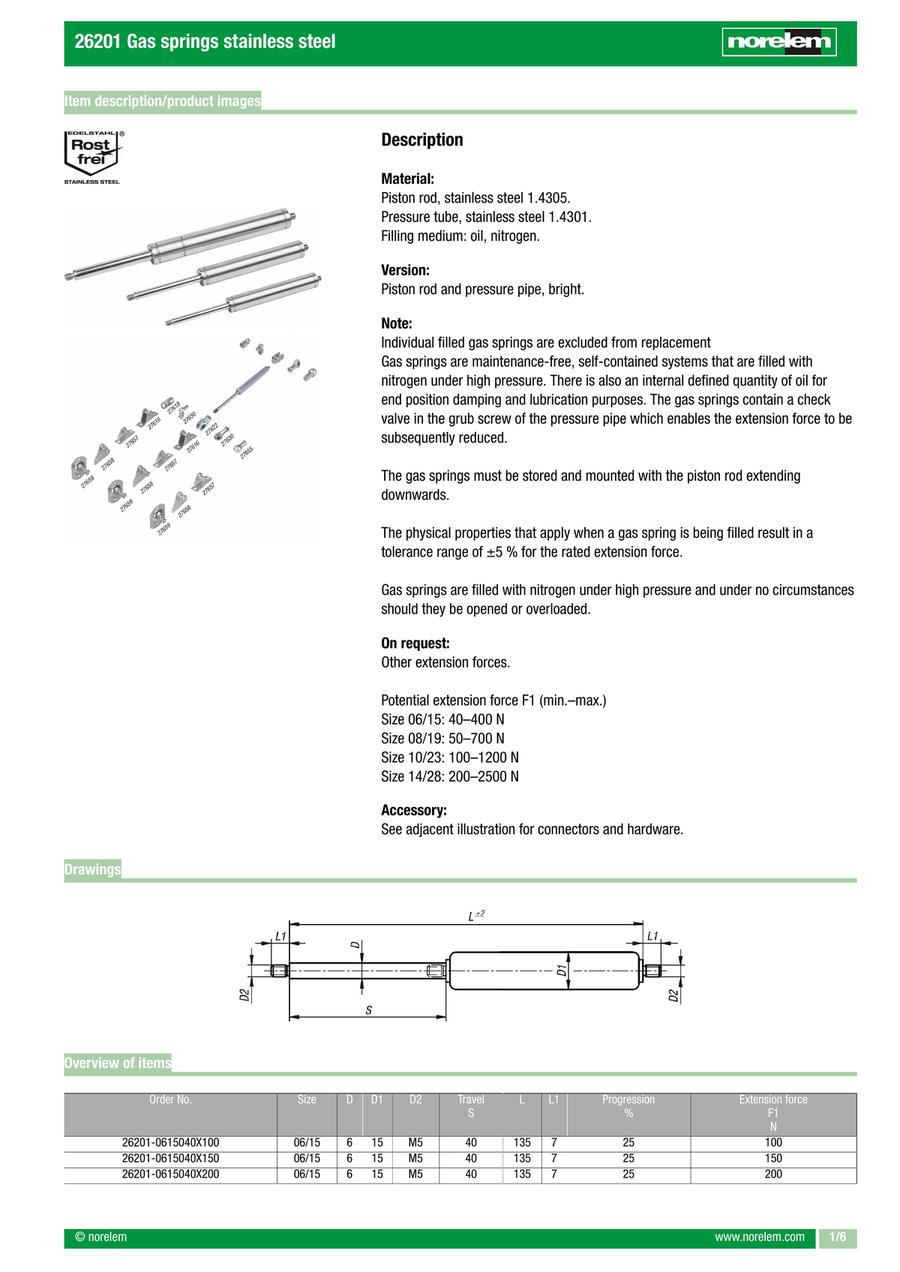

Gas spring, stainless steel (26201)
· Individually fillable
· Suitable for use in the foodstuff industry
· Retroactive reduction of filling force through check valve
· Maintenance-free
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L | D1=Housing diameter | D=shaft diameter | F1=Push out force (N) | L1 | D2 | Progression (%) | Size | Travel S | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
95.40 € | 1 | 4 Days | 135 | 15 | 6 | 100 | 7 | M5 | 25 | 06/15 | 40 | 0.1000 | ||
95.40 € | 1 | 4 Days | 135 | 15 | 6 | 150 | 7 | M5 | 25 | 06/15 | 40 | 0.1000 | ||
95.40 € | 1 | 4 Days | 135 | 15 | 6 | 200 | 7 | M5 | 25 | 06/15 | 40 | 0.0742 | ||
95.40 € | 1 | 4 Days | 135 | 15 | 6 | 250 | 7 | M5 | 25 | 06/15 | 40 | 0.1000 | ||
95.40 € | 1 | 4 Days | 135 | 15 | 6 | 300 | 7 | M5 | 25 | 06/15 | 40 | 0.0744 | ||
95.40 € | 1 | 4 Days | 135 | 15 | 6 | 350 | 7 | M5 | 25 | 06/15 | 40 | 0.1000 | ||
95.40 € | 1 | 4 Days | 135 | 15 | 6 | 400 | 7 | M5 | 25 | 06/15 | 40 | 0.1000 | ||
95.40 € | 1 | 4 Days | 155 | 15 | 6 | 100 | 7 | M5 | 25 | 06/15 | 50 | 0.1000 | ||
95.40 € | 1 | 4 Days | 155 | 15 | 6 | 150 | 7 | M5 | 25 | 06/15 | 50 | 0.1000 | ||
95.40 € | 1 | 4 Days | 155 | 15 | 6 | 200 | 7 | M5 | 25 | 06/15 | 50 | 0.1000 | ||
95.40 € | 1 | 4 Days | 155 | 15 | 6 | 250 | 7 | M5 | 25 | 06/15 | 50 | 0.1000 | ||
95.40 € | 1 | 4 Days | 155 | 15 | 6 | 300 | 7 | M5 | 25 | 06/15 | 50 | 0.1000 | ||
95.40 € | 1 | 4 Days | 155 | 15 | 6 | 350 | 7 | M5 | 25 | 06/15 | 50 | 0.1000 | ||
95.40 € | 1 | 4 Days | 155 | 15 | 6 | 400 | 7 | M5 | 25 | 06/15 | 50 | 0.1000 | ||
98.97 € | 1 | 4 Days | 175 | 15 | 6 | 100 | 7 | M5 | 25 | 06/15 | 60 | 0.1000 | ||
98.97 € | 1 | 4 Days | 175 | 15 | 6 | 150 | 7 | M5 | 25 | 06/15 | 60 | 0.1000 | ||
98.97 € | 1 | 4 Days | 175 | 15 | 6 | 200 | 7 | M5 | 25 | 06/15 | 60 | 0.1000 | ||
98.97 € | 1 | 4 Days | 175 | 15 | 6 | 250 | 7 | M5 | 25 | 06/15 | 60 | 0.1000 | ||
98.97 € | 1 | 4 Days | 175 | 15 | 6 | 300 | 7 | M5 | 25 | 06/15 | 60 | 0.1000 | ||
98.97 € | 1 | 4 Days | 175 | 15 | 6 | 350 | 7 | M5 | 25 | 06/15 | 60 | 0.1000 | ||
98.97 € | 1 | 4 Days | 175 | 15 | 6 | 400 | 7 | M5 | 25 | 06/15 | 60 | 0.1000 | ||
102.59 € | 1 | 4 Days | 215 | 15 | 6 | 100 | 7 | M5 | 25 | 06/15 | 80 | 0.1000 | ||
102.59 € | 1 | 4 Days | 215 | 15 | 6 | 150 | 7 | M5 | 25 | 06/15 | 80 | 0.1000 | ||
102.59 € | 1 | 4 Days | 215 | 15 | 6 | 200 | 7 | M5 | 25 | 06/15 | 80 | 0.1000 | ||
102.59 € | 1 | 4 Days | 215 | 15 | 6 | 250 | 7 | M5 | 25 | 06/15 | 80 | 0.1000 | ||
102.59 € | 1 | 4 Days | 215 | 15 | 6 | 300 | 7 | M5 | 25 | 06/15 | 80 | 0.1000 | ||
102.59 € | 1 | 4 Days | 215 | 15 | 6 | 350 | 7 | M5 | 25 | 06/15 | 80 | 0.1000 | ||
102.59 € | 1 | 4 Days | 215 | 15 | 6 | 400 | 7 | M5 | 25 | 06/15 | 80 | 0.1000 | ||
102.59 € | 1 | 4 Days | 255 | 15 | 6 | 100 | 7 | M5 | 25 | 06/15 | 100 | 0.1000 | ||
102.59 € | 1 | 4 Days | 255 | 15 | 6 | 150 | 7 | M5 | 25 | 06/15 | 100 | 0.1000 | ||
102.59 € | 1 | 4 Days | 255 | 15 | 6 | 200 | 7 | M5 | 25 | 06/15 | 100 | 0.1000 | ||
102.59 € | 1 | 4 Days | 255 | 15 | 6 | 250 | 7 | M5 | 25 | 06/15 | 100 | 0.1000 | ||
102.59 € | 1 | 4 Days | 255 | 15 | 6 | 300 | 7 | M5 | 25 | 06/15 | 100 | 0.1000 | ||
102.59 € | 1 | 4 Days | 255 | 15 | 6 | 350 | 7 | M5 | 25 | 06/15 | 100 | 0.1000 | ||
102.59 € | 1 | 4 Days | 255 | 15 | 6 | 400 | 7 | M5 | 25 | 06/15 | 100 | 0.1000 | ||
106.41 € | 1 | 4 Days | 295 | 15 | 6 | 100 | 7 | M5 | 25 | 06/15 | 120 | 0.1000 | ||
106.41 € | 1 | 4 Days | 295 | 15 | 6 | 150 | 7 | M5 | 25 | 06/15 | 120 | 0.1000 | ||
106.41 € | 1 | 4 Days | 295 | 15 | 6 | 200 | 7 | M5 | 25 | 06/15 | 120 | 0.1000 | ||
106.41 € | 1 | 4 Days | 295 | 15 | 6 | 250 | 7 | M5 | 25 | 06/15 | 120 | 0.1000 | ||
106.41 € | 1 | 4 Days | 295 | 15 | 6 | 300 | 7 | M5 | 25 | 06/15 | 120 | 0.1000 | ||
106.41 € | 1 | 4 Days | 295 | 15 | 6 | 350 | 7 | M5 | 25 | 06/15 | 120 | 0.1000 | ||
106.41 € | 1 | 4 Days | 295 | 15 | 6 | 400 | 7 | M5 | 25 | 06/15 | 120 | 0.1000 | ||
117.55 € | 1 | 4 Days | 355 | 15 | 6 | 100 | 7 | M5 | 25 | 06/15 | 150 | 0.1000 | ||
117.55 € | 1 | 4 Days | 355 | 15 | 6 | 150 | 7 | M5 | 25 | 06/15 | 150 | 0.1000 | ||
117.55 € | 1 | 4 Days | 355 | 15 | 6 | 200 | 7 | M5 | 25 | 06/15 | 150 | 0.1000 | ||
117.55 € | 1 | 4 Days | 355 | 15 | 6 | 250 | 7 | M5 | 25 | 06/15 | 150 | 0.1000 | ||
117.55 € | 1 | 4 Days | 355 | 15 | 6 | 300 | 7 | M5 | 25 | 06/15 | 150 | 0.1000 | ||
117.55 € | 1 | 4 Days | 355 | 15 | 6 | 350 | 7 | M5 | 25 | 06/15 | 150 | 0.1000 | ||
117.55 € | 1 | 4 Days | 355 | 15 | 6 | 400 | 7 | M5 | 25 | 06/15 | 150 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 100 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 150 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 200 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 250 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 300 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 350 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 400 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 500 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 600 | 10 | M8 | 30 | 08/19 | 60 | 0.1000 | ||
119.29 € | 1 | 4 Days | 190 | 19 | 8 | 700 | 10 | M8 | 30 | 08/19 | 60 | 0.1625 | ||
122.61 € | 1 | 4 Days | 230 | 19 | 8 | 100 | 10 | M8 | 30 | 08/19 | 80 | 0.1000 |
Loading...
Basic information
| Main material | stainless steel | Item | Gas Spring | RoHS | yes |
|---|
Configure
Basic Attributes
-
L
-
D1=Housing diameter
- 15
- 19
- 23
- 28
-
D=shaft diameter
- 6
- 8
- 10
- 14
-
F1=Push out force(N)
-
L1
- 7
- 10
- 12
-
D2
- M5
- M8
- M10
-
Progression(%)
- 25
- 30
- 40
-
Size
- 06/15
- 08/19
- 10/23
- 14/28
-
Travel S
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
