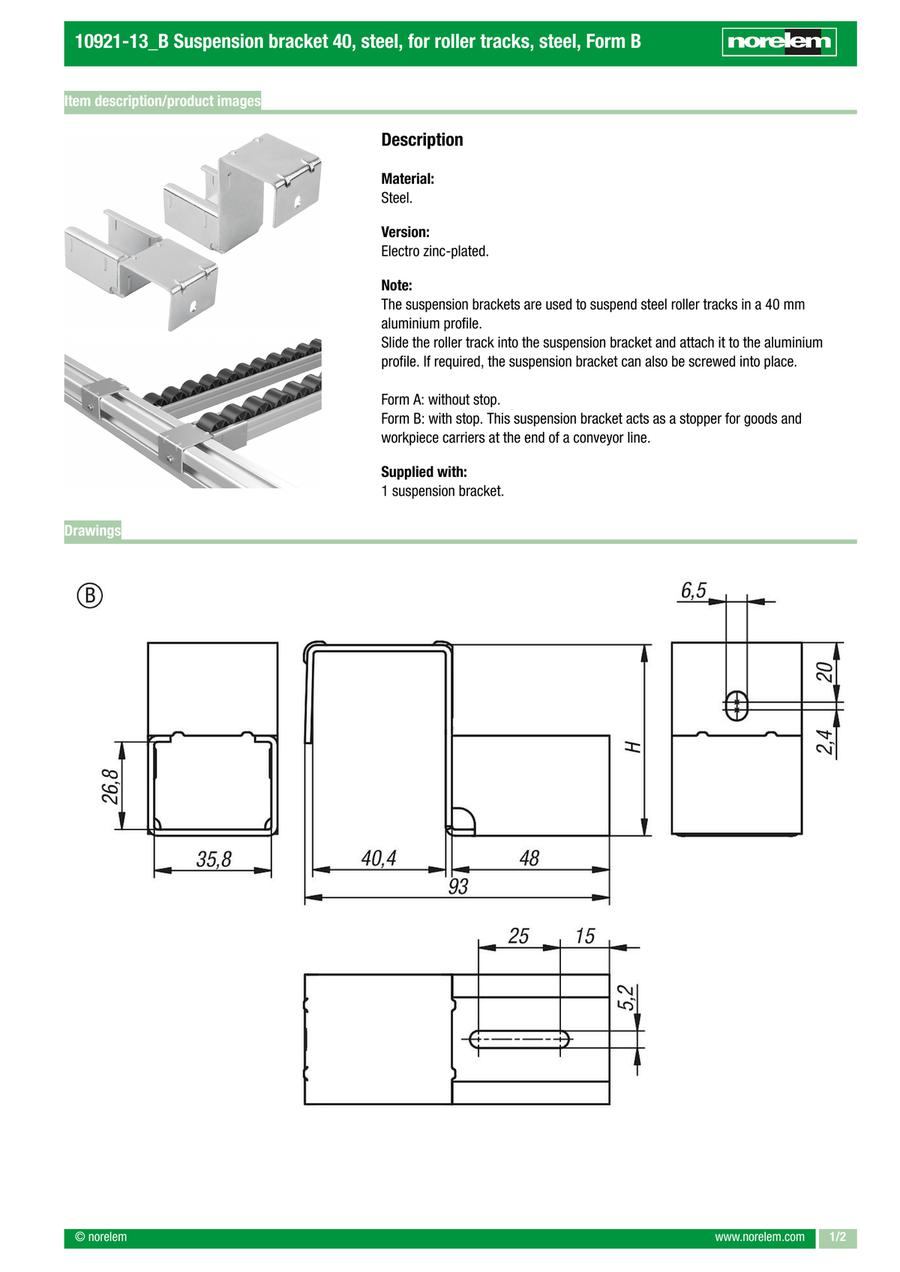

Suspension bracket 40, steel, for roller tracks, steel, Form B (10921-13)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
10921-13-407240
- Product data
- CAD data not available
Basic information
| Type | Guide Rail Brackets | Main material | Steel | Item | Suspension bracket |
|---|---|---|---|---|---|
| Form | B | Surface finish body | Galvanised | Form definition | With stop |
| H=Height(mm) | 72.3 | RoHS | Yes | PL Edelstahl | No |
| Weight (ERP)(kg) | 0.1760 |
This page is Suspension bracket 40, steel, for roller tracks, steel, Form B (10921-13), part number 10921-13-407240.
You can find the detail information about specifications and dimensions on part number 10921-13-407240.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
