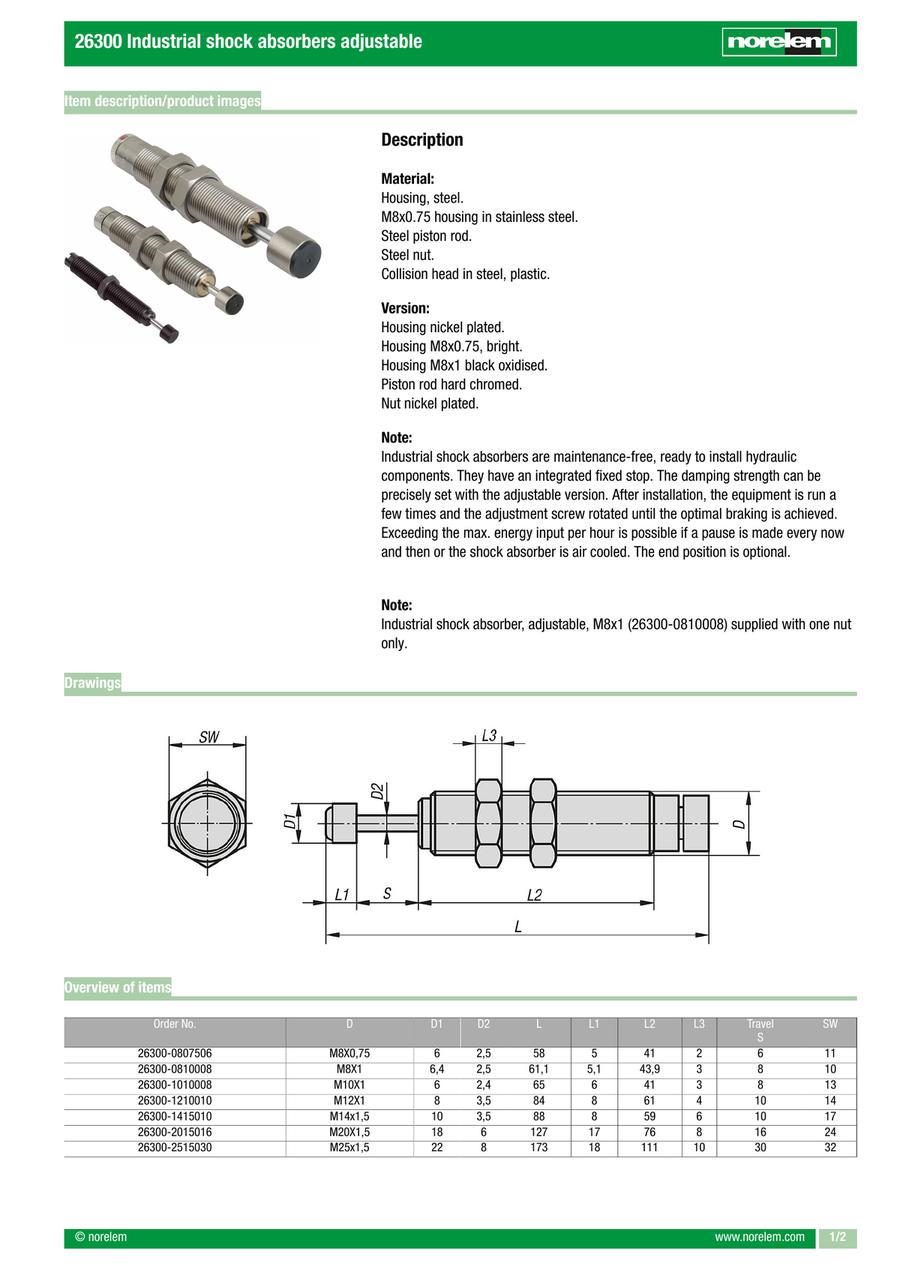

Shock absorber adjustable, steel or stainless steel (26300)
· Mounting position arbitrary
· With integrated fixed stop
· Maintenance-free
· Ready to install
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 26300-0807506 |
| 26300-0810008 |
| 26300-1010008 |
| 26300-1210010 |
| 26300-1415010 |
| 26300-2015016 |
| 26300-2515030 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | D1 (m/s) | D2 | Travel S (kg) | L | D=Thread (Nm) | max. energy input per stroke | L2 | return force | effective mass max. | SW | axis deviation max. | L1 | max. energy input per hour | L3 | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
139.77 € | 1 | 4 Days | stainless steel | 6 | 2.5 | 6 | 58 | M8X0.75 | 1.4 | 41 | 9 | 15 | 11 | 2.5 | 5 | 2202 | 2 | 0.0186 | ||
139.77 € | 1 | 4 Days | steel | 6.4 | 2.5 | 8 | 61.1 | M8X1 | 3.5 | 43.9 | 5.3 | 15 | 10 | 2 | 5.1 | 5650 | 3 | 0.0129 | ||
145.78 € | 1 | 4 Days | steel | 6 | 2.4 | 8 | 65 | M10X1 | 1.76 | 41 | 5.88 | 10 | 13 | 2.5 | 6 | 3528 | 3 | 0.0270 | ||
125.75 € | 1 | 4 Days | steel | 8 | 3.5 | 10 | 84 | M12X1 | 4.9 | 61 | 9.8 | 30 | 14 | 2.5 | 8 | 5880 | 4 | 0.0500 | ||
129.87 € | 1 | 4 Days | steel | 10 | 3.5 | 10 | 88 | M14x1.5 | 5.88 | 59 | 9.8 | 35 | 17 | 2.5 | 8 | 8820 | 6 | 0.0751 | ||
146.39 € | 1 | 4 Days | steel | 18 | 6 | 16 | 127 | M20X1.5 | - | 76 | 18.1 | 200 | 24 | 2.5 | 17 | 20580 | 8 | 0.2055 | ||
250.11 € | 1 | 4 Days | steel | 22 | 8 | 30 | 173 | M25x1.5 | 49 | 111 | 33.2 | 300 | 32 | 2.5 | 18 | 29400 | 10 | 0.4360 |
Loading...
Basic information
| Version 1(Nm) | adjustable | Item | Shock Absorber | speed range(°) | 0.3 - 2 |
|---|---|---|---|---|---|
| Component material | steel | RoHS | yes |
Configure
Basic Attributes
-
Main material
- stainless steel
- steel
-
D1(m/s)
-
D2
-
Travel S(kg)
-
L
-
D=Thread(Nm)
- M8X0.75
- M8X1
- M10X1
- M12X1
- M14x1.5
- M20X1.5
- M25x1.5
-
max. energy input per stroke
-
L2
-
return force
-
effective mass max.
-
SW
- 10
- 11
- 13
- 14
- 17
- 24
- 32
-
axis deviation max.
- 2
- 2.5
-
L1
- 5
- 5.1
- 6
- 8
- 17
- 18
-
max. energy input per hour
-
L3
- 2
- 3
- 4
- 6
- 8
- 10
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
