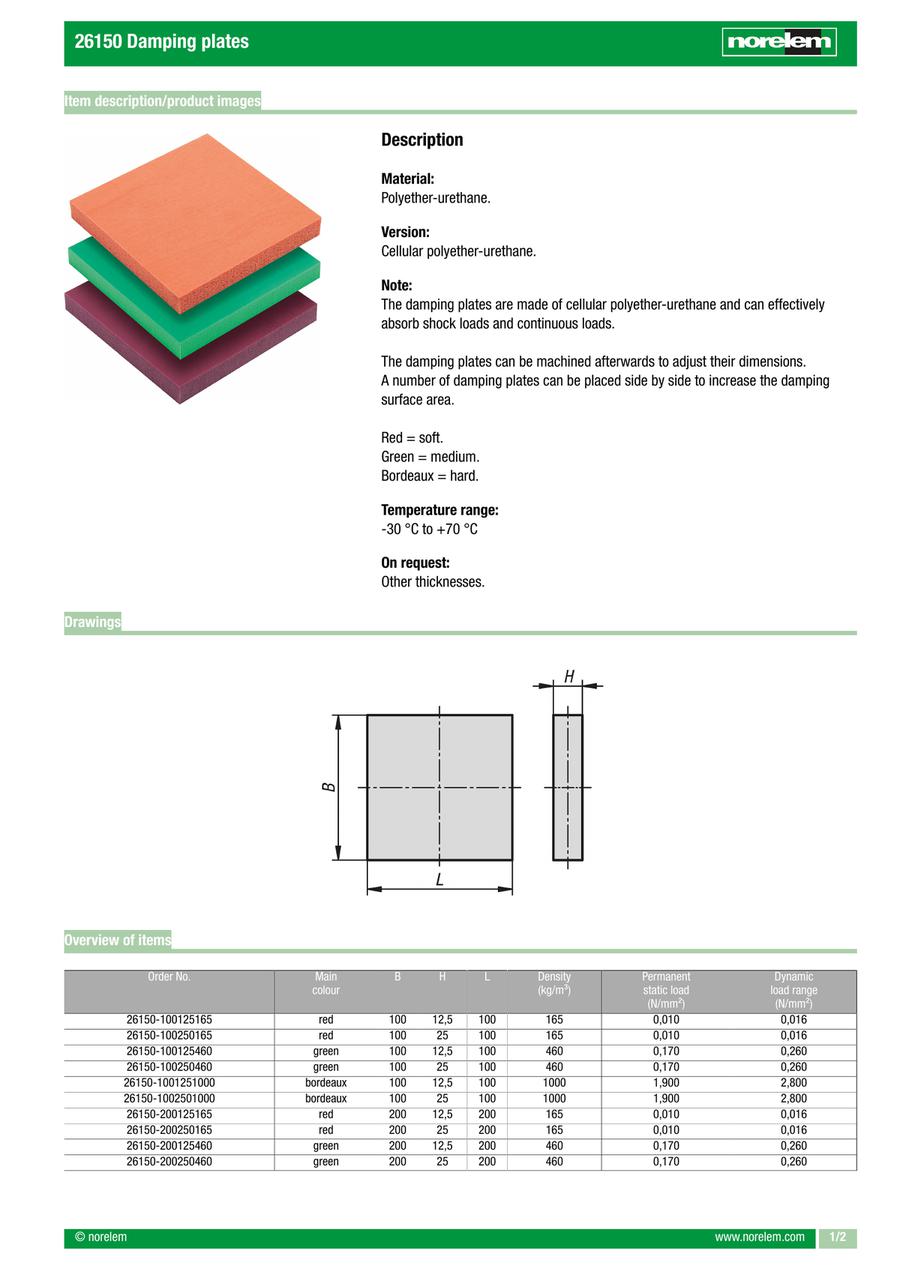

Damping plates (26150)
· Sprung
· Effective absorption of shock loads
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 26150-1001251000 |
| 26150-100125165 |
| 26150-100125460 |
| 26150-1002501000 |
| 26150-100250165 |
| 26150-100250460 |
| 26150-2001251000 |
| 26150-200125165 |
| 26150-200125460 |
| 26150-2002501000 |
| 26150-200250165 |
| 26150-200250460 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Height H, Thickness T (mm) | Main colour | L=Length (mm) | B=Width (mm) | Density (kg/m³) | Permanent static load (N/mm²) | Dynamic load range (N/mm²) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
25.24 € | 1 | 4 Days | 12.5 | Bordeaux | 100 | 100 | 1000 | 1.900 | 2.800 | 0.1157 | ||
4.60 € | 1 | 4 Days | 12.5 | Red | 100 | 100 | 165 | 0.010 | 0.016 | 0.023 | ||
10.38 € | 1 | 4 Days | 12.5 | Green | 100 | 100 | 460 | 0.170 | 0.260 | 0.062 | ||
44.62 € | 1 | 4 Days | 25 | Bordeaux | 100 | 100 | 1000 | 1.900 | 2.800 | 0.2519 | ||
8.02 € | 1 | 4 Days | 25 | Red | 100 | 100 | 165 | 0.010 | 0.016 | 0.042 | ||
18.40 € | 1 | 4 Days | 25 | Green | 100 | 100 | 460 | 0.170 | 0.260 | 0.115 | ||
100.96 € | 1 | 4 Days | 12.5 | Bordeaux | 200 | 200 | 1000 | 1.900 | 2.800 | 0.469 | ||
18.40 € | 1 | 4 Days | 12.5 | Red | 200 | 200 | 165 | 0.010 | 0.016 | 0.0797 | ||
41.48 € | 1 | 4 Days | 12.5 | Green | 200 | 200 | 460 | 0.170 | 0.260 | 0.2333 | ||
178.50 € | 1 | 4 Days | 25 | Bordeaux | 200 | 200 | 1000 | 1.900 | 2.800 | 1.009 | ||
32.03 € | 1 | 4 Days | 25 | Red | 200 | 200 | 165 | 0.010 | 0.016 | 0.1692 | ||
73.60 € | 1 | 4 Days | 25 | Green | 200 | 200 | 460 | 0.170 | 0.260 | 0.4648 |
Loading...
Basic information
| Main material | Polyether-urethane | Item | Damping plate | RoHS | Yes |
|---|---|---|---|---|---|
| PL Edelstahl | No |
Configure
Basic Attributes
-
Height H, Thickness T(mm)
-
Main colour
- Bordeaux
- Green
- Red
-
L=Length(mm)
- 100
- 200
-
B=Width(mm)
- 100
- 200
-
Density(kg/m³)
- 165
- 460
- 1000
-
Permanent static load(N/mm²)
- 0.010
- 0.170
- 1.900
-
Dynamic load range(N/mm²)
- 0.016
- 0.260
- 2.800
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
