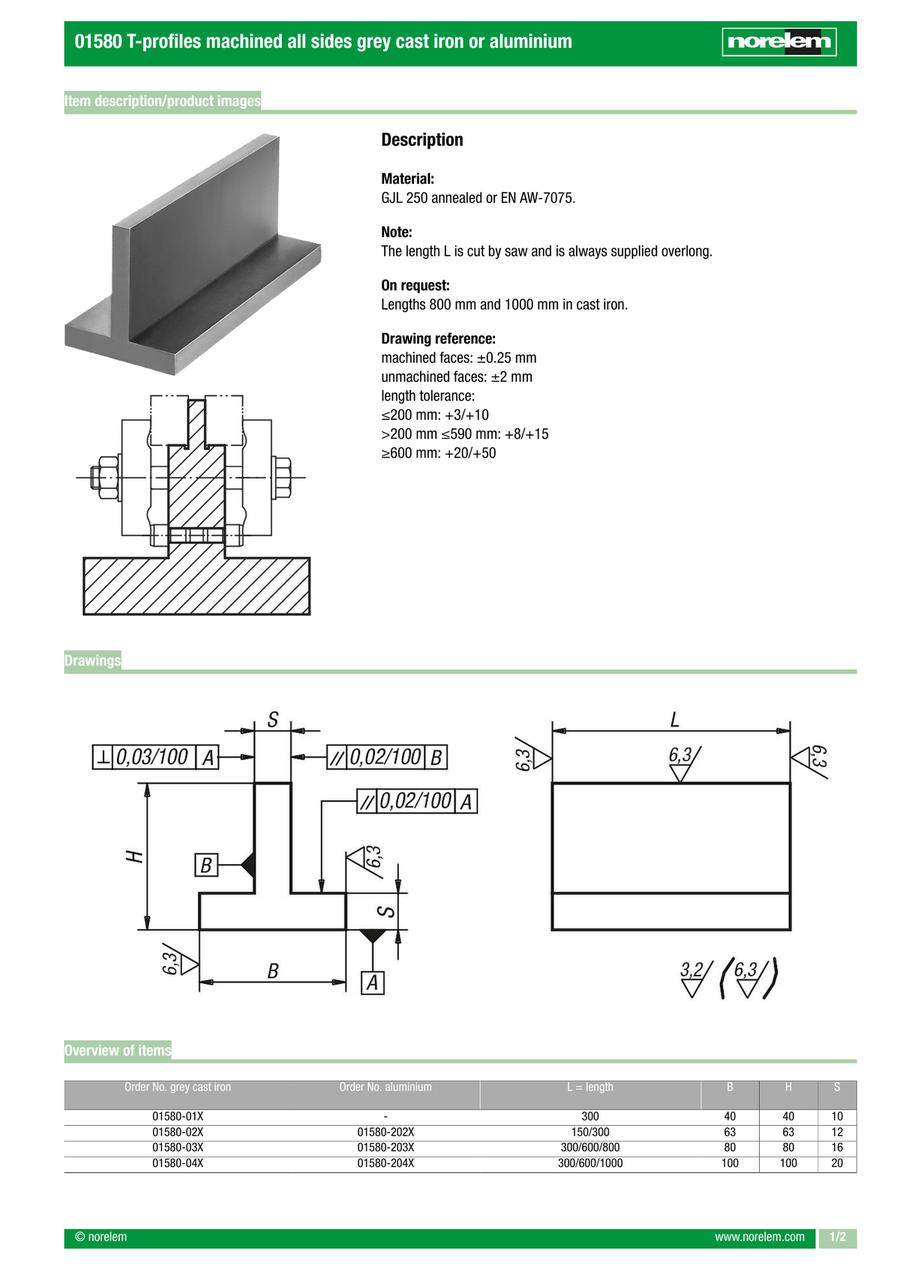

T-profile, grey cast iron or aluminium (01580)
· Easy handling
· Versatile use
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L=Length | H=Height | S | B=Width | Main material | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
235.97 € | 1 | 4 Days | 300 | 40 | 10 | 40 | grey cast iron | 1.6000 | ||
167.37 € | 1 | 4 Days | 150 | 63 | 12 | 63 | grey cast iron | 1.5250 | ||
281.89 € | 1 | 4 Days | 300 | 63 | 12 | 63 | grey cast iron | 3.1000 | ||
284.05 € | 1 | 4 Days | 300 | 80 | 16 | 80 | grey cast iron | 5.2020 | ||
489.43 € | 1 | 4 Days | 600 | 80 | 16 | 80 | grey cast iron | 10.4000 | ||
345.23 € | 1 | 4 Days | 300 | 100 | 20 | 100 | grey cast iron | 7.8000 | ||
592.10 € | 1 | 4 Days | 600 | 100 | 20 | 100 | grey cast iron | 16.9110 | ||
393.29 € | 1 | 4 Days | 300 | 125 | 20 | 125 | grey cast iron | 10.8020 | ||
679.50 € | 1 | 4 Days | 600 | 125 | 20 | 125 | grey cast iron | 21.5610 | ||
456.67 € | 1 | 4 Days | 300 | 160 | 25 | 160 | grey cast iron | 17.3100 | ||
784.41 € | 1 | 4 Days | 600 | 160 | 25 | 160 | grey cast iron | 34.6000 | ||
613.99 € | 1 | 4 Days | 300 | 200 | 32 | 200 | grey cast iron | 31.8000 | ||
1,064.06 € | 1 | 4 Days | 600 | 200 | 32 | 200 | grey cast iron | 51.0000 | ||
209.08 € | 1 | 4 Days | 150 | 63 | 12 | 63 | aluminium | 0.5992 | ||
435.43 € | 1 | 4 Days | 300 | 63 | 12 | 63 | aluminium | 1.1550 | ||
494.26 € | 1 | 4 Days | 300 | 80 | 16 | 80 | aluminium | 2.0480 | ||
1,036.90 € | 1 | 4 Days | 600 | 80 | 16 | 80 | aluminium | 4.1000 | ||
1,316.64 € | 1 | 4 Days | 800 | 80 | 16 | 80 | aluminium | 5.2810 | ||
1,974.93 € | 1 | 4 Days | 1000 | 100 | 20 | 100 | aluminium | 10.2600 | ||
477.47 € | 1 | 4 Days | 300 | 100 | 20 | 100 | aluminium | 3.2020 | ||
1,148.37 € | 1 | 4 Days | 600 | 100 | 20 | 100 | aluminium | 6.5000 | ||
2,237.86 € | 1 | 4 Days | 1000 | 125 | 20 | 125 | aluminium | 10.0000 | ||
641.49 € | 1 | 4 Days | 300 | 125 | 20 | 125 | aluminium | 4.0860 | ||
1,179.28 € | 1 | 4 Days | 600 | 125 | 20 | 125 | aluminium | 8.3220 | ||
885.46 € | 1 | 4 Days | 300 | 160 | 25 | 160 | aluminium | 6.4520 | ||
1,686.77 € | 1 | 4 Days | 600 | 160 | 25 | 160 | aluminium | 13.0500 | ||
1,273.35 € | 1 | 4 Days | 300 | 200 | 32 | 200 | aluminium | 10.4200 | ||
2,377.89 € | 1 | 4 Days | 600 | 200 | 32 | 200 | aluminium | 20.9000 |
Loading...
Basic information
| Item | T-Profile | RoHS | yes |
|---|
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
