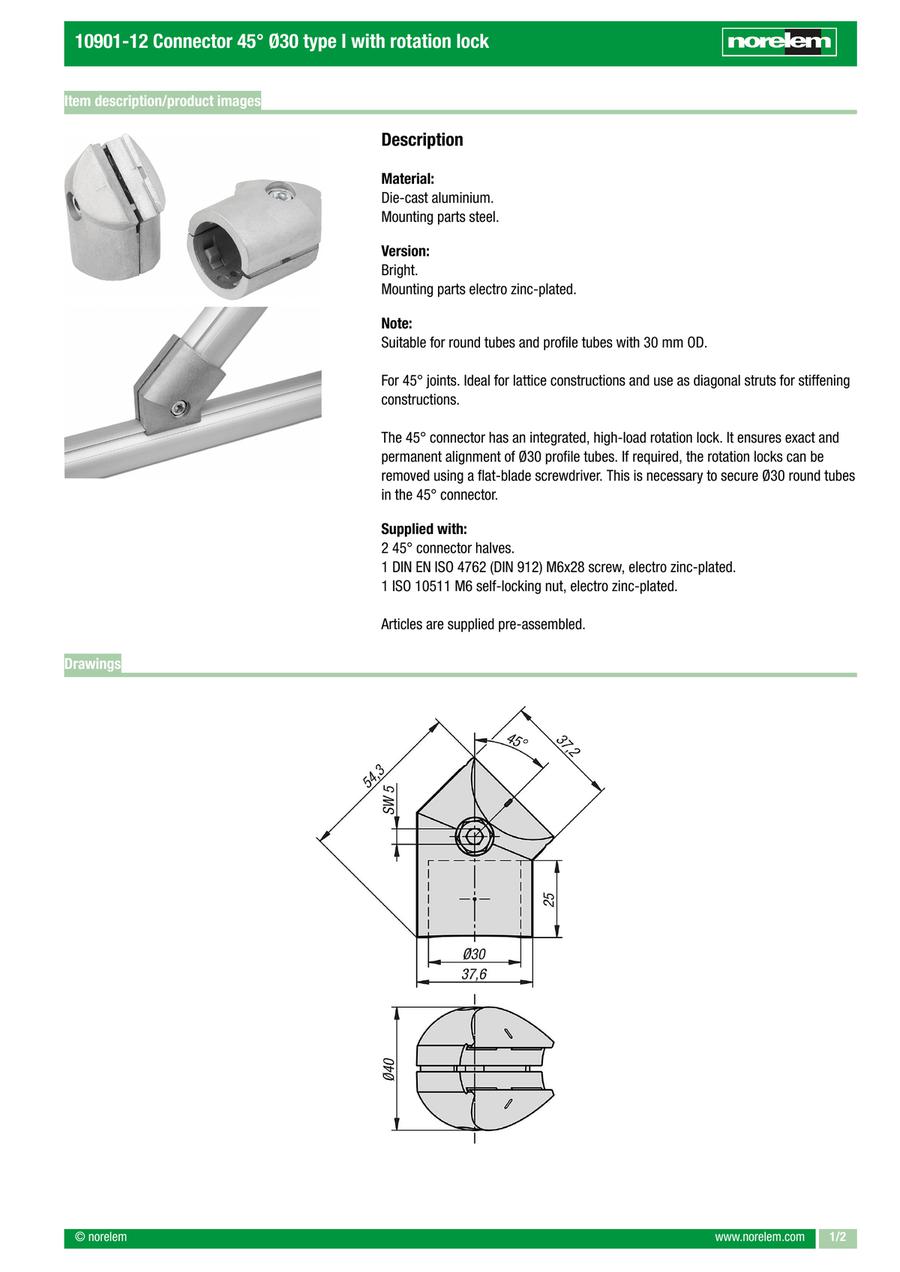

Connector with rotation lock, Type I, aluminium (10901)
· Lightweight version for weight-optimised structures
· For lattice constructions and use as diagonal struts.
· Precise 45° connections
· Pre-assembled
· For lattice constructions and use as diagonal struts.
· Precise 45° connections
· Pre-assembled
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
10901-12-301
- Product data
- CAD data not available
Basic information
| Main material | aluminium | Item | Angle connector Ø30 | Version 1 | with rotation lock |
|---|---|---|---|---|---|
| Version 2 | type I | Profile | Ø30 | ESD electrostatic discharging | yes |
| RoHS | yes | PL Edelstahl | no | Weight (ERP)(kg) | 0.1020 |
This page is Connector with rotation lock, Type I, aluminium (10901), part number 10901-12-301.
You can find the detail information about specifications and dimensions on part number 10901-12-301.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
