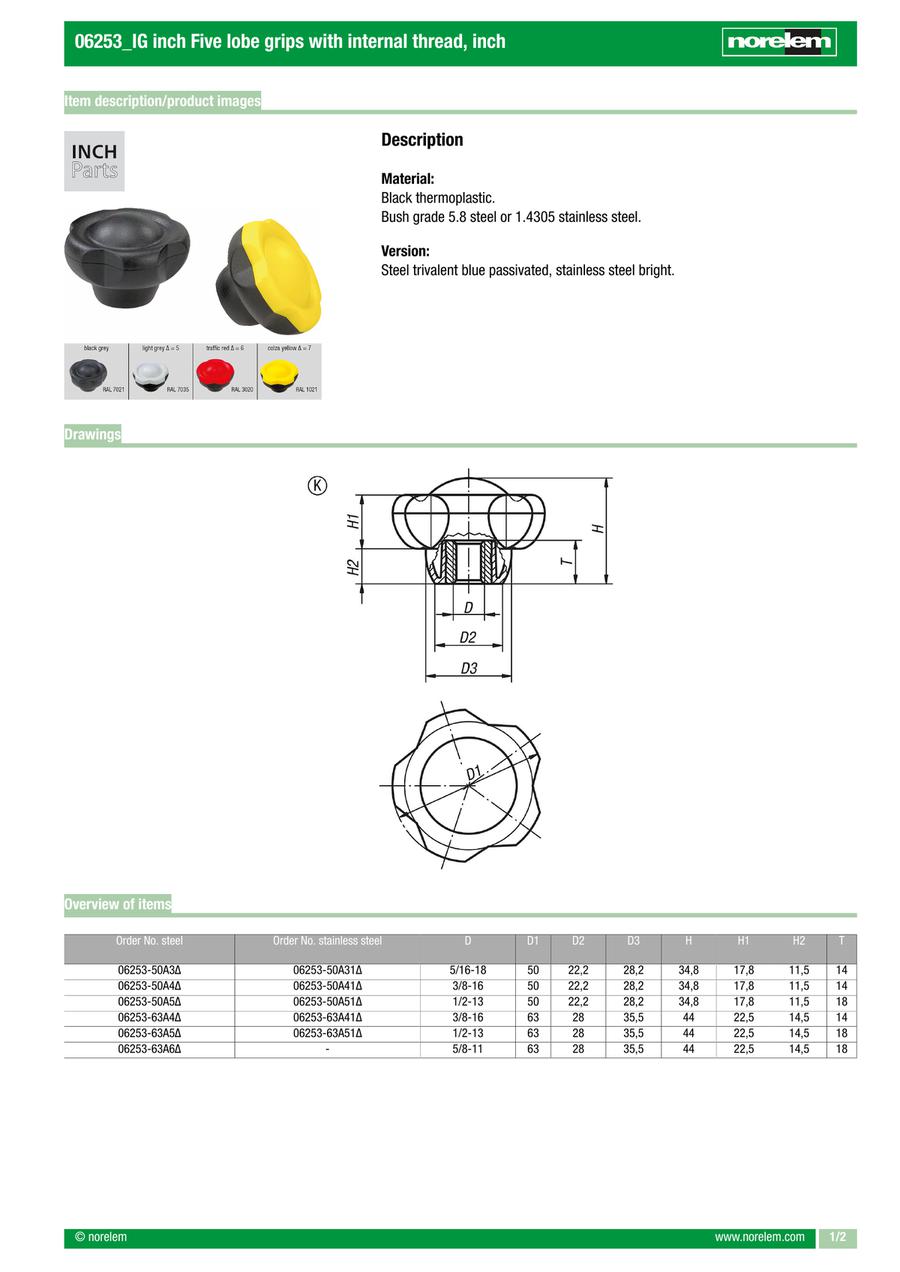

Five lobe grip, form K, thermoplastic, inch (06253)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Various colours available
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2 | D3 | H1 | H2 | Colour Cap | Component material | D=Thread | D1=Outside diameter | H=Height | T=thread depth | PL Edelstahl | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | black grey RAL 7021 | steel | 5/16-18 | 50 | 34.8 | 14 | no | 0.0250 | ||
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | black grey RAL 7021 | steel | 3/8-16 | 50 | 34.8 | 14 | no | 0.0236 | ||
3.96 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | black grey RAL 7021 | steel | 1/2-13 | 50 | 34.8 | 18 | no | 0.0380 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | black grey RAL 7021 | Stainless steel | 5/16-18 | 50 | 34.8 | 14 | yes | 0.0258 | ||
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | light grey RAL 7035 | steel | 5/16-18 | 50 | 34.8 | 14 | no | 0.0251 | ||
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | traffic red RAL 3020 | steel | 5/16-18 | 50 | 34.8 | 14 | no | 0.0251 | ||
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | colza yellow RAL 1021 | steel | 5/16-18 | 50 | 34.8 | 14 | no | 0.0252 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | black grey RAL 7021 | Stainless steel | 3/8-16 | 50 | 34.8 | 14 | yes | 0.0201 | ||
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | light grey RAL 7035 | steel | 3/8-16 | 50 | 34.8 | 14 | no | 0.0223 | ||
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | traffic red RAL 3020 | steel | 3/8-16 | 50 | 34.8 | 14 | no | 0.0229 | ||
3.42 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | colza yellow RAL 1021 | steel | 3/8-16 | 50 | 34.8 | 14 | no | 0.0224 | ||
5.71 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | black grey RAL 7021 | Stainless steel | 1/2-13 | 50 | 34.8 | 18 | yes | 0.0379 | ||
3.96 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | light grey RAL 7035 | steel | 1/2-13 | 50 | 34.8 | 18 | no | 0.0540 | ||
3.96 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | traffic red RAL 3020 | steel | 1/2-13 | 50 | 34.8 | 18 | no | 0.0400 | ||
3.96 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | colza yellow RAL 1021 | steel | 1/2-13 | 50 | 34.8 | 18 | no | 0.0400 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | light grey RAL 7035 | Stainless steel | 5/16-18 | 50 | 34.8 | 14 | yes | 0.0250 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | traffic red RAL 3020 | Stainless steel | 5/16-18 | 50 | 34.8 | 14 | yes | 0.0250 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | colza yellow RAL 1021 | Stainless steel | 5/16-18 | 50 | 34.8 | 14 | yes | 0.0250 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | light grey RAL 7035 | Stainless steel | 3/8-16 | 50 | 34.8 | 14 | yes | 0.0229 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | traffic red RAL 3020 | Stainless steel | 3/8-16 | 50 | 34.8 | 14 | yes | 0.0229 | ||
5.16 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | colza yellow RAL 1021 | Stainless steel | 3/8-16 | 50 | 34.8 | 14 | yes | 0.0228 | ||
5.71 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | light grey RAL 7035 | Stainless steel | 1/2-13 | 50 | 34.8 | 18 | yes | 0.0400 | ||
5.71 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | traffic red RAL 3020 | Stainless steel | 1/2-13 | 50 | 34.8 | 18 | yes | 0.0400 | ||
5.71 € | 1 | 4 Days | 22.2 | 28.2 | 17.8 | 11.5 | colza yellow RAL 1021 | Stainless steel | 1/2-13 | 50 | 34.8 | 18 | yes | 0.0400 | ||
4.13 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | black grey RAL 7021 | steel | 3/8-16 | 63 | 44 | 14 | no | 0.0400 | ||
4.54 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | black grey RAL 7021 | steel | 1/2-13 | 63 | 44 | 18 | no | 0.0519 | ||
4.68 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | black grey RAL 7021 | steel | 5/8-11 | 63 | 44 | 18 | no | 0.0434 | ||
5.78 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | black grey RAL 7021 | Stainless steel | 3/8-16 | 63 | 44 | 14 | yes | 0.0388 | ||
4.13 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | light grey RAL 7035 | steel | 3/8-16 | 63 | 44 | 14 | no | 0.0390 | ||
4.13 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | traffic red RAL 3020 | steel | 3/8-16 | 63 | 44 | 14 | no | 0.0380 | ||
4.13 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | colza yellow RAL 1021 | steel | 3/8-16 | 63 | 44 | 14 | no | 0.0377 | ||
6.28 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | black grey RAL 7021 | Stainless steel | 1/2-13 | 63 | 44 | 18 | yes | 0.0519 | ||
4.54 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | light grey RAL 7035 | steel | 1/2-13 | 63 | 44 | 18 | no | 0.0538 | ||
4.54 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | traffic red RAL 3020 | steel | 1/2-13 | 63 | 44 | 18 | no | 0.0537 | ||
4.54 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | colza yellow RAL 1021 | steel | 1/2-13 | 63 | 44 | 18 | no | 0.0532 | ||
4.68 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | light grey RAL 7035 | steel | 5/8-11 | 63 | 44 | 18 | no | 0.0490 | ||
4.68 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | traffic red RAL 3020 | steel | 5/8-11 | 63 | 44 | 18 | no | 0.0428 | ||
4.68 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | colza yellow RAL 1021 | steel | 5/8-11 | 63 | 44 | 18 | no | 0.0424 | ||
5.78 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | light grey RAL 7035 | Stainless steel | 3/8-16 | 63 | 44 | 14 | yes | 0.0440 | ||
5.78 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | traffic red RAL 3020 | Stainless steel | 3/8-16 | 63 | 44 | 14 | yes | 0.0440 | ||
5.78 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | colza yellow RAL 1021 | Stainless steel | 3/8-16 | 63 | 44 | 14 | yes | 0.0440 | ||
6.28 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | light grey RAL 7035 | Stainless steel | 1/2-13 | 63 | 44 | 18 | yes | 0.0540 | ||
6.28 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | traffic red RAL 3020 | Stainless steel | 1/2-13 | 63 | 44 | 18 | yes | 0.0537 | ||
6.28 € | 1 | 4 Days | 28 | 35.5 | 22.5 | 14.5 | colza yellow RAL 1021 | Stainless steel | 1/2-13 | 63 | 44 | 18 | yes | 0.0540 |
Loading...
Basic information
| Form | K | Item | Five Lobe Grip | Main colour | black grey RAL 7021 |
|---|---|---|---|---|---|
| Main material | Thermoplastic | Thread type | internal thread | RoHS | yes |
Configure
Basic Attributes
-
D2
-
D3
-
H1
-
H2
-
Colour Cap
- colza yellow RAL 1021
- traffic red RAL 3020
- black grey RAL 7021
- light grey RAL 7035
-
Component material
- Stainless steel
- steel
-
D=Thread
-
D1=Outside diameter
-
H=Height
-
T=thread depth
-
PL Edelstahl
- no
- yes
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
