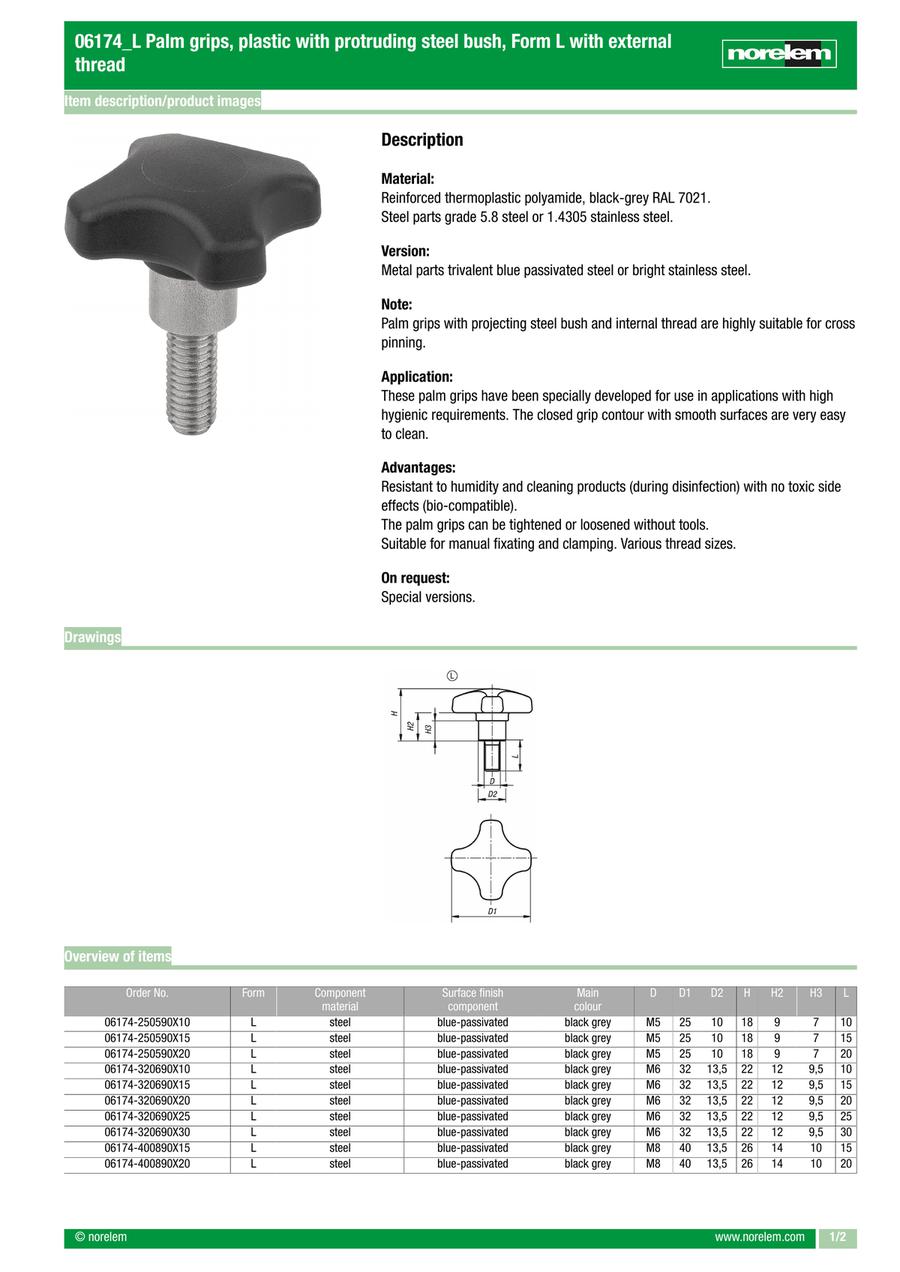

Palm grip, with protruding bush, form L, polyamide (06174)
· Easy to clean
· For stringent hygiene requirements.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2 | H2 | H3 | Steel code | Component material | D=Thread | D1=Outside diameter | H=Height | L=thread length | Surface finish component | PL Edelstahl | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2.64 € | 1 | 4 Days | 10 | 9 | 7 | 1.4305 | Stainless steel | M5 | 25 | 18 | 10 | bright | yes | 0.0186 | ||
2.64 € | 1 | 4 Days | 10 | 9 | 7 | 1.4305 | Stainless steel | M5 | 25 | 18 | 15 | bright | yes | 0.0192 | ||
2.64 € | 1 | 4 Days | 10 | 9 | 7 | 1.4305 | Stainless steel | M5 | 25 | 18 | 20 | bright | yes | 0.0197 | ||
1.88 € | 1 | 4 Days | 10 | 9 | 7 | - | steel | M5 | 25 | 18 | 10 | blue-passivated | no | 0.0186 | ||
1.88 € | 1 | 4 Days | 10 | 9 | 7 | - | steel | M5 | 25 | 18 | 15 | blue-passivated | no | 0.0192 | ||
1.88 € | 1 | 4 Days | 10 | 9 | 7 | - | steel | M5 | 25 | 18 | 20 | blue-passivated | no | 0.0197 | ||
2.88 € | 1 | 4 Days | 13.5 | 12 | 9.5 | 1.4305 | Stainless steel | M6 | 32 | 22 | 10 | bright | yes | 0.0306 | ||
2.88 € | 1 | 4 Days | 13.5 | 12 | 9.5 | 1.4305 | Stainless steel | M6 | 32 | 22 | 15 | bright | yes | 0.0313 | ||
2.88 € | 1 | 4 Days | 13.5 | 12 | 9.5 | 1.4305 | Stainless steel | M6 | 32 | 22 | 20 | bright | yes | 0.0322 | ||
3.04 € | 1 | 4 Days | 13.5 | 12 | 9.5 | 1.4305 | Stainless steel | M6 | 32 | 22 | 25 | bright | yes | 0.0330 | ||
3.04 € | 1 | 4 Days | 13.5 | 12 | 9.5 | 1.4305 | Stainless steel | M6 | 32 | 22 | 30 | bright | yes | 0.0339 | ||
2.15 € | 1 | 4 Days | 13.5 | 12 | 9.5 | - | steel | M6 | 32 | 22 | 10 | blue-passivated | no | 0.0306 | ||
2.15 € | 1 | 4 Days | 13.5 | 12 | 9.5 | - | steel | M6 | 32 | 22 | 15 | blue-passivated | no | 0.0313 | ||
2.15 € | 1 | 4 Days | 13.5 | 12 | 9.5 | - | steel | M6 | 32 | 22 | 20 | blue-passivated | no | 0.0322 | ||
2.43 € | 1 | 4 Days | 13.5 | 12 | 9.5 | - | steel | M6 | 32 | 22 | 25 | blue-passivated | no | 0.0330 | ||
2.43 € | 1 | 4 Days | 13.5 | 12 | 9.5 | - | steel | M6 | 32 | 22 | 30 | blue-passivated | no | 0.0339 | ||
3.63 € | 1 | 4 Days | 13.5 | 14 | 10 | 1.4305 | Stainless steel | M8 | 40 | 26 | 15 | bright | yes | 0.0336 | ||
3.73 € | 1 | 4 Days | 13.5 | 14 | 10 | 1.4305 | Stainless steel | M8 | 40 | 26 | 20 | bright | yes | 0.0351 | ||
3.80 € | 1 | 4 Days | 13.5 | 14 | 10 | 1.4305 | Stainless steel | M8 | 40 | 26 | 25 | bright | yes | 0.0366 | ||
3.88 € | 1 | 4 Days | 13.5 | 14 | 10 | 1.4305 | Stainless steel | M8 | 40 | 26 | 30 | bright | yes | 0.0381 | ||
4.06 € | 1 | 4 Days | 13.5 | 14 | 10 | 1.4305 | Stainless steel | M8 | 40 | 26 | 40 | bright | yes | 0.0412 | ||
4.14 € | 1 | 4 Days | 13.5 | 14 | 10 | 1.4305 | Stainless steel | M8 | 40 | 26 | 50 | bright | yes | 0.0443 | ||
2.51 € | 1 | 4 Days | 13.5 | 14 | 10 | - | steel | M8 | 40 | 26 | 15 | blue-passivated | no | 0.0336 | ||
2.59 € | 1 | 4 Days | 13.5 | 14 | 10 | - | steel | M8 | 40 | 26 | 20 | blue-passivated | no | 0.0351 | ||
2.69 € | 1 | 4 Days | 13.5 | 14 | 10 | - | steel | M8 | 40 | 26 | 25 | blue-passivated | no | 0.0366 | ||
2.79 € | 1 | 4 Days | 13.5 | 14 | 10 | - | steel | M8 | 40 | 26 | 30 | blue-passivated | no | 0.0381 | ||
2.88 € | 1 | 4 Days | 13.5 | 14 | 10 | - | steel | M8 | 40 | 26 | 40 | blue-passivated | no | 0.0412 | ||
3.04 € | 1 | 4 Days | 13.5 | 14 | 10 | - | steel | M8 | 40 | 26 | 50 | blue-passivated | no | 0.0443 | ||
4.89 € | 1 | 4 Days | 19 | 18 | 12 | 1.4305 | Stainless steel | M10 | 50 | 32 | 20 | bright | yes | 0.0808 | ||
4.94 € | 1 | 4 Days | 19 | 18 | 12 | 1.4305 | Stainless steel | M10 | 50 | 32 | 25 | bright | yes | 0.0832 | ||
5.04 € | 1 | 4 Days | 19 | 18 | 12 | 1.4305 | Stainless steel | M10 | 50 | 32 | 30 | bright | yes | 0.0857 | ||
5.12 € | 1 | 4 Days | 19 | 18 | 12 | 1.4305 | Stainless steel | M10 | 50 | 32 | 40 | bright | yes | 0.0908 | ||
5.19 € | 1 | 4 Days | 19 | 18 | 12 | 1.4305 | Stainless steel | M10 | 50 | 32 | 50 | bright | yes | 0.0956 | ||
5.30 € | 1 | 4 Days | 19 | 18 | 12 | 1.4305 | Stainless steel | M10 | 50 | 32 | 60 | bright | yes | 0.1004 | ||
3.24 € | 1 | 4 Days | 19 | 18 | 12 | - | steel | M10 | 50 | 32 | 20 | blue-passivated | no | 0.0808 | ||
3.51 € | 1 | 4 Days | 19 | 18 | 12 | - | steel | M10 | 50 | 32 | 25 | blue-passivated | no | 0.0832 | ||
3.77 € | 1 | 4 Days | 19 | 18 | 12 | - | steel | M10 | 50 | 32 | 30 | blue-passivated | no | 0.0857 | ||
4.14 € | 1 | 4 Days | 19 | 18 | 12 | - | steel | M10 | 50 | 32 | 40 | blue-passivated | no | 0.0908 | ||
4.51 € | 1 | 4 Days | 19 | 18 | 12 | - | steel | M10 | 50 | 32 | 50 | blue-passivated | no | 0.0956 | ||
4.58 € | 1 | 4 Days | 19 | 18 | 12 | - | steel | M10 | 50 | 32 | 60 | blue-passivated | no | 0.1004 | ||
6.13 € | 1 | 4 Days | 19 | 21.5 | 12.5 | 1.4305 | Stainless steel | M12 | 63 | 38 | 20 | bright | yes | 0.0855 | ||
6.28 € | 1 | 4 Days | 19 | 21.5 | 12.5 | 1.4305 | Stainless steel | M12 | 63 | 38 | 25 | bright | yes | 0.0990 | ||
6.58 € | 1 | 4 Days | 19 | 21.5 | 12.5 | 1.4305 | Stainless steel | M12 | 63 | 38 | 30 | bright | yes | 0.0922 | ||
6.73 € | 1 | 4 Days | 19 | 21.5 | 12.5 | 1.4305 | Stainless steel | M12 | 63 | 38 | 40 | bright | yes | 0.0997 | ||
6.91 € | 1 | 4 Days | 19 | 21.5 | 12.5 | 1.4305 | Stainless steel | M12 | 63 | 38 | 50 | bright | yes | 0.1068 | ||
7.51 € | 1 | 4 Days | 19 | 21.5 | 12.5 | 1.4305 | Stainless steel | M12 | 63 | 38 | 60 | bright | yes | 0.1136 | ||
4.26 € | 1 | 4 Days | 19 | 21.5 | 12.5 | - | steel | M12 | 63 | 38 | 20 | blue-passivated | no | 0.0855 | ||
4.61 € | 1 | 4 Days | 19 | 21.5 | 12.5 | - | steel | M12 | 63 | 38 | 25 | blue-passivated | no | 0.0990 | ||
4.97 € | 1 | 4 Days | 19 | 21.5 | 12.5 | - | steel | M12 | 63 | 38 | 30 | blue-passivated | no | 0.0922 | ||
5.31 € | 1 | 4 Days | 19 | 21.5 | 12.5 | - | steel | M12 | 63 | 38 | 40 | blue-passivated | no | 0.0997 | ||
5.64 € | 1 | 4 Days | 19 | 21.5 | 12.5 | - | steel | M12 | 63 | 38 | 50 | blue-passivated | no | 0.1068 | ||
6.00 € | 1 | 4 Days | 19 | 21.5 | 12.5 | - | steel | M12 | 63 | 38 | 60 | blue-passivated | no | 0.1136 |
Loading...
Basic information
| Form | L | Item | Palm Grip | Main colour | black grey |
|---|---|---|---|---|---|
| Main material | polyamide | Thread type | external thread | Version 2 | with protruding bush |
| RoHS | yes |
Configure
Basic Attributes
-
D2
-
H2
-
H3
-
Steel code
- 1.4305
-
Component material
- Stainless steel
- steel
-
D=Thread
-
D1=Outside diameter
-
H=Height
-
L=thread length
-
Surface finish component
- blue-passivated
- bright
-
PL Edelstahl
- no
- yes
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
