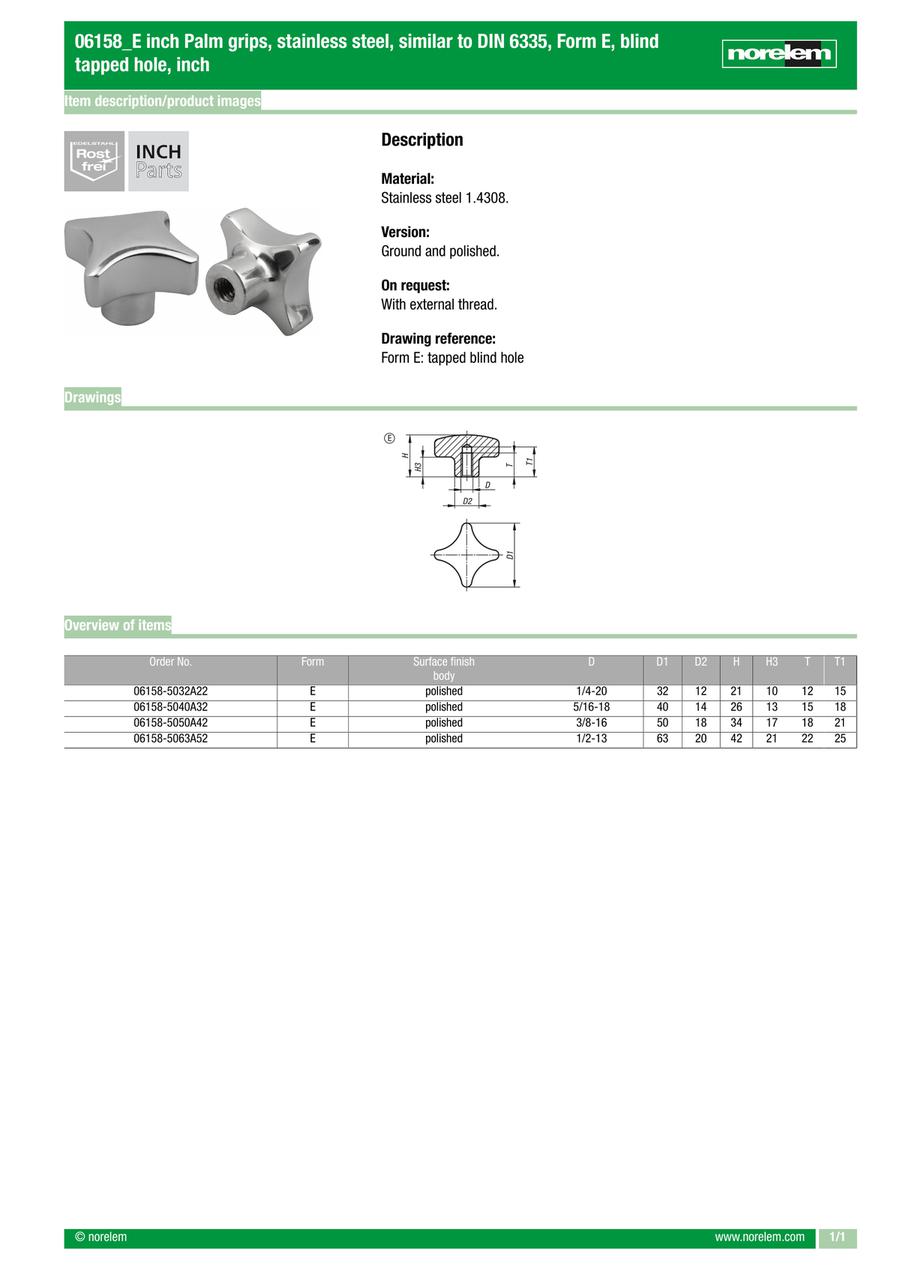

Palm grip to DIN 6335, form E, stainless steel polished, inch (06158)
· Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors
· For manually adjusting assemblies, machines and aggregates
· Form E: tapped blind hole
· Version: polished or abrasive blasted
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06158-5032A22 |
| 06158-5040A32 |
| 06158-5050A42 |
| 06158-5063A52 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2 | H3 | T1 | D=Thread | D1=Outside diameter | H=Height | T=bore depth | Thread type | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13.57 € | 1 | 4 Days | 12 | 10 | 15 | 1/4-20 | 32 | 21 | 12 | internal thread | 0.0394 | ||
17.19 € | 1 | 4 Days | 14 | 13 | 18 | 5/16-18 | 40 | 26 | 15 | internal thread | 0.0564 | ||
20.29 € | 1 | 4 Days | 18 | 17 | 21 | 3/8-16 | 50 | 34 | 18 | internal thread | 0.1111 | ||
24.90 € | 1 | 4 Days | 20 | 21 | 25 | 1/2-13 | 63 | 42 | 22 | - | 0.1954 |
Loading...
Basic information
| DIN | similar to DIN 6335 | Form | E | Item | Palm Grip |
|---|---|---|---|---|---|
| Main material | stainless steel | Surface finish body | polished | RoHS | yes |
| PL Edelstahl | yes |
Configure
Basic Attributes
-
D2
-
H3
-
T1
- 15
- 18
- 21
- 25
-
D=Thread
-
D1=Outside diameter
-
H=Height
-
T=bore depth
-
Thread type
- internal thread
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
