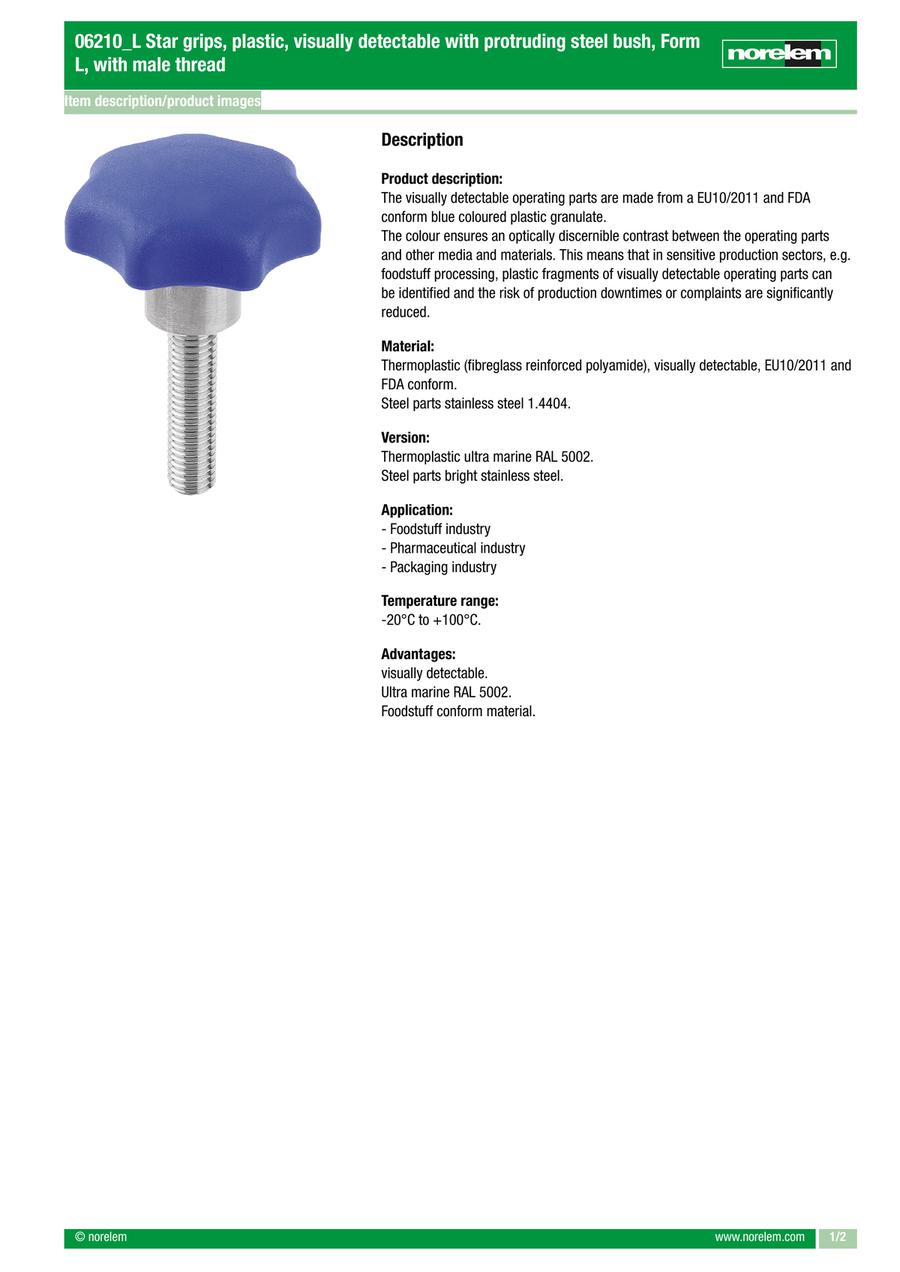

Star grip, visually detectable, with protruding bush, form L with external thread, polyamide (06210)
· visually detectable
· Ultramarine blue RAL 5002
· Foodstuff conform material
· Ultramarine blue RAL 5002
· Foodstuff conform material
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06210-13506X20 |
| 06210-13508X20 |
| 06210-13508X30 |
| 06210-13510X30 |
| 06210-13510X40 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2 | H2 | H3 | D=Thread | D1=Outside diameter | H=Height | L=thread length | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.66 € | 1 | 4 Days | 13.5 | 11 | 9.5 | M6 | 32 | 21 | 20 | 0.0080 | ||
8.38 € | 1 | 4 Days | 13.5 | 13 | 10 | M8 | 40 | 25 | 20 | 0.0160 | ||
9.15 € | 1 | 4 Days | 13.5 | 13 | 10 | M8 | 40 | 25 | 30 | 0.0160 | ||
10.90 € | 1 | 4 Days | 19 | 32 | 12 | M10 | 50 | 50 | 30 | 0.0300 | ||
11.81 € | 1 | 4 Days | 19 | 32 | 12 | M10 | 50 | 50 | 40 | 0.0927 |
Loading...
Basic information
| Steel code | 1.4404 | Approval / Certification | FDA + EU10/2011 | Component material | Stainless steel |
|---|---|---|---|---|---|
| Form | L | Form definition | with external thread | Item | Star Grip |
| Main colour | ultramarine RAL 5002 | Main material | polyamide | Surface finish component | bright |
| Thread type | external thread | Version 1 | Visually detectable | Version 2 | with protruding bush |
| RoHS | yes | PL Edelstahl | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
