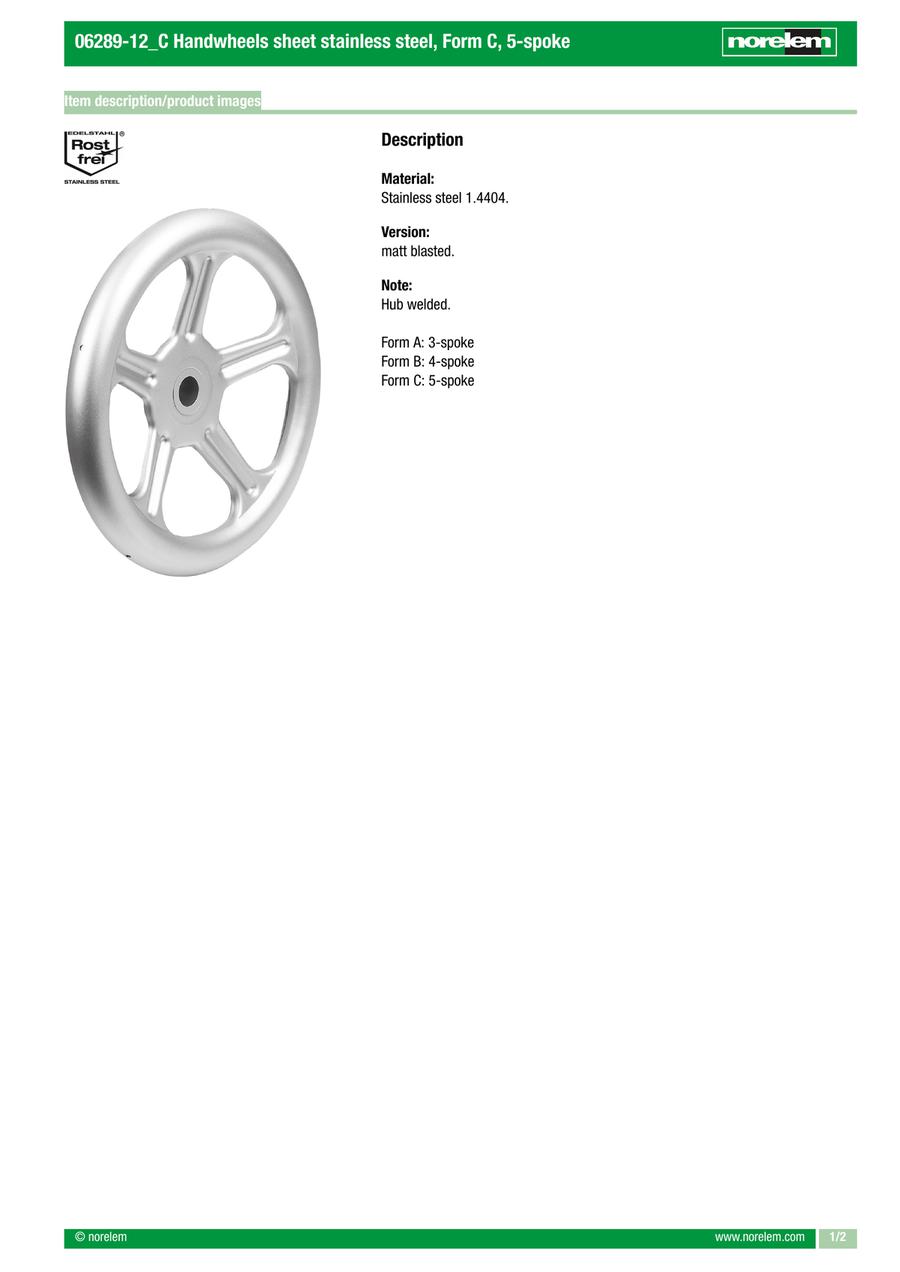

Handwheel reamed hole, form C, stainless steel (06289)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06289-12-0250X22 |
| 06289-12-0250X26 |
| 06289-12-0315X26 |
| 06289-12-0315X30 |
| 06289-12-0400X30 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | D2=Fastening hole (mm) | D3 (mm) | L1 (mm) | L2 | L3=height | S=Thickness | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
161.83 € | 1 | 4 Days | 250 | 22H9 | 45 | 30 | 28 | 52 | 2.5 | 1.5000 | ||
161.83 € | 1 | 4 Days | 250 | 26H9 | 45 | 30 | 28 | 52 | 2.5 | 1.5000 | ||
237.40 € | 1 | 4 Days | 315 | 26H9 | 55 | 35 | 33 | 64 | 2.5 | 2.4000 | ||
237.40 € | 1 | 4 Days | 315 | 30H9 | 55 | 35 | 33 | 64 | 2.5 | 2.4000 | ||
384.74 € | 1 | 4 Days | 400 | 30H9 | 65 | 40 | 38 | 82 | 3 | 4.2000 |
Loading...
Basic information
| Handle, Material | Stainless Steel | Steel code | 1.4404 | Surface finish body | matt blasted |
|---|---|---|---|---|---|
| Version 1 | reamed hole | Form | C | Form-Type | 5-spoke |
| Number of spokes | 5 | Form definition | 5-spoke | Item | Handwheel |
| RoHS | yes | PL Edelstahl | yes |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
