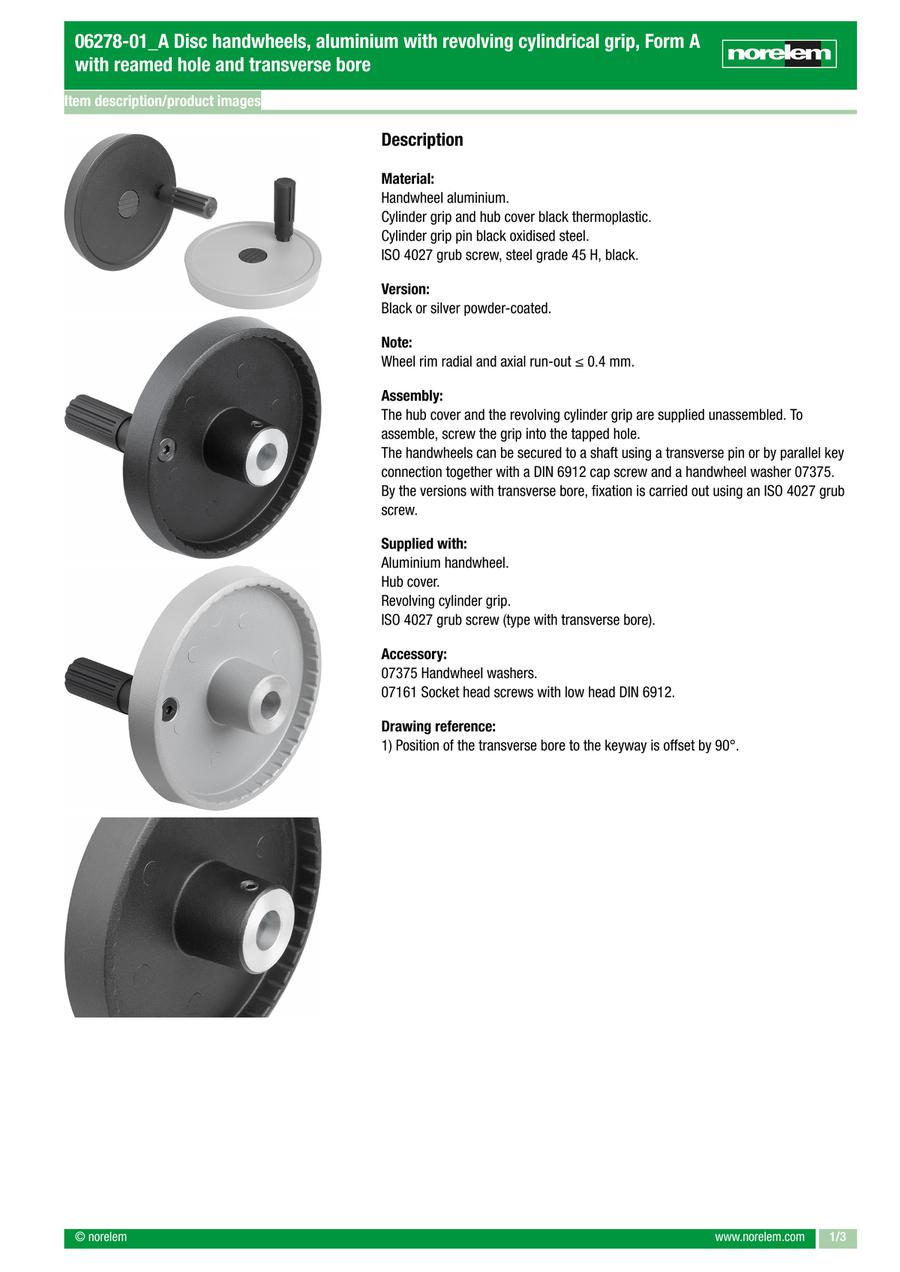

Disc handwheels, aluminium with revolving cylindrical grip, Form A with reamed hole and transverse bore (06278-01)

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items

Outside diameter

(Ø)

Main colour

L

(mm)

L1

(mm)

L2

(mm)

L3=height

(mm)

D2=Fastening hole

(mm)

D3

(mm)

D4

(mm)

D5

(mm)

A

(mm)

H

(mm)

H2

(mm)

Weight (ERP)

(kg)

Minimum order quantity
80
Black
68
16
39
29
10
26
13.9
M4
27
16.6
5.5
0.1500
1 pieces
80
Silver
68
16
39
29
10
26
13.9
M4
27
16.6
5.5
0.1500
1 pieces
80
Black
68
16
39
29
12
26
13.9
M4
27
16.6
6.5
0.1500
1 pieces
80
Silver
68
16
39
29
12
26
13.9
M4
27
16.6
6.5
0.1500
1 pieces
100
Black
81
17
48
33
10
28
16
M5
33
17.5
5.5
0.2540
1 pieces
100
Silver
81
17
48
33
10
28
16
M5
33
17.5
5.5
0.2540
1 pieces
100
Black
81
17
48
33
12
28
16
M5
33
17.5
6.5
0.2540
1 pieces
100
Silver
81
17
48
33
12
28
16
M5
33
17.5
6.5
0.2540
1 pieces
125
Black
96
18
60
36
12
31
19.9
M6
42
18.3
6.5
0.4150
1 pieces
125
Silver
96
18
60
36
12
31
19.9
M6
42
18.3
6.5
0.4150
1 pieces
125
Black
96
18
60
36
14
31
19.9
M6
42
18.3
6.5
0.4150
1 pieces
125
Silver
96
18
60
36
14
31
19.9
M6
42
18.3
6.5
0.4150
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
23.40 €
( 27.85 € )
4 working days
23.40 €
( 27.85 € )
4 working days
23.40 €
( 27.85 € )
4 working days
23.40 €
( 27.85 € )
4 working days
26.28 €
( 31.27 € )
4 working days
26.28 €
( 31.27 € )
4 working days
26.28 €
( 31.27 € )
4 working days
26.28 €
( 31.27 € )
4 working days
29.68 €
( 35.32 € )
4 working days
29.68 €
( 35.32 € )
4 working days
29.68 €
( 35.32 € )
4 working days
29.68 €
( 35.32 € )
4 working days

More Information

Basic information

· Modern design

· black or silver

· Diverse connection possibilities

· Cylindrical Revolving Grip
