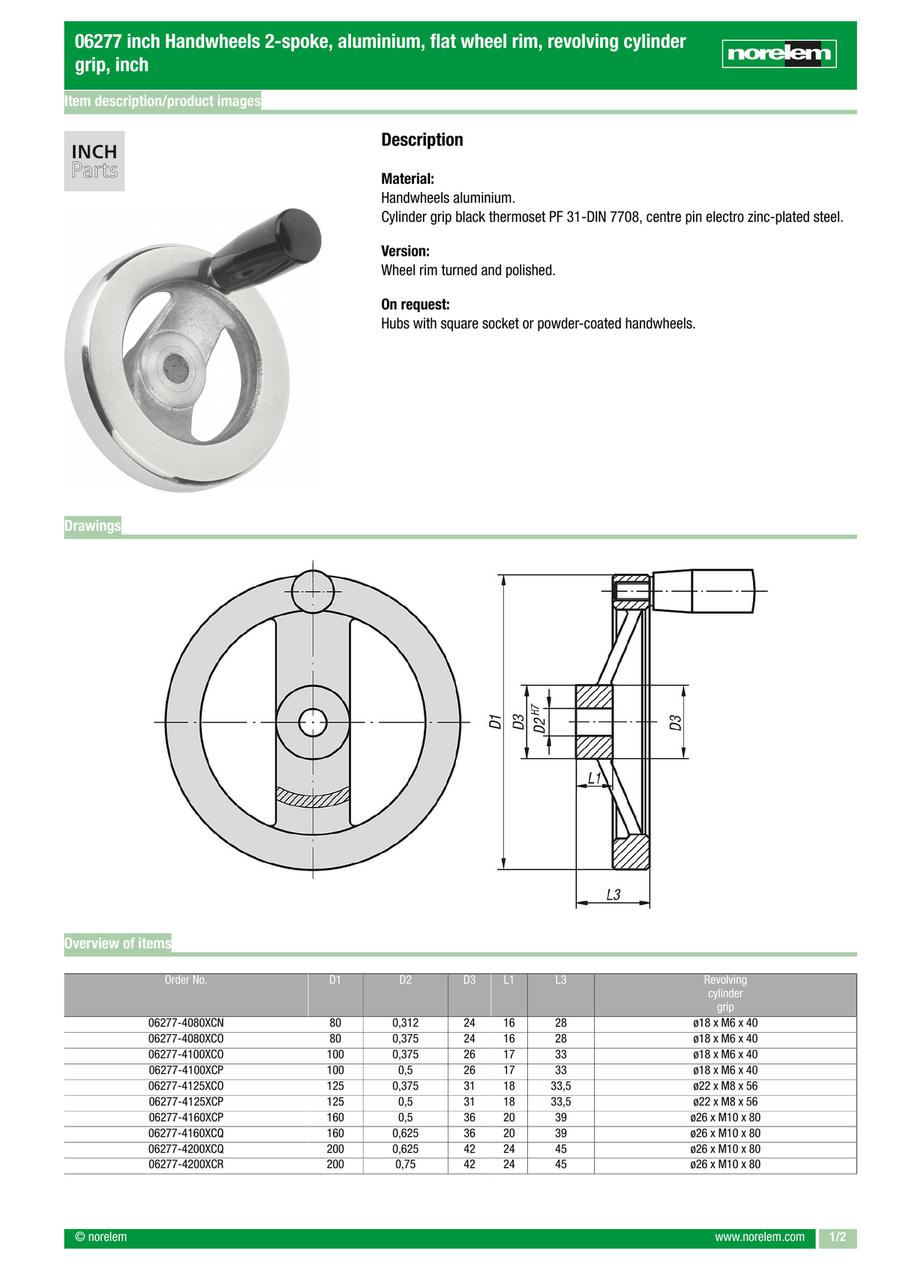

2-spoke handwheel, reamed hole, aluminium, revolving grip, inch (06277)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Wheel rim concentricity and axial run-out less than ISO tolerance (IT) 12
· Cylinder grip Duroplast, grip pin galvanised steel, wheel rim polished
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06277-4080XCN |
| 06277-4080XCO |
| 06277-4100XCO |
| 06277-4100XCP |
| 06277-4125XCO |
| 06277-4125XCP |
| 06277-4160XCP |
| 06277-4160XCQ |
| 06277-4200XCQ |
| 06277-4200XCR |
| 06277-4250XCR |
| 06277-4250XCV |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | D2=Fastening hole (mm) | D3 (mm) | Fixed cylinder grip (mm) | L1 (mm) | L3=height | Revolving cylinder grip | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
28.86 € | 1 | 4 Days | 80 | 0.312 | 24 | ø18 x M6 x 40 | 16 | 28 | ø18 x M6 x 40 | 0.1626 | ||
28.86 € | 1 | 4 Days | 80 | 0.375 | 24 | ø18 x M6 x 40 | 16 | 28 | ø18 x M6 x 40 | 0.1649 | ||
32.32 € | 1 | 4 Days | 100 | 0.375 | 26 | ø18 x M6 x 40 | 17 | 33 | ø18 x M6 x 40 | 0.2360 | ||
32.32 € | 1 | 4 Days | 100 | 0.5 | 26 | ø18 x M6 x 40 | 17 | 33 | ø18 x M6 x 40 | 0.2319 | ||
37.61 € | 1 | 4 Days | 125 | 0.375 | 31 | ø21 x M8 x 50 | 18 | 33.5 | ø22 x M8 x 56 | 0.3710 | ||
37.61 € | 1 | 4 Days | 125 | 0.5 | 31 | ø21 x M8 x 50 | 18 | 33.5 | ø22 x M8 x 56 | 0.3770 | ||
47.18 € | 1 | 4 Days | 160 | 0.5 | 36 | ø26 x M10 x 80 | 20 | 39 | ø26 x M10 x 80 | 0.6401 | ||
47.18 € | 1 | 4 Days | 160 | 0.625 | 36 | ø26 x M10 x 80 | 20 | 39 | ø26 x M10 x 80 | 0.6293 | ||
66.31 € | 1 | 4 Days | 200 | 0.625 | 42 | ø26 x M10 x 80 | 24 | 45 | ø26 x M10 x 80 | 1.0910 | ||
66.31 € | 1 | 4 Days | 200 | 0.75 | 42 | ø26 x M10 x 80 | 24 | 45 | ø26 x M10 x 80 | 1.0650 | ||
97.97 € | 1 | 4 Days | 250 | 0.75 | 48 | ø28 x M12 x 90 | 28 | 51 | ø31 x M12 x 102 | 1.4560 | ||
97.97 € | 1 | 4 Days | 250 | 0.875 | 48 | ø28 x M12 x 90 | 28 | 51 | ø31 x M12 x 102 | 1.5600 |
Loading...
Basic information
| Handle, Material | Aluminum | Component material | duroplast | Version 1 | reamed hole |
|---|---|---|---|---|---|
| Item | 2-Spoke Handwheel | Product type | revolving grip | RoHS | yes |
Configure
Basic Attributes
-
Outside diameter(Ø)
-
D2=Fastening hole(mm)
-
D3(mm)
-
Fixed cylinder grip(mm)
- ø18 x M6 x 40
- ø21 x M8 x 50
- ø26 x M10 x 80
- ø28 x M12 x 90
-
L1(mm)
-
L3=height
-
Revolving cylinder grip
- ø18 x M6 x 40
- ø22 x M8 x 56
- ø26 x M10 x 80
- ø31 x M12 x 102
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
