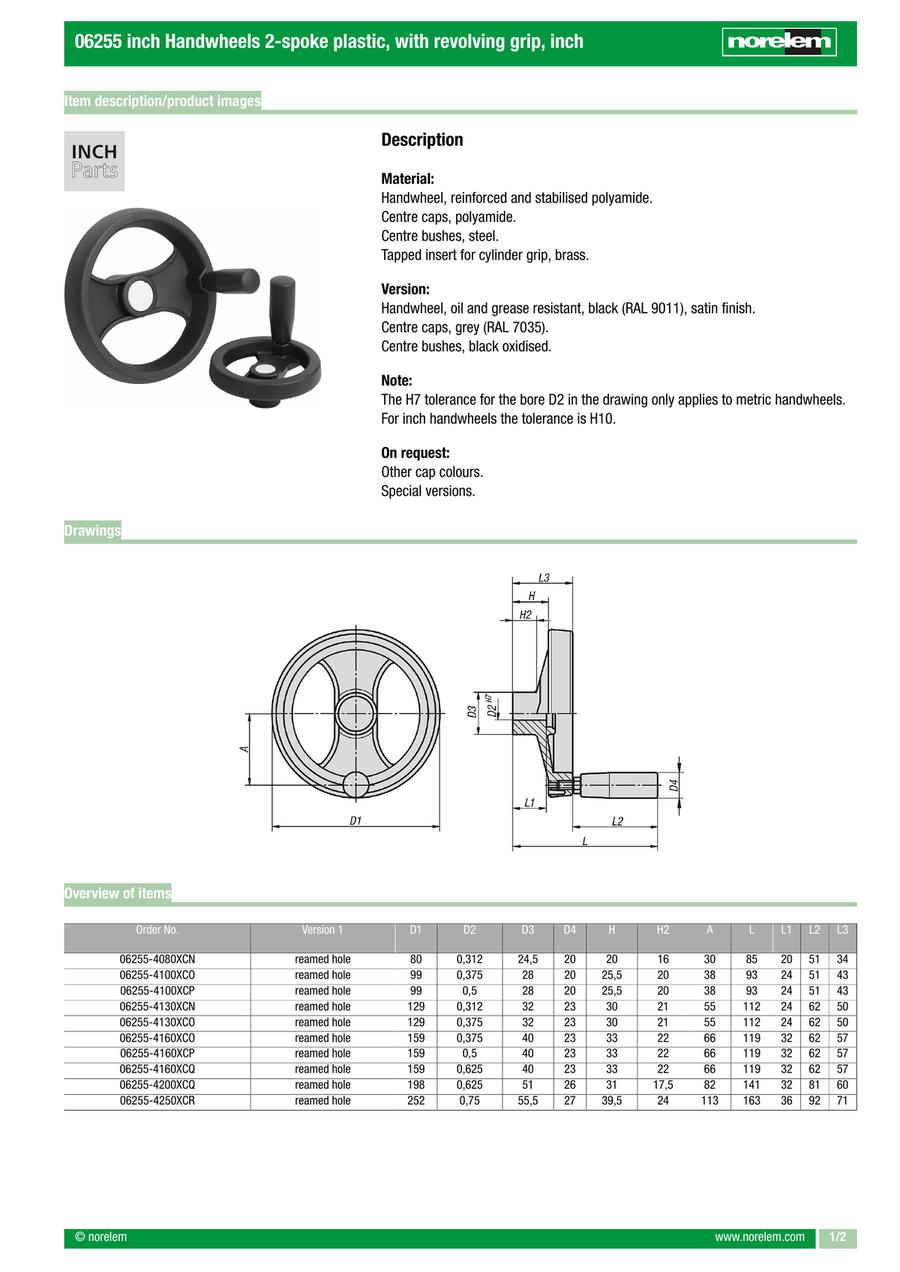

2-spoke handwheel, reamed hole, polyamide, revolving grip, inch (06255)
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Version: with and without keyway
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06255-4080XCN |
| 06255-4100XCO |
| 06255-4100XCP |
| 06255-4130XCN |
| 06255-4130XCO |
| 06255-4160XCO |
| 06255-4160XCP |
| 06255-4160XCQ |
| 06255-4200XCQ |
| 06255-4250XCR |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | A (mm) | D2=Fastening hole (mm) | D3 (mm) | D4 (mm) | L1 (mm) | H | H2 | L | L2 | L3=height | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18.46 € | 1 | 4 Days | 80 | 30 | 0.312 | 24.5 | 20 | 20 | 20 | 16 | 85 | 51 | 34 | 0.1275 | ||
20.33 € | 1 | 4 Days | 99 | 38 | 0.375 | 28 | 20 | 24 | 25.5 | 20 | 93 | 51 | 43 | 0.1867 | ||
20.33 € | 1 | 4 Days | 99 | 38 | 0.5 | 28 | 20 | 24 | 25.5 | 20 | 93 | 51 | 43 | 0.1756 | ||
24.12 € | 1 | 4 Days | 129 | 55 | 0.312 | 32 | 23 | 24 | 30 | 21 | 112 | 62 | 50 | 0.2892 | ||
24.12 € | 1 | 4 Days | 129 | 55 | 0.375 | 32 | 23 | 24 | 30 | 21 | 112 | 62 | 50 | 0.2950 | ||
31.49 € | 1 | 4 Days | 159 | 66 | 0.375 | 40 | 23 | 32 | 33 | 22 | 119 | 62 | 57 | 0.4210 | ||
31.49 € | 1 | 4 Days | 159 | 66 | 0.5 | 40 | 23 | 32 | 33 | 22 | 119 | 62 | 57 | 0.4430 | ||
31.49 € | 1 | 4 Days | 159 | 66 | 0.625 | 40 | 23 | 32 | 33 | 22 | 119 | 62 | 57 | 0.3994 | ||
39.30 € | 1 | 4 Days | 198 | 82 | 0.625 | 51 | 26 | 32 | 31 | 17.5 | 141 | 81 | 60 | 0.7011 | ||
51.60 € | 1 | 4 Days | 252 | 113 | 0.75 | 55.5 | 27 | 36 | 39.5 | 24 | 163 | 92 | 71 | 1.0720 |
Loading...
Basic information
| Component material | polyamide | Version 1 | reamed hole | Item | 2-Spoke Handwheel |
|---|---|---|---|---|---|
| Product type | revolving grip | RoHS | yes |
Configure
Basic Attributes
-
Outside diameter(Ø)
-
A(mm)
-
D2=Fastening hole(mm)
-
D3(mm)
-
D4(mm)
-
L1(mm)
-
H
-
H2
-
L
-
L2
-
L3=height
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
