NORELEM

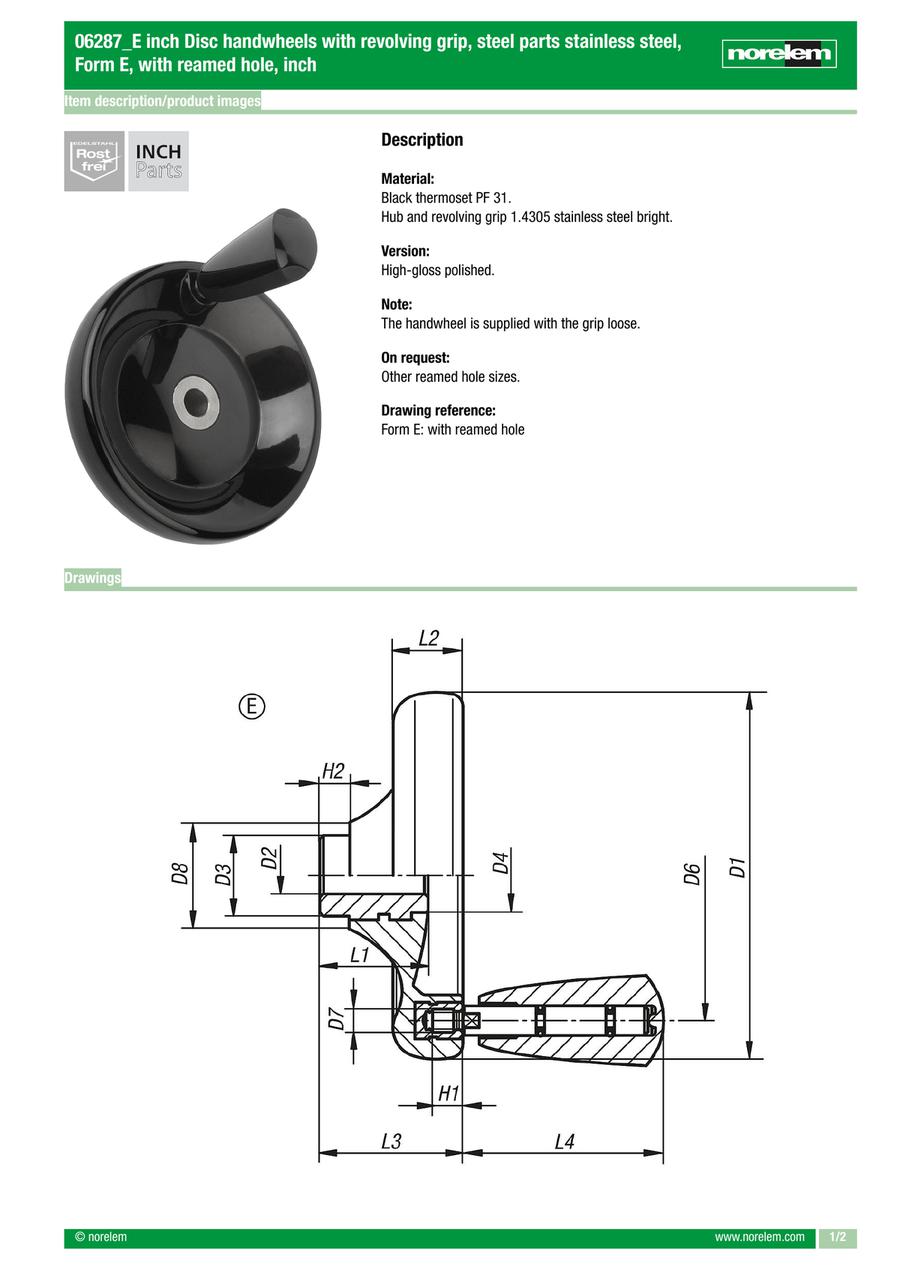

Disc handwheels with revolving grip, steel parts stainless steel, Form E, with reamed hole, inch (06287)

Disc handwheels with revolving grip, steel parts stainless steel, Form E, with reamed hole, inch (06287)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06287-3100XCM
    06287-3125XCO
    06287-3140XCP
    06287-3160XCQ
    06287-3160XCR

    Outside diameter

    (Ø)

    Size

    L1

    (mm)

    L2

    (mm)

    L3=height

    (mm)

    L4

    (mm)

    D2=Fastening hole

    (mm)

    D3

    (mm)

    D4

    (mm)

    D6

    (mm)

    D7

    (mm)

    D8

    (mm)

    H1

    (mm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    100
    1
    29.5
    19
    39
    54.7
    0.25
    22
    20
    79
    M6
    29
    9
    0.1358
    1 pieces
    125
    2
    34
    24
    46
    54.7
    0.375
    26
    21
    101
    M6
    34
    9
    0.1358
    1 pieces
    140
    3
    38.5
    27
    52
    82.2
    0.5
    30
    25
    110
    M8
    39
    12
    0.2153
    1 pieces
    160
    4
    41.3
    30.1
    57
    82.2
    0.625
    33
    30
    128
    M8
    43
    12
    0.8481
    1 pieces
    160
    4
    41.3
    30.1
    57
    82.2
    0.75
    33
    30
    128
    M8
    43
    12
    0.8217
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    74.20 €
    ( 88.30 € )
    4 working days
    81.65 €
    ( 97.16 € )
    4 working days
    91.11 €
    ( 108.42 € )
    4 working days
    104.18 €
    ( 123.97 € )
    4 working days
    104.18 €
    ( 123.97 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Control element for positioning and adjusting shafts and spindles

    · Application sectors: machine, plant, equipment construction and measuring devices

    · For opening, closing and operating valves in fittings, machine tools

    · Form E: with reamed hole

    · Hub, steel or stainless steel
