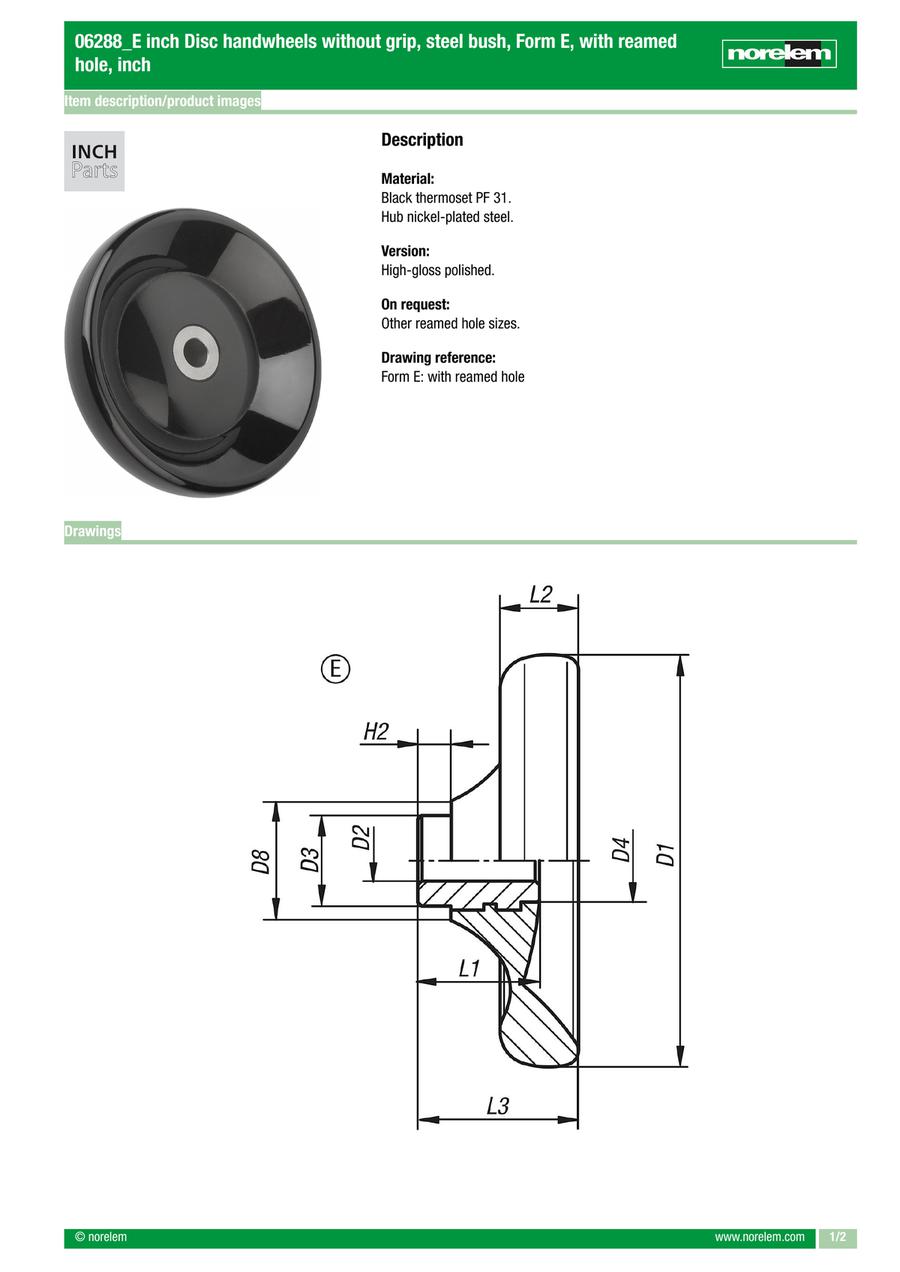

Disc handwheels without grip, steel bush, Form E, with reamed hole, inch (06288)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items

Outside diameter

(Ø)

Size

L1

(mm)

L2

(mm)

L3=height

(mm)

D2=Fastening hole

(mm)

D3

(mm)

D4

(mm)

D8

(mm)

Weight (ERP)

(kg)

Minimum order quantity
100
1
29.5
19
39
0.25
22
20
29
0.2065
1 pieces
125
2
34
24
46
0.375
26
21
34
0.3527
1 pieces
140
3
38.5
27
52
0.5
30
25
39
0.5409
1 pieces
160
4
41.3
30.1
57
0.625
33
30
43
0.7174
1 pieces
160
4
41.3
30.1
57
0.75
33
30
43
0.6876
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
29.57 €
( 35.19 € )
4 working days
37.03 €
( 44.07 € )
4 working days
42.64 €
( 50.74 € )
4 working days
57.33 €
( 68.22 € )
4 working days
57.33 €
( 68.22 € )
4 working days

More Information

Basic information

· Control element for positioning and adjusting shafts and spindles

· Application sectors: machine, plant, equipment construction and measuring devices

· For opening, closing and operating valves in fittings, machine tools

· Form E: with reamed hole

· Hub, steel or stainless steel
