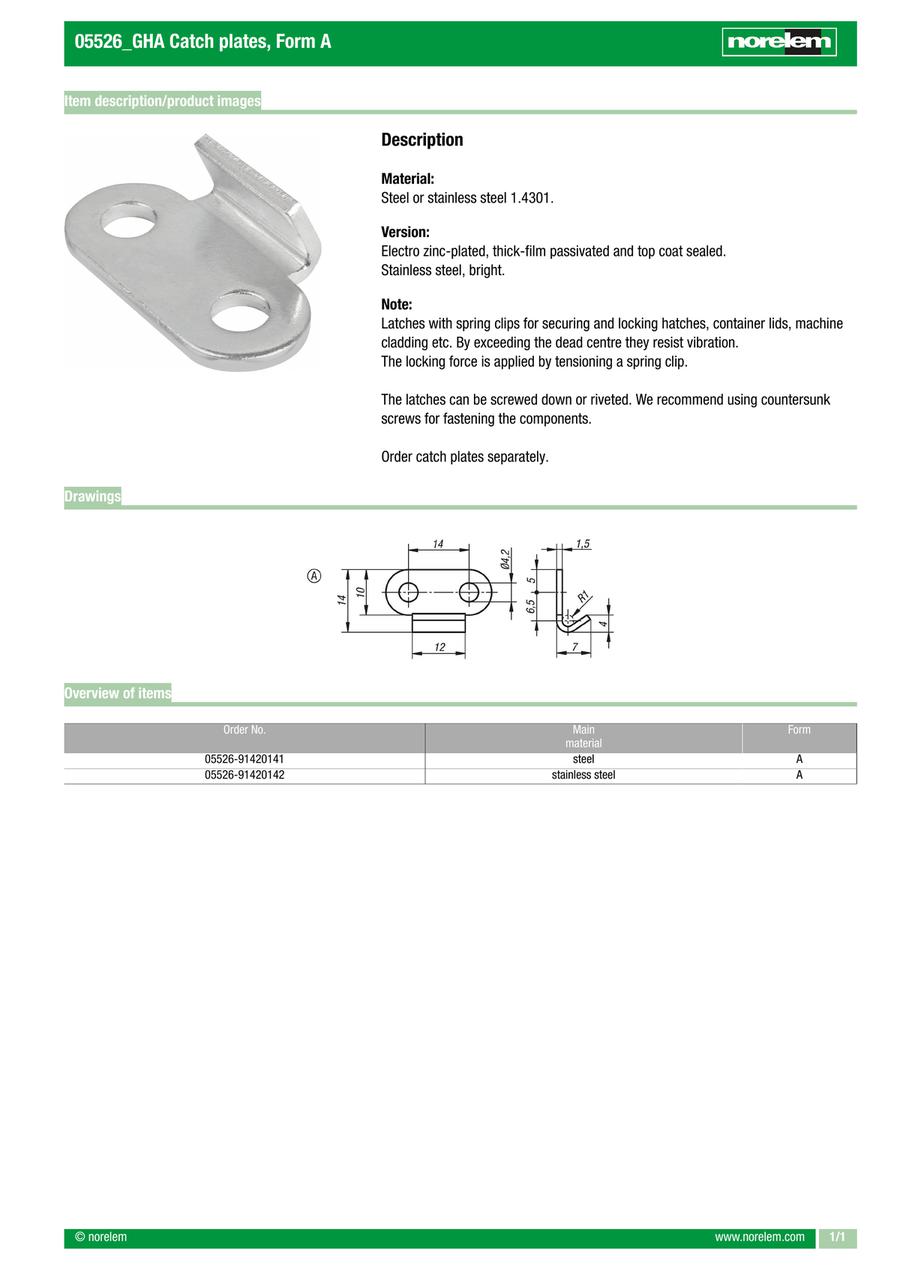

Catch plate for latch, with bracket, form A, steel or stainless steel (05526)
· Steel or stainless steel
· Vibration proof
· Can be screwed on
· Can be riveted
· Vibration proof
· Can be screwed on
· Can be riveted
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05526-91420141 |
| 05526-91420142 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Surface finish body | for Art. No. | PL Edelstahl | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|
0.15 € | 1 | 4 Days | steel | electro zinc-plated, thick-coat passivated and sealed with Top Coat | 05526-1550911 / 05331-1420491 | no | 0.0036 | ||
0.70 € | 1 | 4 Days | stainless steel | bright | 05526-1550912 / 05331-1420492 | yes | 0.0034 |
Loading...
Basic information
| Form | A | Version 2 | with bracket | Retaining force F1(N) | 250 |
|---|---|---|---|---|---|
| Item | Catch Plate | Version 1 | for latch | RoHS | yes |
Configure
Basic Attributes
-
Main material
-
Surface finish body
- bright
- electro zinc-plated, thick-coat passivated and sealed with Top Coat
-
for Art. No.
- 05526-1550912 / 05331-1420492
- 05526-1550911 / 05331-1420491
-
PL Edelstahl
- no
- yes
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
