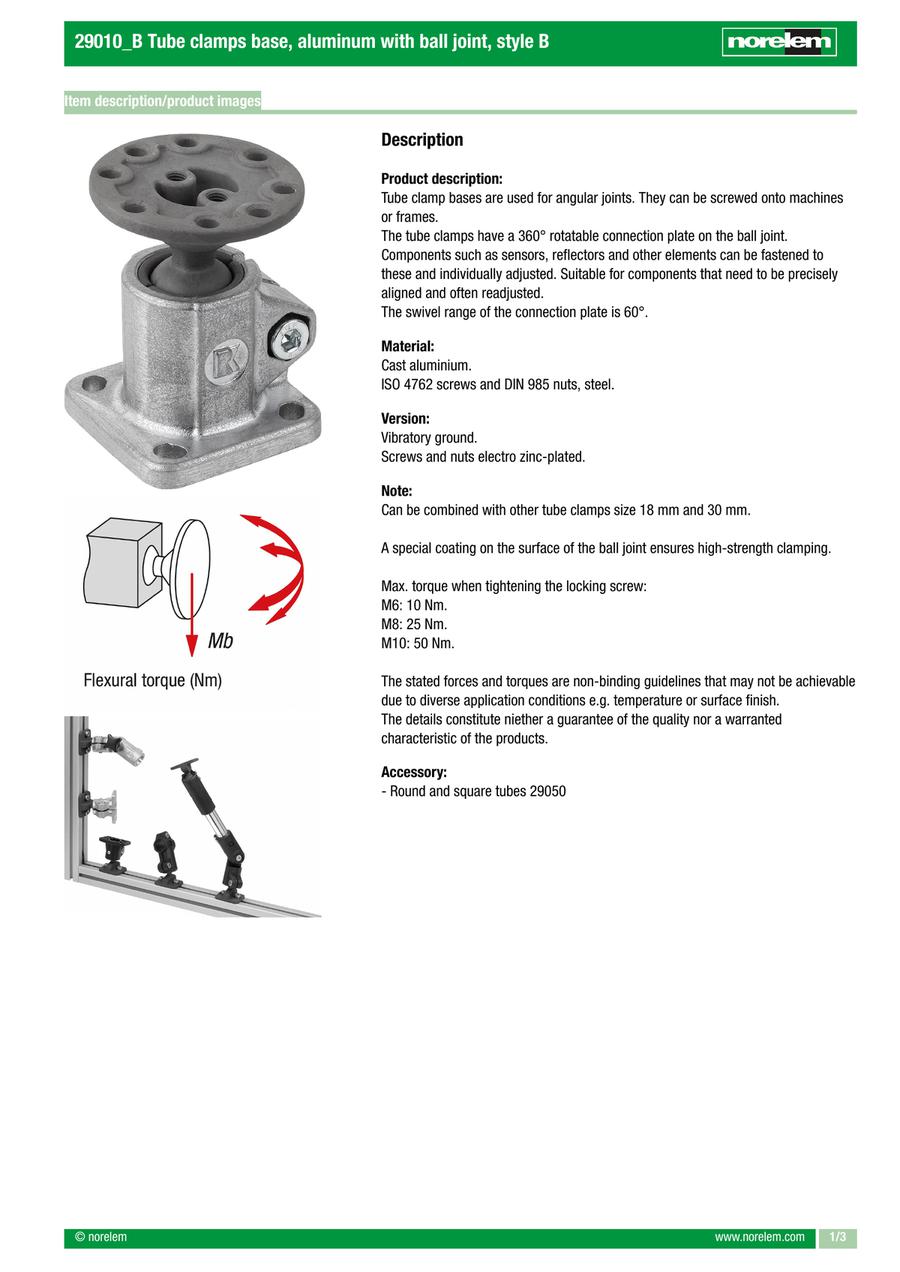

Tube clamp with foot, for round tubes, form B with ball joint, aluminium (29010)
· Flexible joints over universal connection plates
· 60° free swivel / 360° rotation
· High-strength clamping due to a special surface coating
· Application sectors: machine construction, safety equipment, housings, structures
· 60° free swivel / 360° rotation
· High-strength clamping due to a special surface coating
· Application sectors: machine construction, safety equipment, housings, structures
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
29010-5301
- Product data
- CAD data not available
Basic information
| Main material | aluminium | Surface finish body | tumbled | Component material | steel |
|---|---|---|---|---|---|
| Version 2 | for round tubes | D1 | 5.8 | B | 7 |
| C | 30 | Version 1 | with foot | Item | Tube Clamp |
| D | M6 | A=Internal diameter | 30.1 | R | 45.5 |
| K | 38.1 | P | 41.5 | Surface finish component | galvanised |
| Form | B | H | 16 | Form definition | with ball joint |
| Mb(Nm) | 40 | L=height | 80 | N | 8 |
| O | 39.5 | U | 42.5 | M= length | 60 |
| J | 34 | W | 30.2 | RoHS | yes |
| PL Edelstahl | no | Weight (ERP)(kg) | 0.2270 |
This page is Tube clamp with foot, for round tubes, form B with ball joint, aluminium (29010), part number 29010-5301.
You can find the detail information about specifications and dimensions on part number 29010-5301.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
