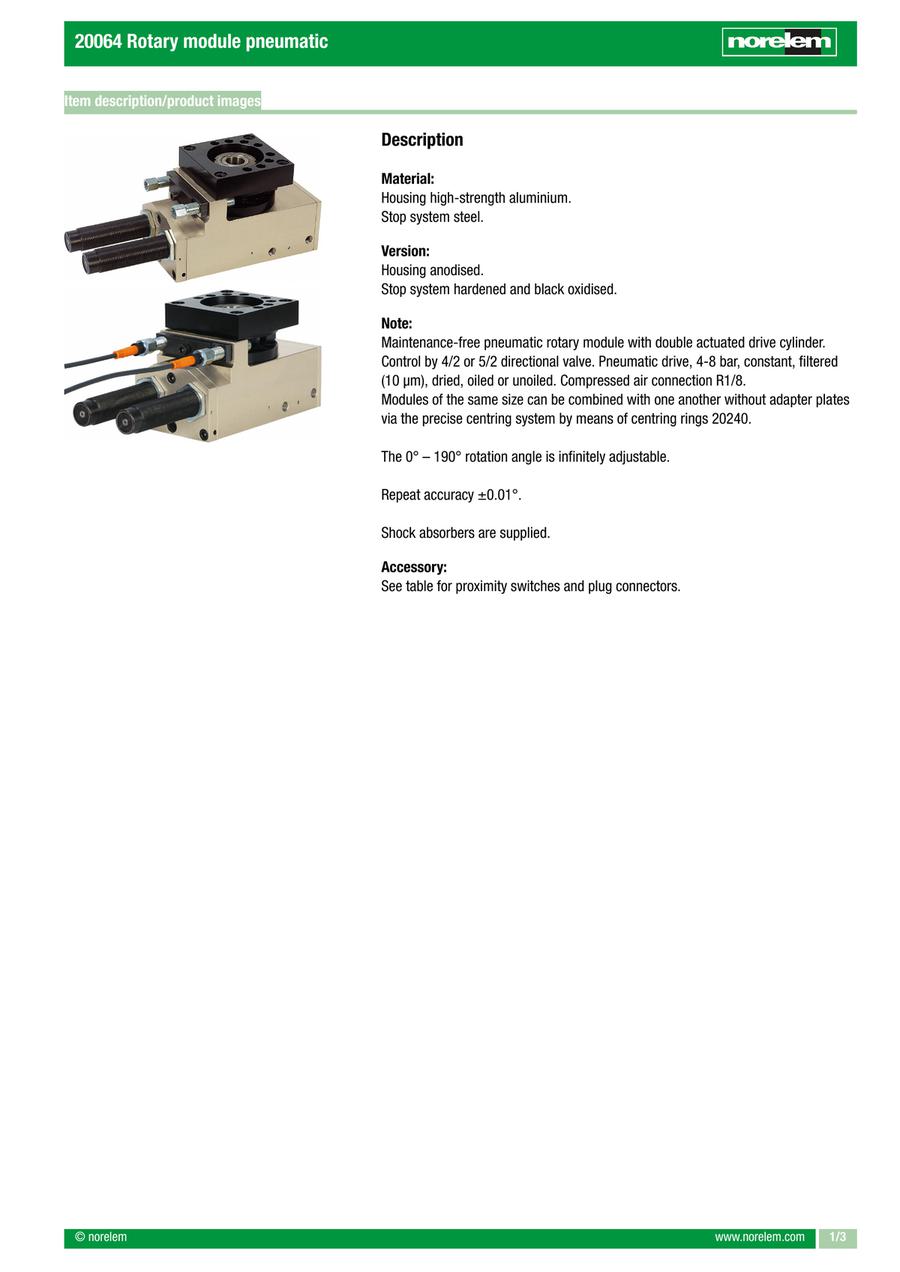

Rotary module pneumatic, aluminium (20064)
· With double-acting drive cylinder
· Rotation angle infinitely adjustable from 0° to 190°
· High fit precision between the modules via centring system
· Hardened, external and variable stop system
· Repeat accuracy ±0.01°
· Rotation angle infinitely adjustable from 0° to 190°
· High fit precision between the modules via centring system
· Hardened, external and variable stop system
· Repeat accuracy ±0.01°
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
20064-019
- Product data
- CAD data not available
Basic information
| Air consumption per cycle at 6 bar(ccm) | 161 | Axial load(N) | 1800 | Component material | steel |
|---|---|---|---|---|---|
| Cylinder Ø | 2 x 32 | Driving torque(Nm) | 12 | Item | Rotary Module |
| Main material | aluminium | Radial load(N) | 2400 | Rotation angle | 0 - 190 |
| Size | 9 | Suitable plug connector | 20950-010X2000 | Suitable proximitiy switch | 20915-030 |
| tilt moment max.(Nm) | 110 | Version 1 | pneumatic | RoHS | yes |
| Weight (ERP)(kg) | 4.6450 |
This page is Rotary module pneumatic, aluminium (20064), part number 20064-019.
You can find the detail information about specifications and dimensions on part number 20064-019.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
