Configure

Internal Diameter(mm)
- 5.3
- 6.4
- 8.2
- 8.4
- 10.5
- 13
Outer Diameter(mm)
- 12.5
- 13.5
- 16
- 22
- 25
- 36
Overall Length(mm)
- 31
- 34.8
- 36.8
- 46.5
- 49
- 49.5
- 50
- 52
- 53
- 60.3
- 61.3
- 61.8
- 72
Conforming wire size(AWG)
- 1/0
- 2
- 3/0
- 4
- 4/0
- 250 to 300MCM
- 400MCM
Representative Standard
- UL
- CSA
F Size(mm)
- 12.6
- 13.5
- 16.35
- 20
- 22
- 22.3
Number with packs(Piece)
- 10
- 20
- 50
- 100
Other standards
- JEM standard
Est. shipping days
- All
- Within 6 working days
- Within 15 working days

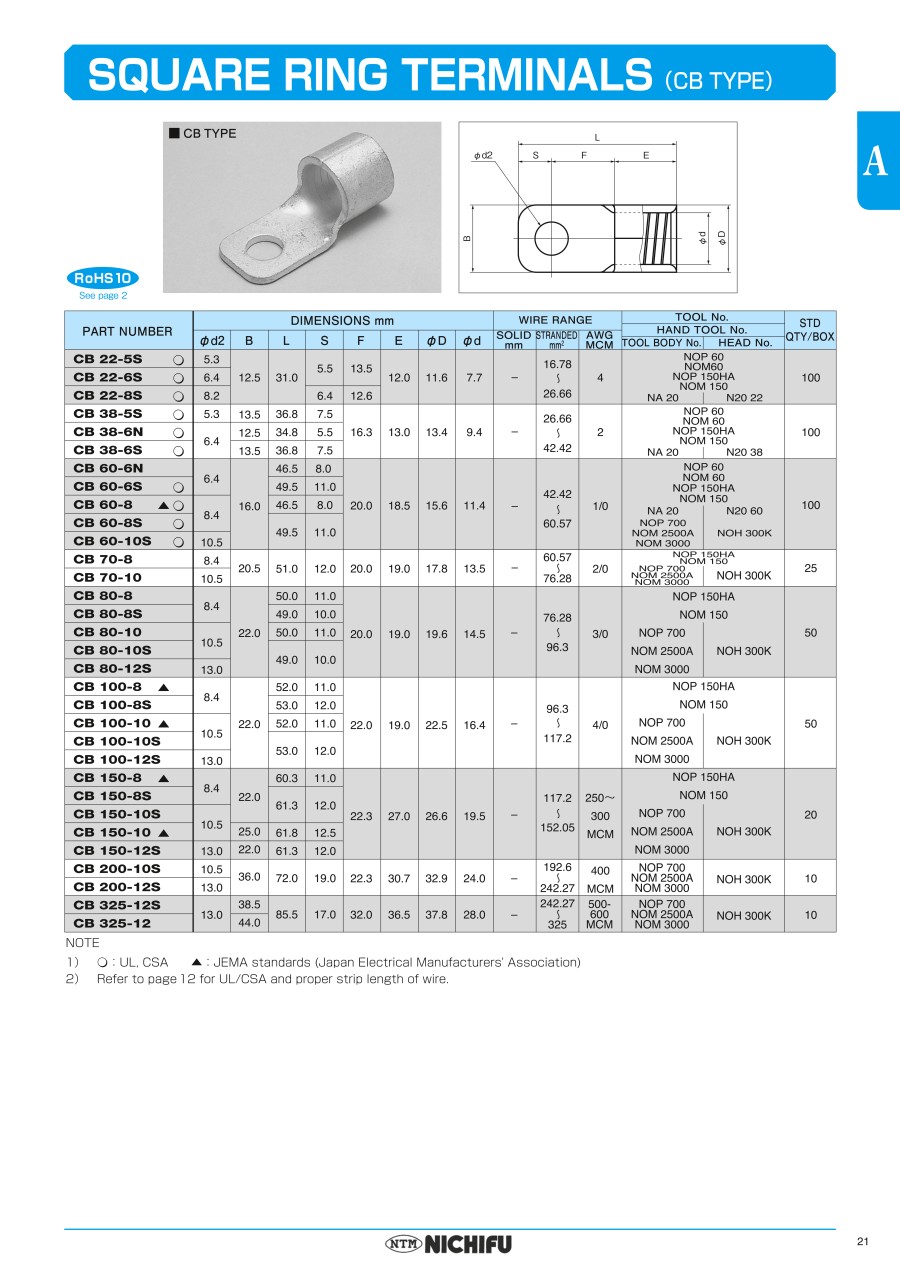

CB-Type Bare Crimped Terminal【10 to 100 pieces】

Catalog

Part number:

Still undefined. 27 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Internal Diameter

(mm)

Outer Diameter

(mm)

Overall Length

(mm)

Conforming wire size

(AWG)

Representative Standard

F Size

(mm)

Number with packs

(Piece)

Other standards

RoHS?

Minimum order quantity

5.3	12.5	31	4	UL / CSA	13.5	100	-	10	1 packs 100 pieces
6.4	12.5	31	4	UL / CSA	13.5	100	-	10	1 packs 100 pieces
8.2	12.5	31	4	UL / CSA	12.6	100	-	10	1 packs 100 pieces
5.3	13.5	36.8	2	UL / CSA	16.35	100	-	10	1 packs 100 pieces
6.4	12.5	34.8	2	UL / CSA	16.35	100	-	10	1 packs 100 pieces
6.4	13.5	36.8	2	UL / CSA	16.35	100	-	10	1 packs 100 pieces
6.4	16	46.5	1/0	-	20	100	-	-	1 packs 100 pieces
6.4	16	49.5	1/0	UL / CSA	20	100	-	-	1 packs 100 pieces
8.4	16	46.5	1/0	UL / CSA	20	100	JEM standard	10	1 packs 100 pieces
8.4	16	49.5	1/0	UL / CSA	20	100	-	10	1 packs 100 pieces
10.5	16	49.5	1/0	UL / CSA	20	100	-	10	1 packs 100 pieces
8.4	22	50	3/0	-	20	50	JEM standard	-	1 packs 50 pieces
10.5	22	50	3/0	-	20	50	JEM standard	-	1 packs 50 pieces
10.5	22	49	3/0	-	20	50	-	-	1 packs 50 pieces
13	22	49	3/0	-	20	50	-	-	1 packs 50 pieces
8.4	22	52	4/0	-	22	50	JEM standard	10	1 packs 50 pieces
8.4	22	53	4/0	-	22	50	-	-	1 packs 50 pieces
10.5	22	52	4/0	-	22	50	JEM standard	-	1 packs 50 pieces
10.5	22	53	4/0	-	22	50	-	-	1 packs 50 pieces
13	22	53	4/0	-	22	50	-	-	1 packs 50 pieces
8.4	22	60.3	250 to 300MCM	-	22.3	50	JEM standard	-	1 packs 50 pieces
8.4	22	61.3	250 to 300MCM	-	22.3	20	-	10	1 packs 20 pieces
10.5	25	61.8	250 to 300MCM	-	22.3	50	JEM standard	10	1 packs 20 pieces
10.5	22	61.3	250 to 300MCM	-	22.3	20	-	-	1 packs 20 pieces
13	22	61.3	250 to 300MCM	-	22.3	20	-	10	1 packs 20 pieces
10.5	36	72	400MCM	-	22.3	10	-	10	1 packs 10 pieces
13	36	72	400MCM	-	22.3	10	-	-	1 packs 10 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

100.45 € ( 119.54 € )	6 working days
100.45 € ( 119.54 € )	6 working days
100.45 € ( 119.54 € )	6 working days
129.42 € ( 154.01 € )	6 working days
129.42 € ( 154.01 € )	6 working days
129.43 € ( 154.02 € )	6 working days
142.05 € ( 169.04 € )	6 working days
153.02 € ( 182.09 € )	6 working days
153.02 € ( 182.09 € )	6 working days
153.02 € ( 182.09 € )	6 working days
153.02 € ( 182.09 € )	6 working days
207.16 € ( 246.52 € )	6 working days
185.48 € ( 220.72 € )	15 working days
185.48 € ( 220.72 € )	6 working days
185.48 € ( 220.72 € )	15 working days
224.80 € ( 267.51 € )	6 working days
226.16 € ( 269.13 € )	6 working days
224.80 € ( 267.51 € )	6 working days
226.16 € ( 269.13 € )	6 working days
224.80 € ( 267.51 € )	6 working days
335.75 € ( 399.54 € )	6 working days
143.80 € ( 171.12 € )	6 working days
143.87 € ( 171.21 € )	6 working days
136.36 € ( 162.27 € )	6 working days
143.80 € ( 171.12 € )	6 working days
141.67 € ( 168.59 € )	6 working days
134.28 € ( 159.79 € )	6 working days

More Information

Basic information

Basic information

[Features]
- A bare crimped terminal for low-pressure switches.
