Mini-Fit Jr.™ Terminal (5558)
- Volume Discount
Molex connectors for wire-to-wire and board-to-board are available in both single row and double row types. Power connector for a maximum rated current of 13.0 A. (Conforming housing: 5559)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
5558GSL7F
Basic information
| Applicable pin/contact | Male (plug) | Application | Cable Connection | Allowable Current(A) | 9 |
|---|---|---|---|---|---|
| Allowable Voltage(V) | 600 | Wire connection method | Crimp | Conforming housing | 5559 |
| Applicable size AWG | 18–24 | Terminal shape | Individual | Mating Partner | 5556 |
This page is Mini-Fit Jr.™ Terminal (5558), part number 5558GSL7F.

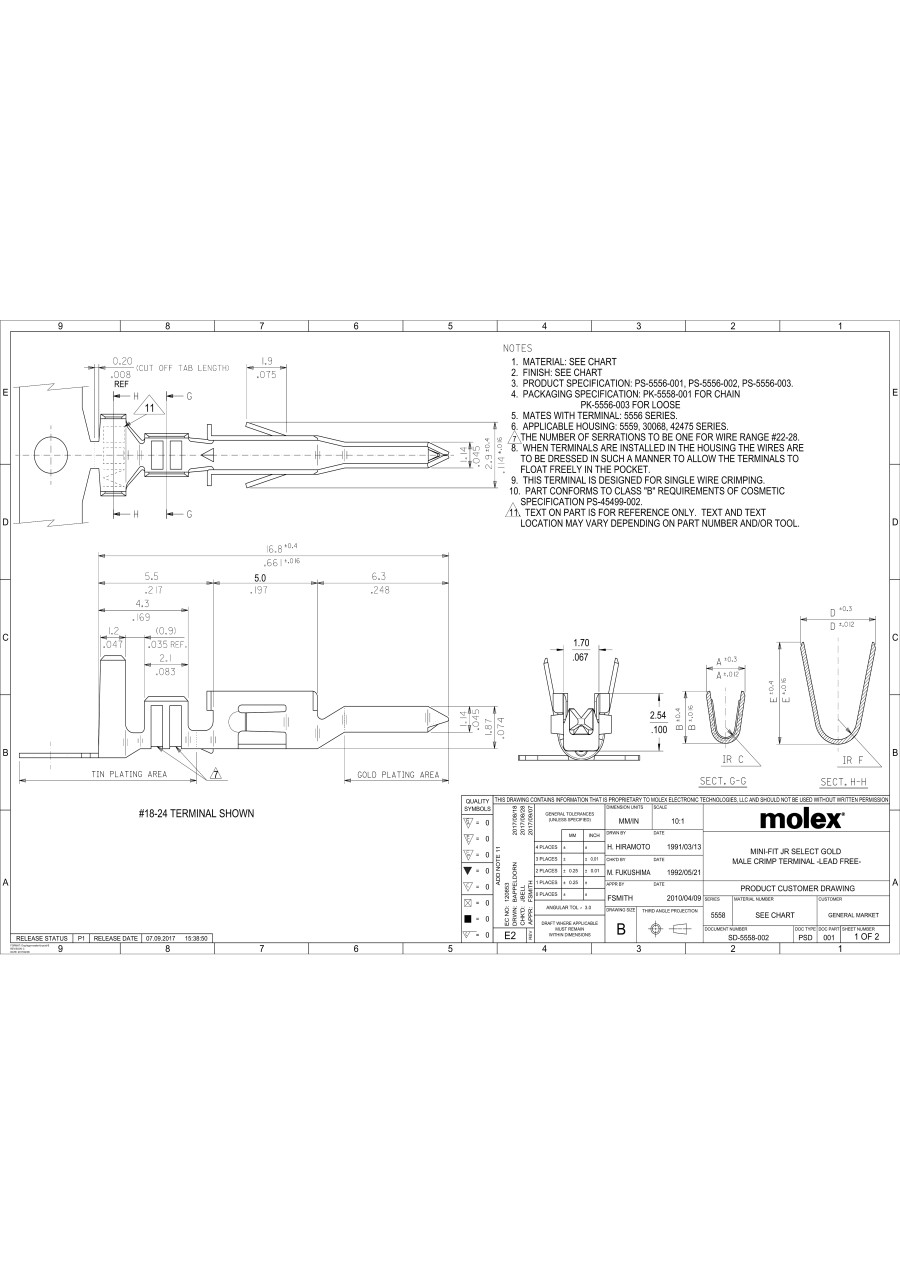

You can find the detail information about specifications and dimensions on part number 5558GSL7F.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
