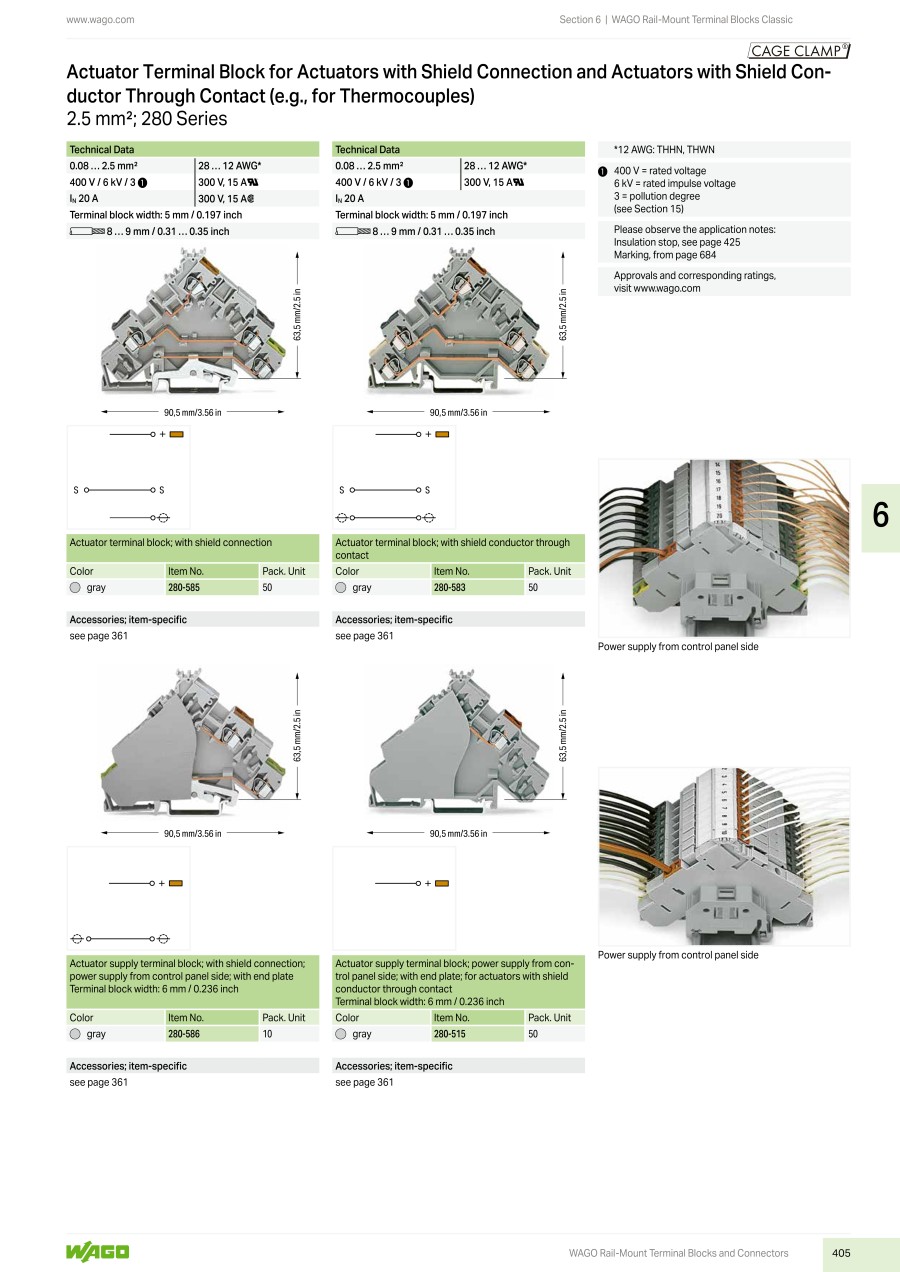

Actuator supply terminal block 280【10-20 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 280-515 |
| 280-556 |
| 280-568 |
| 280-578 |
| 280-592 |
| 280-593 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Number of pins (Pole) | Product size (height) (mm) | Product size (width) (mm) | Clamp width (mm) | No. of rows | Pins per row | Contamination level | Connector features | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
114.37 € | 20 Pieces Per Package | 1 pack | Available | 33 Days | 1 | 63.50 | 6 | 6 | 1 | 1 | - | - | ||
71.55 € | 20 Pieces Per Package | 1 pack | Available | 32 Days | 1 | 55.50 | 6 | 6 | 1 | 1 | 3 | - | ||
71.55 € | 20 Pieces Per Package | 1 pack | Available | 7 Days | 1 | 55.50 | 6 | 6 | 1 | 1 | 3 | - | ||
147.05 € | 20 Pieces Per Package | 1 pack | Available | 8 Days | 2 | 63.50 | 6 | 6 | 2 | - | 3 | + PG connector | ||
26.77 € | 10 Pieces Per Package | 1 pack | Available | 8 Days | 1 | 55.50 | 5 | 5 | 1 | 1 | 3 | - | ||
67.20 € | 10 Pieces Per Package | 1 pack | Available | 8 Days | 2 | 63.50 | 5 | 5 | 2 | - | 3 | + PG connector |
Loading...
Basic information
| Stripping length (max.)(mm) | 9 | Min. stripping length(mm) | 8 | Nominal current(A) | 20 |
|---|---|---|---|---|---|
| Nominal voltage(V) | 400 | Min. cross section (flexible)(mm²) | 0.08 | Max. cross section (flexible)(mm²) | 2.50 |
| Min. cross section (inflexible)(mm²) | 0.08 | Max. cross section (inflexible)(mm²) | 2.5 | AWG (min.) | 28 |
| AWG max. | 14 | Colour | Grey | Connector type (category) | Actuator terminal |
| Configuration | L | Connection (components) | Pull spring | Industrial goods | Yes |
Configure
Basic Attributes
-
Number of pins(Pole)
-
Product size (height)(mm)
-
Product size (width)(mm)
-
Clamp width(mm)
-
No. of rows
-
Pins per row
-
Contamination level
- 3
-
Connector features
- + PG connector
Filter by standard shipping days
-
- All
- 7 Days or Less
- 8 Days or Less
- 32 Days or Less
- 33 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
