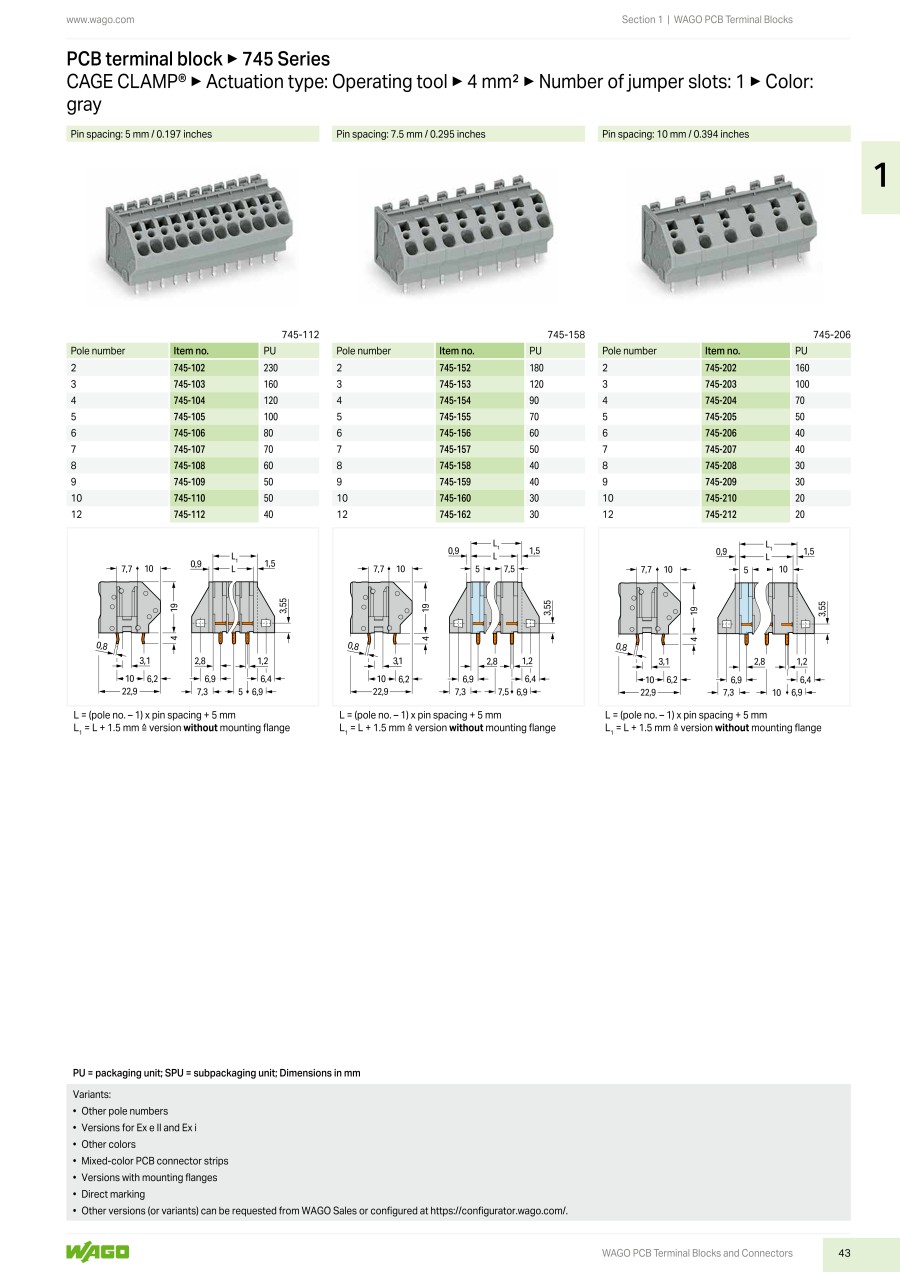

Spring-loaded terminal 4.00 mm², 745【40-90 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 745-112 |
| 745-154 |
| 745-3159 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Number of pins (Pole) | Contact spacing (mm) | Min. stripping length (mm) | Pins per row | Nominal current (A) | Nominal voltage (V) | Product size (length) (mm) | Product size (width) (mm) | Weight (g) | Actuation direction | Insulation material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
315.92 € | 40 Pieces Per Package | 1 pack | Available | 30 Days | 12 | 5 | 8 | 12 | - | 320 | 22.90 | 61.50 | - | - | - | ||
283.12 € | 90 Pieces Per Package | 1 pack | Available | 7 Days | 4 | 7.5 | 12 | 4 | 24 | 630 | 22.90 | 29.00 | 9.929 | Parallel (to the PCB) | Polyamide 6.6 | ||
311.55 € | 48 Pieces Per Package | 1 pack | Available | 30 Days | 9 | 7.5 | 12 | 9 | 24 | 630 | 19.40 | 66.50 | 20.086 | Parallel (to the PCB) | Polyamide 6.6 |
Loading...
Basic information
| Color | Grey | AWG max. | 12 | AWG (min.) | 28 |
|---|---|---|---|---|---|
| Max. cross section (inflexible)(mm²) | 4.00 | Min. cross section (inflexible)(mm²) | 0.08 | Max. cross section (flexible)(mm²) | 4.00 |
| Min. cross section (flexible)(mm²) | 0.08 | Stripping length (max.)(mm) | 9 | No. of rows | 1 |
| Product size (height)(mm) | 23.00 | Series (connectors) | 745 | Connection (components) | |
| PCB terminal features | + CAGE CLAMP® | PCB terminal type (category) | Spring-loaded terminal | Connector orientation | At an angle (to the PCB) |
| Contact material | Cathode copper | Contact surface | Tin plated | Industrial goods | Yes |
| Wire protection | Yes |
Configure
Basic Attributes
-
Number of pins(Pole)
-
Contact spacing(mm)
-
Min. stripping length(mm)
-
Pins per row
-
Nominal current(A)
-
Nominal voltage(V)
-
Product size (length)(mm)
-
Product size (width)(mm)
-
Weight(g)
-
Actuation direction
- Parallel (to the PCB)
-
Insulation material
- Polyamide 6.6
Filter by standard shipping days
-
- All
- 7 Days or Less
- 30 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
