Configure

Number of pins(Pole)
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 12
Color
- Black
- Light grey
Pins per row
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 12
Product size (height)(mm)
- 8.9
- 10.2
- 11.3
- 11.5
Product size (length)(mm)
- 7.8
- 8.9
Product size (width)(mm)
- 7.5
- 10
- 12.5
- 15
- 17.5
- 20
- 22.5
- 25
- 27.5
- 32.5
Connector orientation
- Parallel (to the PCB)
- Perpendicular (to the PCB)
Connector type
- Plug, right angle
- Plug, straight
Insulation material
- Polyamide
- Polyphthalamide (PPA GF)
Est. shipping days
- All
- Within 4 working days
- Within 8 working days
- Within 25 working days
- Within 26 working days

WAGO

THR male header 733【100 to 290 pieces】

Click image to view enlarged image

Catalog

Part number:

Still undefined. 29 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Number of pins

(Pole)

Color

Pins per row

Product size (height)

(mm)

Product size (length)

(mm)

Product size (width)

(mm)

Connector orientation

Connector type

Insulation material

Minimum order quantity

Data sheet	2	Black	2	11.3	7.8	7.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	-	-	-	-	-	-	-	-	-	1 packs 290 pieces
Data sheet	3	Black	3	11.3	7.8	10	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	3	Black	3	11.3	7.8	10	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 290 pieces
Data sheet	4	Black	4	11.3	7.8	12.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	4	Black	4	11.3	7.8	12.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 290 pieces
Data sheet	5	Black	5	11.3	7.8	15	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	5	Black	5	11.3	7.8	15	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 290 pieces
Data sheet	6	Black	6	11.3	7.8	17.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	6	Black	6	11.3	7.8	17.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 290 pieces
Data sheet	7	Black	7	11.3	7.8	20	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	7	Black	7	8.9	7.8	20	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 290 pieces
Data sheet	8	Black	8	11.3	7.8	22.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	8	Black	8	8.9	7.8	22.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 290 pieces
Data sheet	9	Black	9	11.3	7.8	25	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	10	Black	10	11.3	7.8	27.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	10	Black	10	11.3	7.8	27.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 290 pieces
Data sheet	12	Black	12	11.3	7.8	32.5	Perpendicular (to the PCB)	Plug, straight	Polyphthalamide (PPA GF)	1 packs 100 pieces
Data sheet	2	Black	2	10.2	8.9	7.5	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	3	Black	3	10.2	8.9	10	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	4	Black	4	10.2	8.9	12.5	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	5	Black	5	10.2	8.9	15	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	6	Black	6	10.2	8.9	17.5	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	7	Light grey	7	11.5	8.9	20	Parallel (to the PCB)	Plug, right angle	Polyamide	1 packs 200 pieces
Data sheet	7	Black	7	10.2	8.9	20	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	8	Black	8	10.2	8.9	22.5	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	9	Black	9	10.2	8.9	25	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	10	Black	10	10.2	8.9	27.5	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 200 pieces
Data sheet	12	Black	12	10.2	8.9	32.5	Parallel (to the PCB)	Plug, right angle	Polyphthalamide (PPA GF)	1 packs 100 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

123.24 € ( 146.66 € )	26 working days
301.40 € ( 358.67 € )	26 working days
173.65 € ( 206.64 € )	26 working days
368.63 € ( 438.67 € )	26 working days
229.68 € ( 273.32 € )	8 working days
458.27 € ( 545.34 € )	26 working days
268.89 € ( 319.98 € )	8 working days
521.01 € ( 620.00 € )	26 working days
341.73 € ( 406.66 € )	8 working days
610.64 € ( 726.66 € )	8 working days
391.04 € ( 465.34 € )	25 working days
682.35 € ( 812.00 € )	26 working days
435.85 € ( 518.66 € )	26 working days
756.31 € ( 900.01 € )	8 working days
487.40 € ( 580.01 € )	26 working days
547.89 € ( 651.99 € )	26 working days
913.16 € ( 1,086.66 € )	8 working days
323.81 € ( 385.33 € )	8 working days
123.24 € ( 146.66 € )	26 working days
173.65 € ( 206.64 € )	26 working days
229.68 € ( 273.32 € )	8 working days
268.89 € ( 319.98 € )	8 working days
341.73 € ( 406.66 € )	8 working days
323.81 € ( 385.33 € )	8 working days
391.04 € ( 465.34 € )	26 working days
530.17 € ( 630.90 € )	4 working days
487.40 € ( 580.01 € )	26 working days
547.89 € ( 651.99 € )	26 working days
323.81 € ( 385.33 € )	8 working days

Catalog

Products homepage

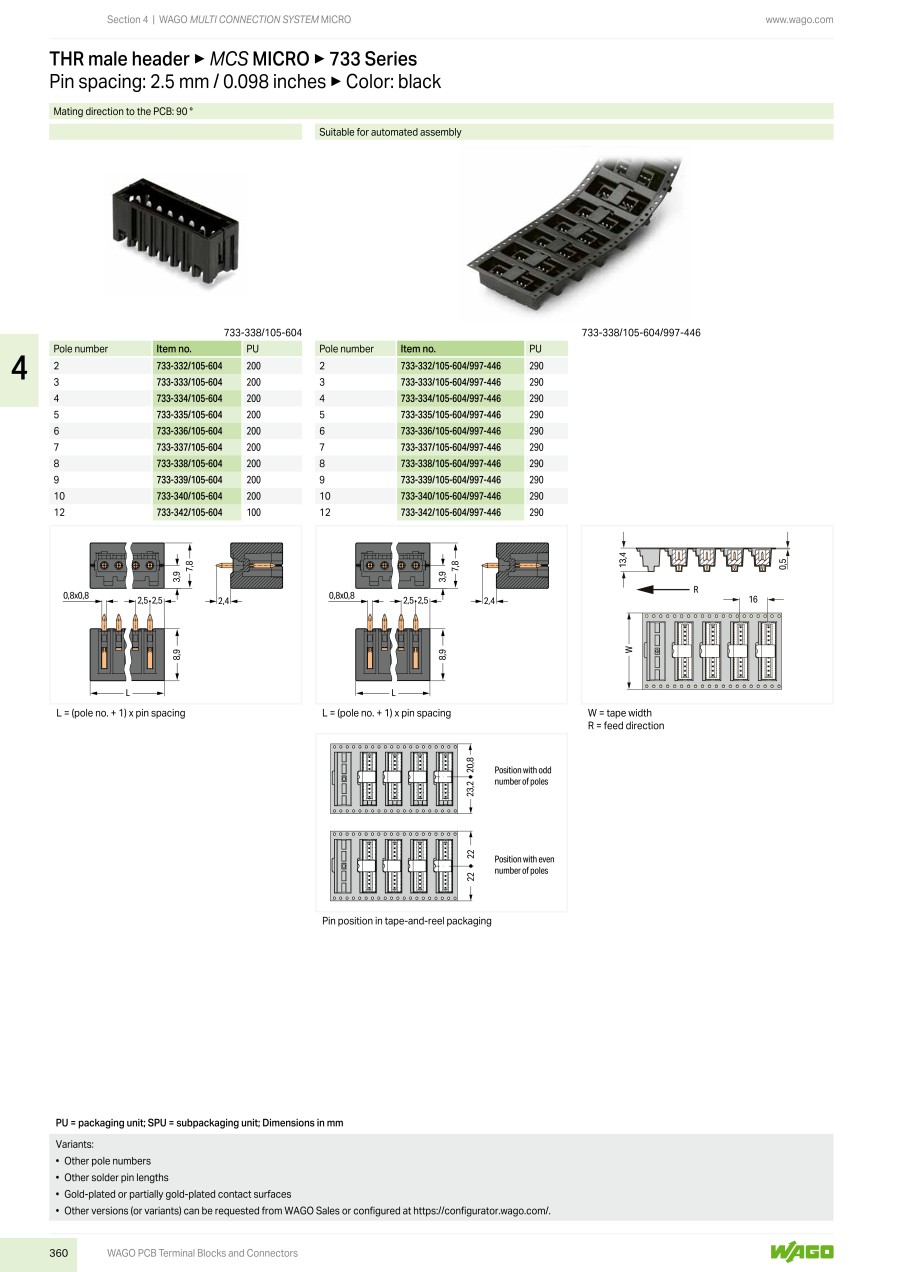

Catalog (2-page spread)
