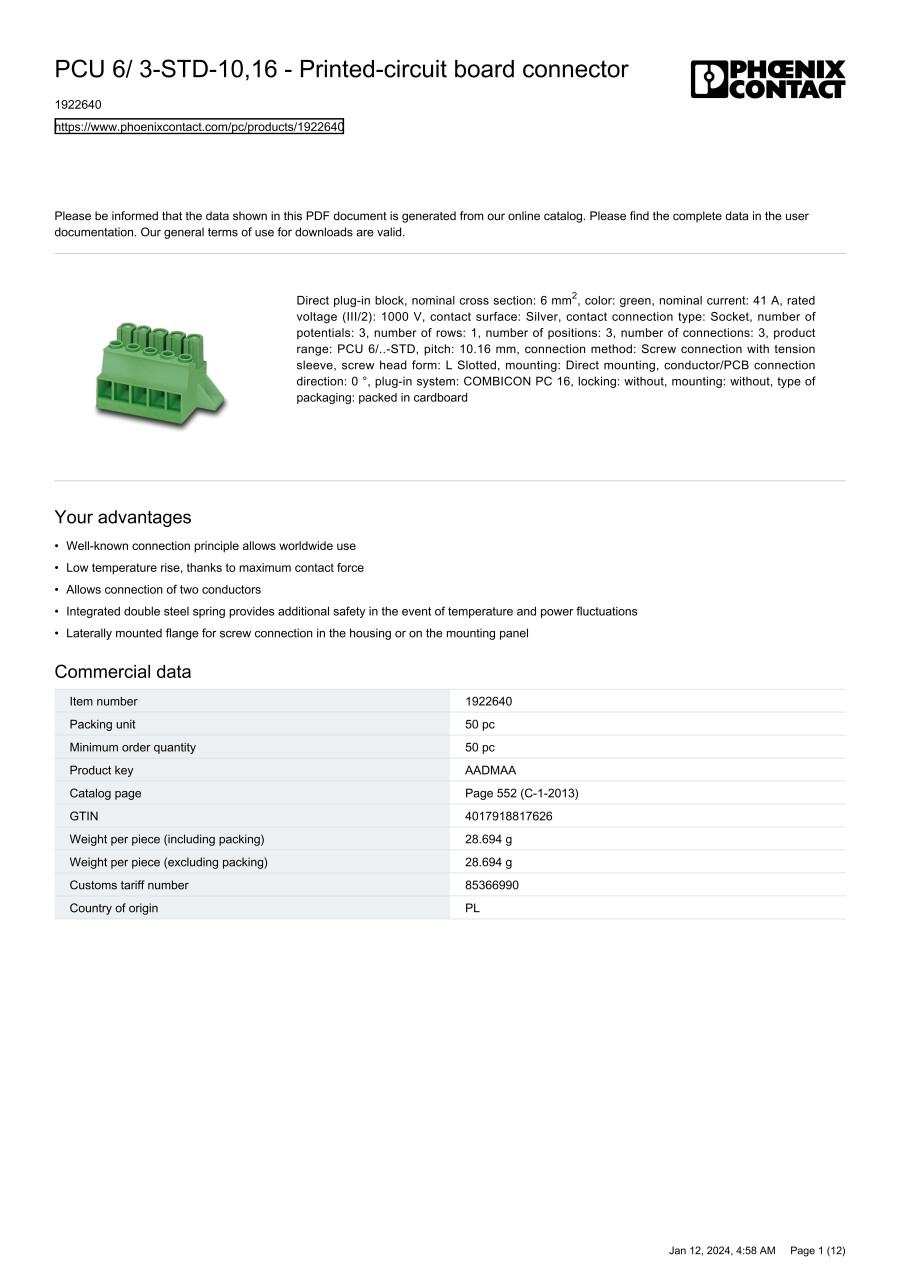

Printed-circuit board connector PCU
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
1922640
Basic information
| Total number of pins(Pole) | 3 | Color | Green | AWG | 20 - 7 |
|---|---|---|---|---|---|
| Connector cross section(mm²) | 0.5 - 10 | Contact spacing(mm) | 10.16 | Nominal voltage(V) | 1000 |
| Nominal current(A) | 41 | No. of rows | 1 | Pins per row | 3 |
| Product size (height)(mm) | 33.90 | Product size (length)(mm) | 32.80 | Product size (width)(mm) | 50.64 |
| Stripping length(mm) | 12.00(max.) | Connection (components) | Plug | Connector features | + sleeve |
| Connector type | Plug, right angle | Connector type (category) | wire-to-board | Contact material | Silver plated |
| Pin strip type (category) | Pin enclosure - cable | Series (connectors) | PCU | Industrial goods | Yes |
This page is Printed-circuit board connector PCU, part number 1922640.
You can find the detail information about specifications and dimensions on part number 1922640.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
