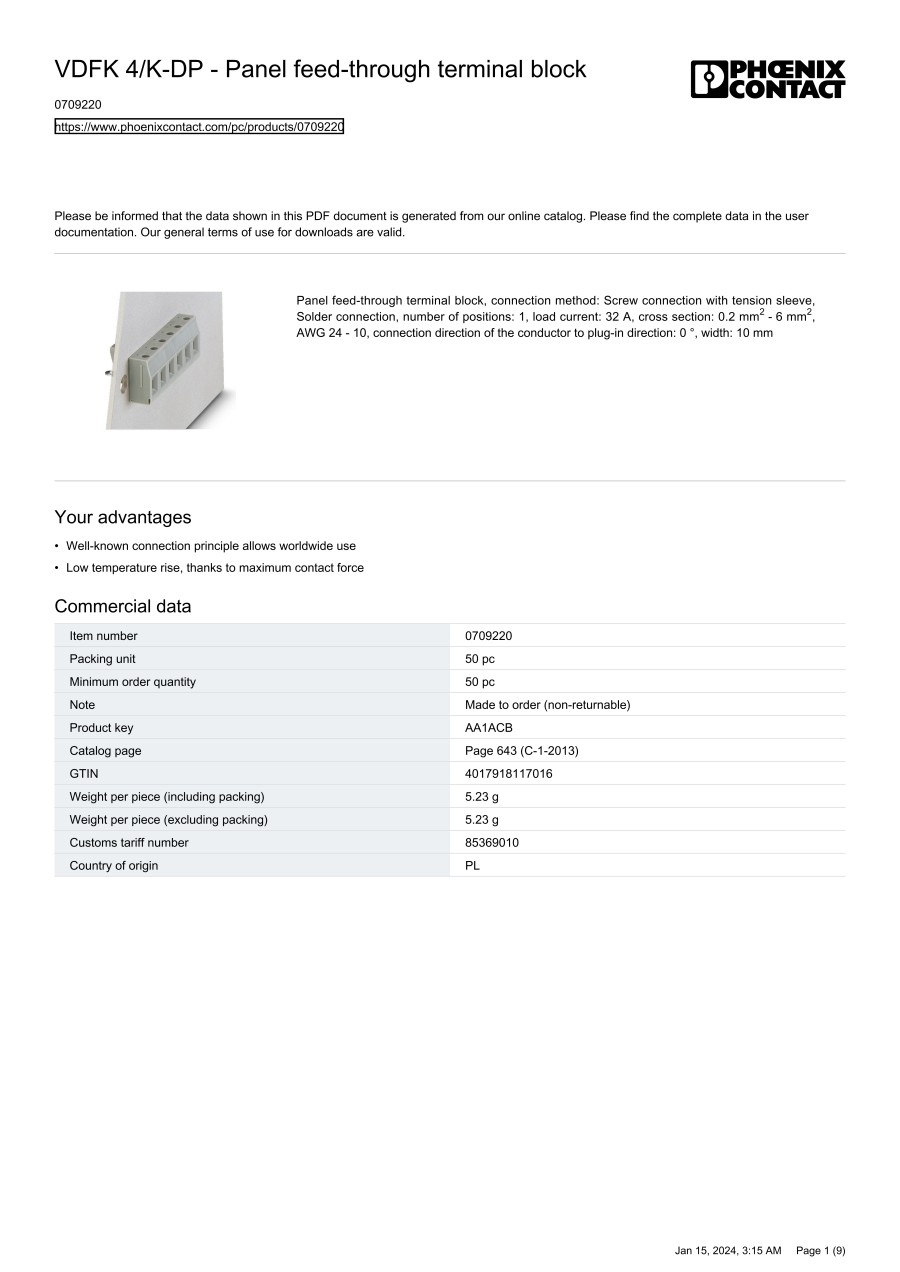

Feed-through terminal block VDFK 4 / K-DP【50 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
0709220
Basic information
| Total number of pins(Pole) | 1 | Color | Grey | AWG | 24 - 10 |
|---|---|---|---|---|---|
| Nominal voltage(V) | 500 | Nominal current(A) | 32 | No. of rows | 1 |
| Product size (height)(mm) | 20.60 | Product size (length)(mm) | 10.00 | Product size (width)(mm) | 29.50 |
| Stripping length(mm) | 8.00(max.) | Connection (components) | Solder tag | Connector features | for enclosures |
| Connector orientation | Perpendicular (to the PCB) | Connector type | Socket, build-in | Connector type (category) | wire-to-board |
| Pin strip type (category) | Feedthrough terminal | Series (connectors) | VDFK | Industrial goods | Yes |
This page is Feed-through terminal block VDFK 4 / K-DP, part number 0709220.
You can find the detail information about specifications and dimensions on part number 0709220.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
