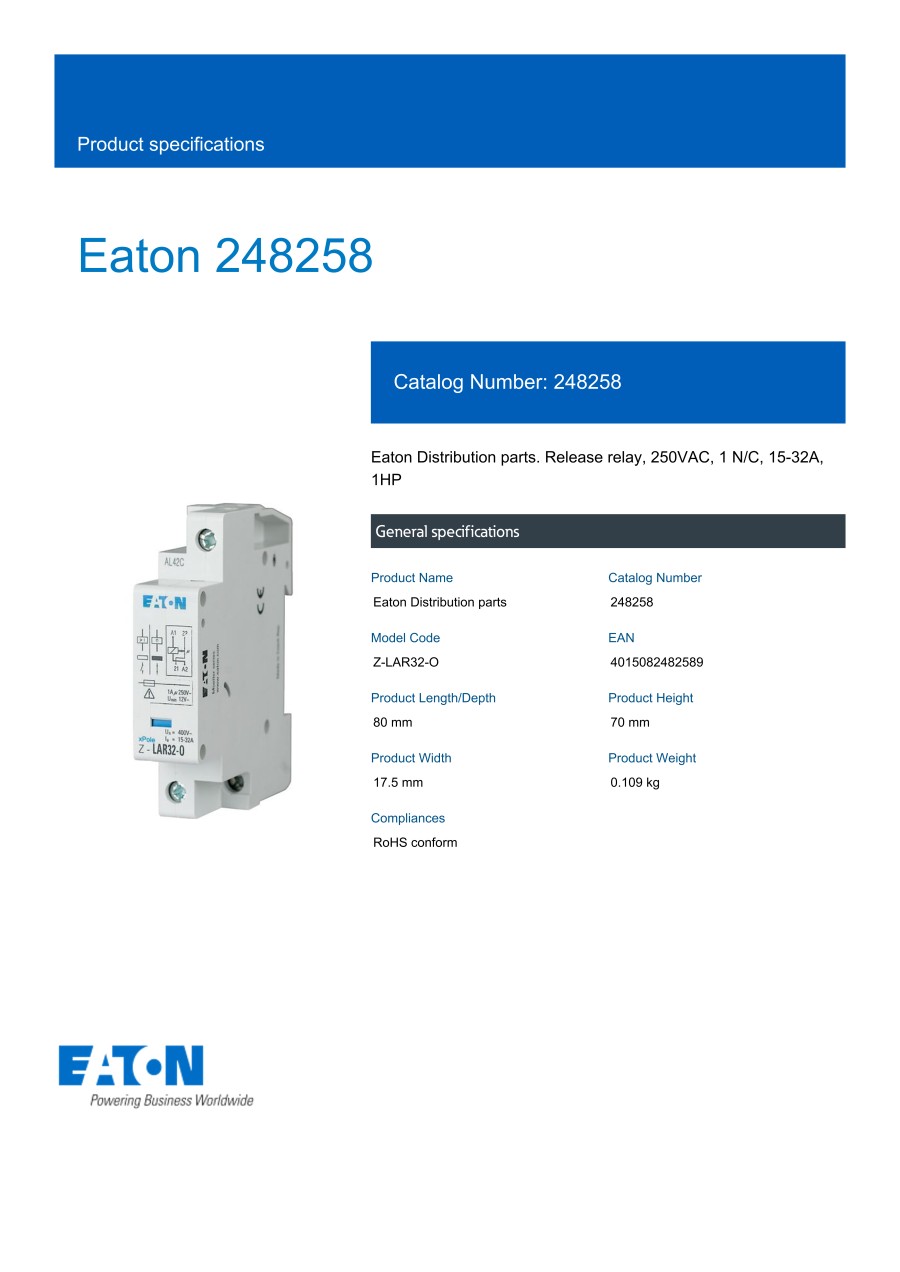

Release relay
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Mounting method | DIN rail | Voltage type | AC | Built-in depth(mm) | 60 |
|---|---|---|---|---|---|
| Rated voltage(V) | 250 | Width in number of modular spacings | 1 | Rated current Iu(A) | 15|32 |
| Just-operate current(A) | 15|32 | Rated current (control contacts)(A) | 1 | Electrical lifespan (control contacts)(c (contacts)) | 100000 |
| Max. switching power (control contacts)(VA) | 7.36 | Max. time-delayed switch-off(ms) | 0 | Max. continuous current(A) | 32 |
| Max. electrical switching cycles(c/h) | 3600 | Max. switching voltage (control contacts)(V) | 250 | Mechanical lifetime (control contacts)(c (contacts)) | 0 |
| Degree of protection (IP) | IP20 | Number of contacts as change-over contact | 0 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
