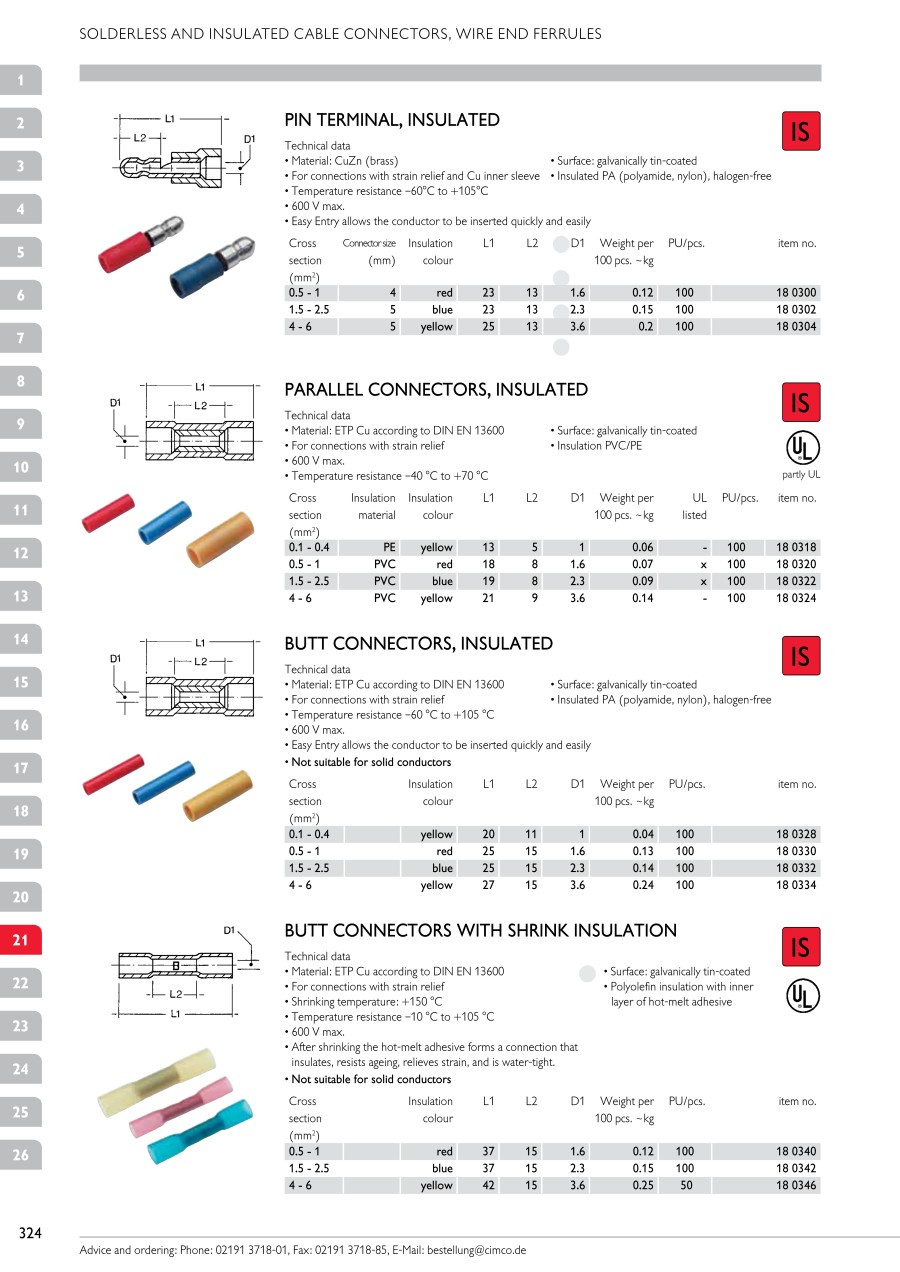

Parallel Connectors Insulated / CU-ETP / Blue, Red, Yellow

Parallel Connectors Insulated / CU-ETP / Blue, Red, Yellow

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    180318
    180320
    180322

    Colour

    Cross-section range

    Cross section

    (mm²)

    Inside diameter

    (mm)

    Manufacturer part #

    Min. cross section

    (mm²)

    Product size (length)

    (mm)

    Type (manufacturer type)

    		Minimum order quantity
    Yellow
    0.10 mm² (min)
    0.1 - 0.4
    1
    180318
    0.10
    13
    180318
    1 pieces
    Red
    0.50 mm² (min)
    0.5 - 1
    1.6
    180320
    0.5
    18
    180320
    1 pieces
    Blue
    1.50 mm² (min)
    1.5 - 2.5
    2.3
    180322
    1.5
    19
    180322
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.20 €
    ( 0.24 € )
    3 working days
    0.17 €
    ( 0.20 € )
    3 working days
    0.17 €
    ( 0.20 € )
    3 working days
  • 1

    • More Information

    Basic information

    [Features]
    ・Material: ETP Cu according to DIN EN 13600
    ・Surface: Galvanically tin-coated
    ・For connections with strain relief
    ・Insulation PVC/PE
    ・Temperature resistance –40°C to +70°C
    ・600 V max
    ・Colour: Blue, Red, Yellow
