End connector
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
4805
Basic information
| AWG max. | 20 | Colour | Transparent | Connection | - |
|---|---|---|---|---|---|
| Contact material | Copper silver plated | Cross-section range | 0.705 mm² (max) | Cross section(mm²) | 4 x 0.75 |

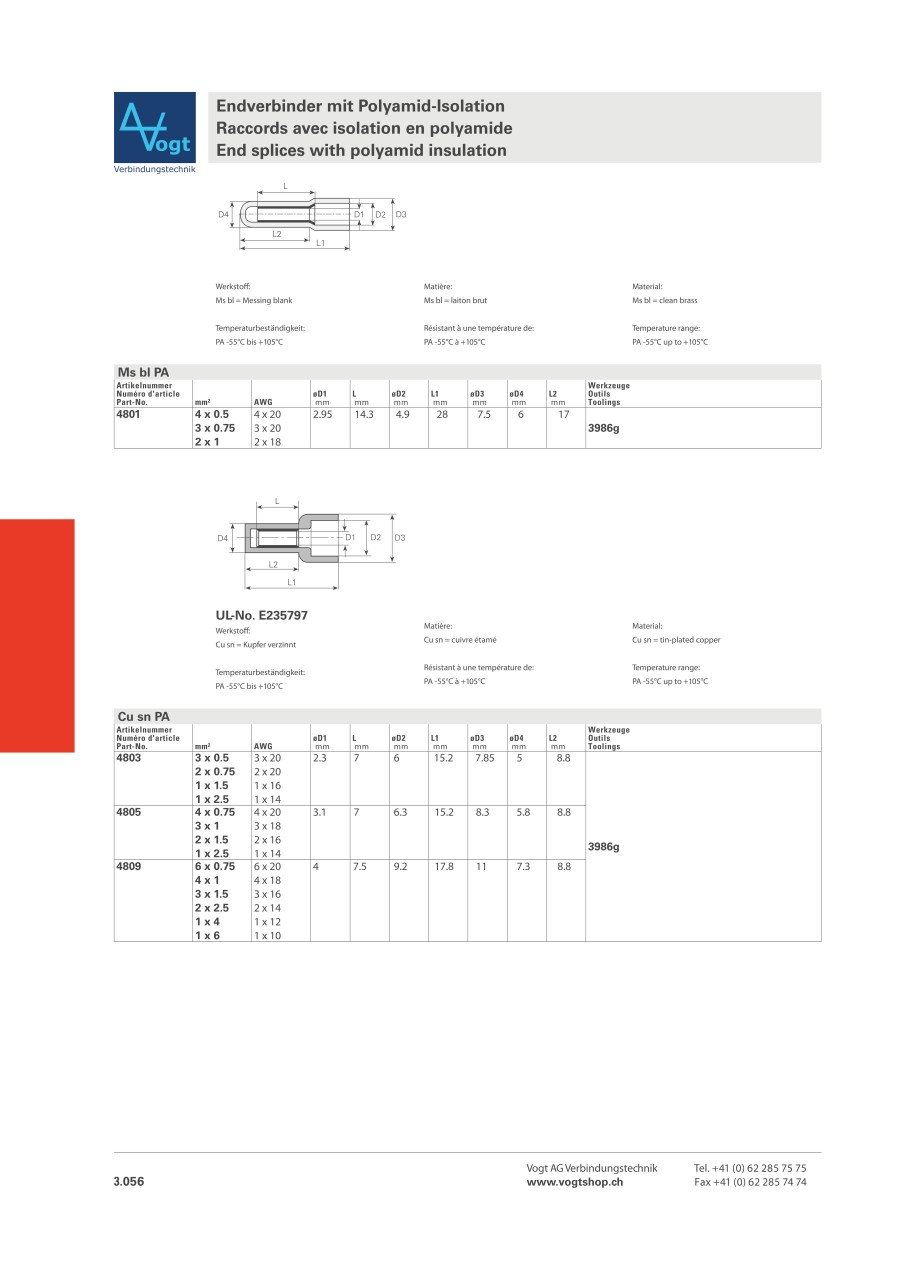

| Cross section (max.)(mm²) | 0.705 | Dimensions | ØD1 x L x ØD2 x L1 x ØD3 x ØD4 x L2 3.1 x 7 x 6.3 x 15.2 x 8.3 x 5.8 x 8.8 mm | Inside diameter(mm) | 3.1 |
| Insulation type | Insulated | Insulation material | PA | Manufacturer part # | 4805 |
| Material (details) | Cu sn PA | Outside diameter(mm) | 8.3 | Product size (length)(mm) | 15.2 |
| Product type | End connector | RoHS-compliant | Yes | Temperature range(°C) | -55 - +105 |
| Type (manufacturer type) | 4805 |
This page is End connector , part number 4805.
You can find the detail information about specifications and dimensions on part number 4805.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
