Part number:

Still undefined. 17 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Case material

Colour

Connection (components)

Connector orientation

Connector features

Connector type

Contact material

Manufacturer part #

Min. temperature

(°C)

Nominal current

(A)

Nominal voltage

(V AC)

Number of pins

Pins per row

Product size (height)

(mm)

Product size (width)

(mm)

Product size (length)

(mm)

Total number of pins

Type (manufacturer type)

Minimum order quantity

PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS6G	-40	3	500	6	3	12	15.22	9.05	6	WS6G	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS8G	-40	3	500	8	4	12	17.76	9.05	8	WS8G	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS10G	-40	3	500	10	5	12	20.3	9.05	10	WS 10 G	1 pieces
PBT. UL94V-0	Light grey	Cut & Clip	Perpendicular (to the PCB)	+ locking mechanism	Pin strip. straight	Copper alloy	WS10SKVL	-55	3	1000	10	5	30.2	32	8.3	10	WS 10 SKVL	1 pieces
PA	Black	Print	Parallel (to the PCB)	-	Pin strip. right angle	Copper alloy	WS10W	-40	1	500	10	5	13.8	20.3	12	10	WS 10 W	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS14G	-40	3	500	14	7	12	25.38	9.05	14	WS 14 G	1 pieces
PA	Black	Print	Parallel (to the PCB)	-	Pin strip. right angle	Copper alloy	WS14W	-40	1	500	14	7	13.8	25.38	12	14	WS 14 W	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS16G	-40	3	500	16	8	12	27.92	9.05	16	WS 16 G	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS20G	-40	3	500	20	10	12	33	9.05	20	WS 20 G	1 pieces
PBT. UL94V-0	Light grey	Cut & Clip	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS20SK	-55	1	500	20	10	12.5	35.7	8.4	20	WS 20 SK	1 pieces
PBT. UL94V-0	Light grey	Cut & Clip	Perpendicular (to the PCB)	+ locking mechanism	Pin strip. straight	Copper alloy	WS20SKVL	-55	3	1000	20	10	30.2	44.7	8.3	20	WS 20 SKVL	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS26G	-40	3	500	26	13	12	40.62	9.05	26	WS 26 G	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS34G	-40	3	500	34	17	12	50.78	9.05	34	WS 34 G	1 pieces
PA	Black	Print	Parallel (to the PCB)	-	Pin strip. right angle	Copper alloy	WS34W	-40	1	500	34	17	13.8	50.78	12	34	WS 34 W	1 pieces
PBT. UL94V-0	Black	Print	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS40G	-40	3	500	40	20	12	58.4	9.05	40	WS 40 G	1 pieces
PBT. UL94V-0	Light grey	Cut & Clip	Perpendicular (to the PCB)	-	Pin strip. straight	Brass	WS40SK	-55	1	500	40	20	12.5	61.1	8.4	40	WS 40 SK	1 pieces
PA	Black	Print	Parallel (to the PCB)	-	Pin strip. right angle	Copper alloy	WS40W	-40	1	500	40	20	13.8	58.4	12	40	WS 40 W	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

0.29 € ( 0.35 € )	3 working days
0.29 € ( 0.35 € )	3 working days
0.36 € ( 0.43 € )	3 working days
3.40 € ( 4.05 € )	3 working days
0.39 € ( 0.46 € )	3 working days
0.51 € ( 0.61 € )	3 working days
0.55 € ( 0.65 € )	3 working days
0.52 € ( 0.62 € )	3 working days
0.39 € ( 0.46 € )	3 working days
3.40 € ( 4.05 € )	3 working days
4.71 € ( 5.60 € )	3 working days
0.63 € ( 0.75 € )	3 working days
0.76 € ( 0.90 € )	3 working days
0.45 € ( 0.54 € )	3 working days
0.85 € ( 1.01 € )	3 working days
4.45 € ( 5.30 € )	3 working days
0.72 € ( 0.86 € )	3 working days

Catalog

Products homepage

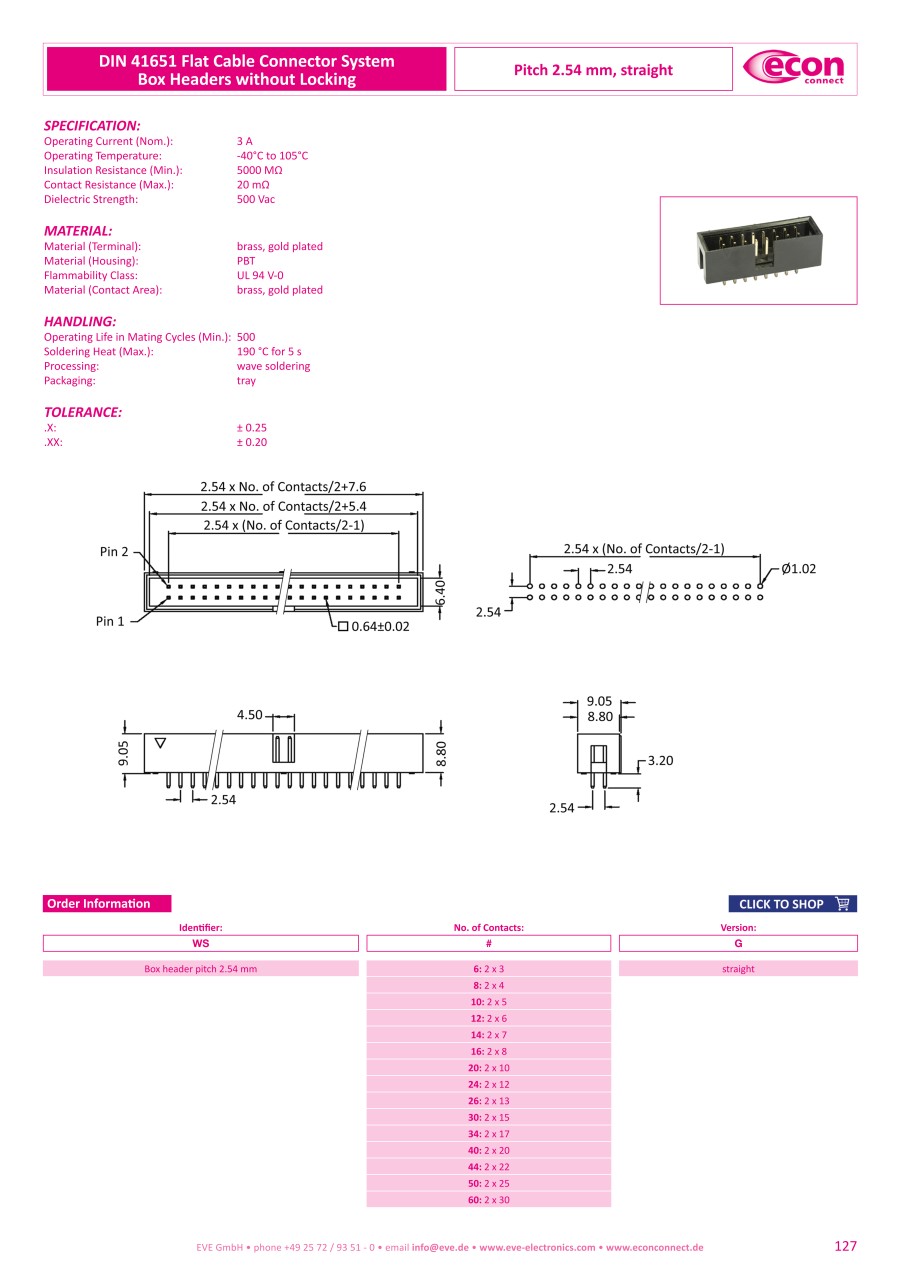

Catalog (2-page spread)
