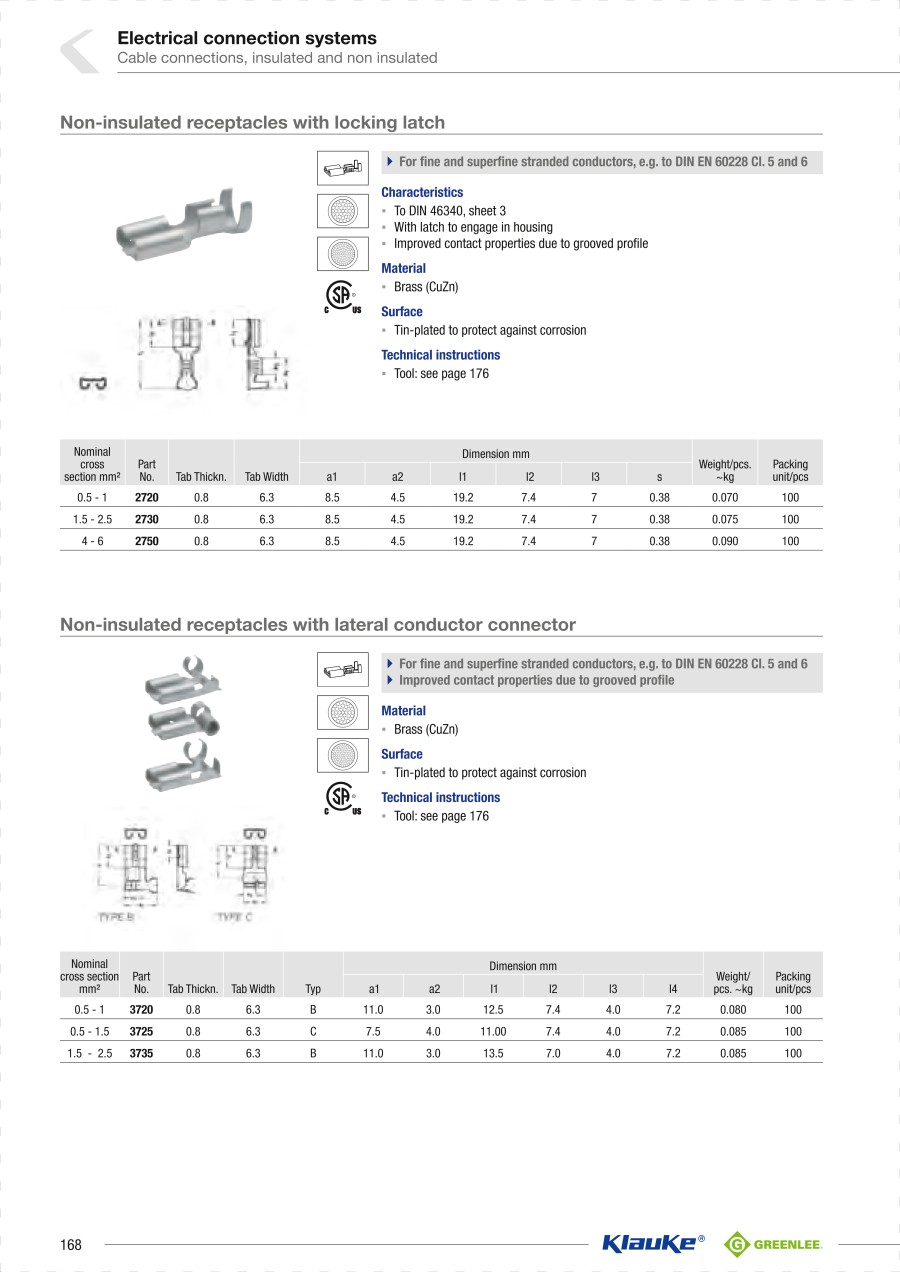

Klauke 3725 Blade receptacle Connector width: 6.3 mm Connector thickness:
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
3725
Basic information
| Colour | Metal | Connection angle(°) | 90 | Connector thickness(mm) | 0.8 |
|---|---|---|---|---|---|
| Connector width(mm) | 6.3 | Contact material | Brass tin plated | Cross-section range | 0.50 - 1.50 mm² |
| Cross section(mm²) | 0.5 - 1.5 | Cross section (max.)(mm²) | 1.5 | Insulation type | Not insulated |
| Manufacturer part # | 3725 | Material (details) | CuZn. tin-plated | Min. cross section(mm²) | 0.5 |
| Product type | Blade receptacle | Size | 6.3 x 0.8 mm | Type (manufacturer type) | 3725 |
| Type (misc.) | 6.3 x 0.8 mm | Type | C |
This page is Klauke 3725 Blade receptacle Connector width: 6.3 mm Connector thickness:, part number 3725.
You can find the detail information about specifications and dimensions on part number 3725.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
