Klauke 790 Parallel connector 4 mm² 6 mm² Insulated Yellow 1 pc(s)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
790
Basic information
| Colour | Yellow | Contact material | CU-ETP | Cross-section range | 4 - 6 mm² |
|---|---|---|---|---|---|
| Cross section(mm²) | 4 - 6 | Cross section (max.)(mm²) | 6 | Dimensions | (d1 x l1 x l2) 3.6 x 21 x 7 mm |
| Inside diameter(mm) | 3.6 | Insulation type | Insulated | Insulation material | PA |
| Insulation (material) | Halogen-free PA | Manufacturer part # | 790 | Material (details) | Cu-ETP. tin-plated |
| Min. cross section(mm²) | 4 | Product size (length)(mm) | 21 | Product type | Parallel connector |
| Type (manufacturer type) | 790 |
This page is Klauke 790 Parallel connector 4 mm² 6 mm² Insulated Yellow 1 pc(s), part number 790.

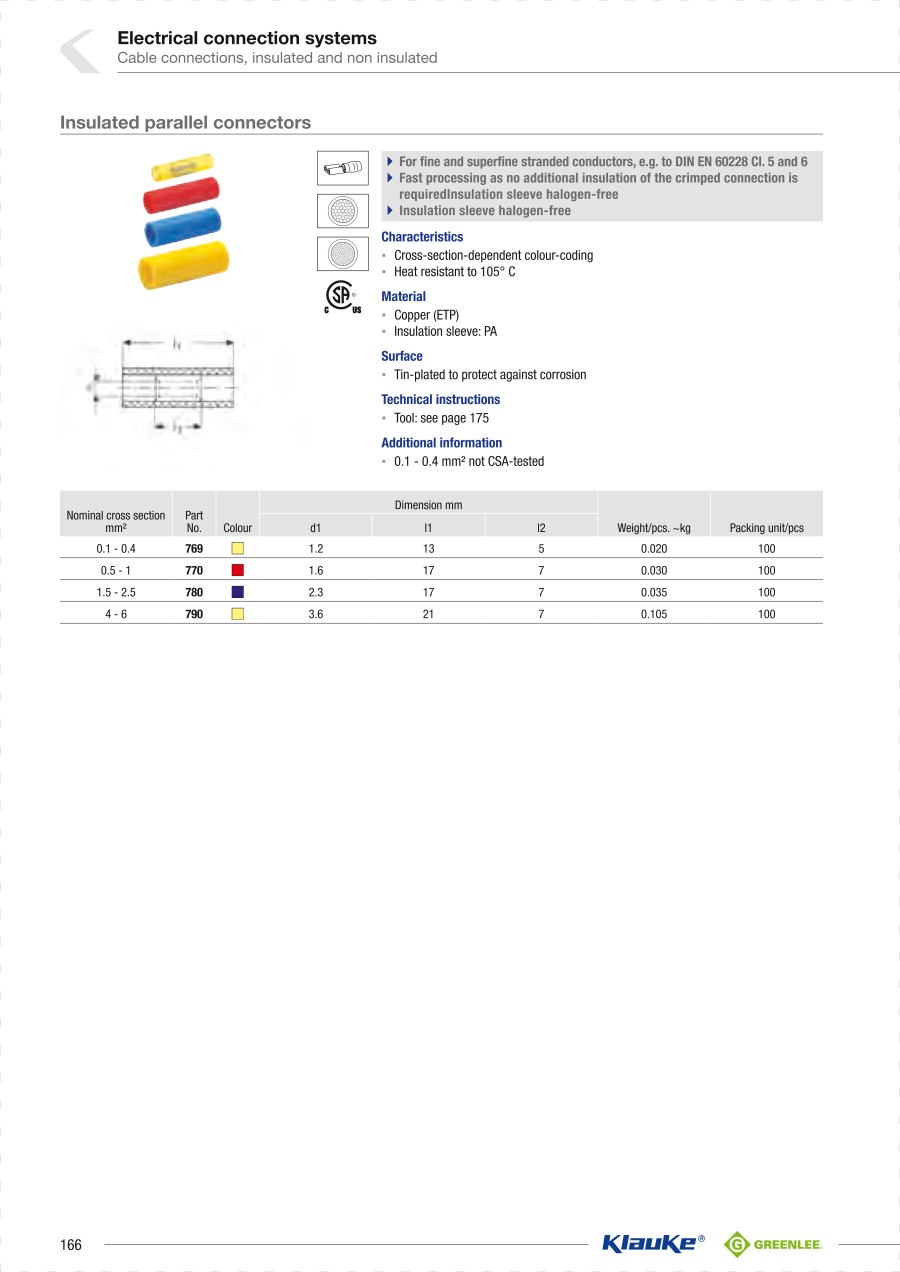

You can find the detail information about specifications and dimensions on part number 790.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
