DIAZED Bar Mounting Bases【4 Pieces Per Package】
- Volume Discount
[Specifications]
・Product type: DIAZED fuse holder
・Nominal current(A): 25
・Nominal voltage(V AC): 500

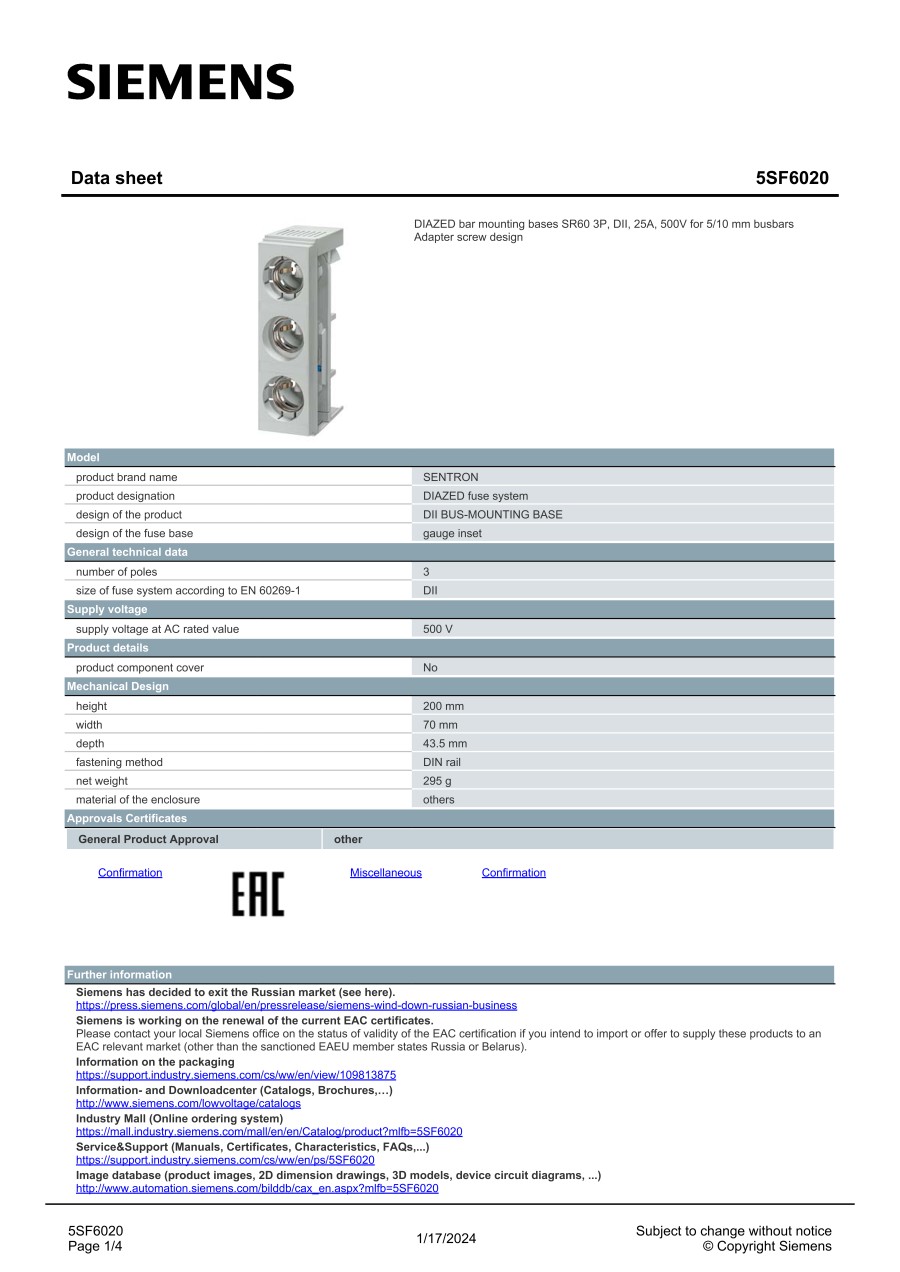

DIAZED bar mounting bases SR60 3P, DII, 25A, 500V for 5/10 mm busbars Adapter screw design.
・Product type: DIAZED fuse holder
・Nominal current(A): 25
・Nominal voltage(V AC): 500
DIAZED bar mounting bases SR60 3P, DII, 25A, 500V for 5/10 mm busbars Adapter screw design.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
5SF6020
Basic information
| Fuse size | DII | Nominal current(A) | 25 | Nominal voltage(V AC) | 500 |
|---|---|---|---|---|---|
| Product size (height)(mm) | 200 | Product size (depth)(mm) | 43.5 | Product size (width)(mm) | 70 |
| Product type | DIAZED fuse holder | Type (misc.) | DII-mounting bases |
This page is DIAZED Bar Mounting Bases, part number 5SF6020.
You can find the detail information about specifications and dimensions on part number 5SF6020.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
