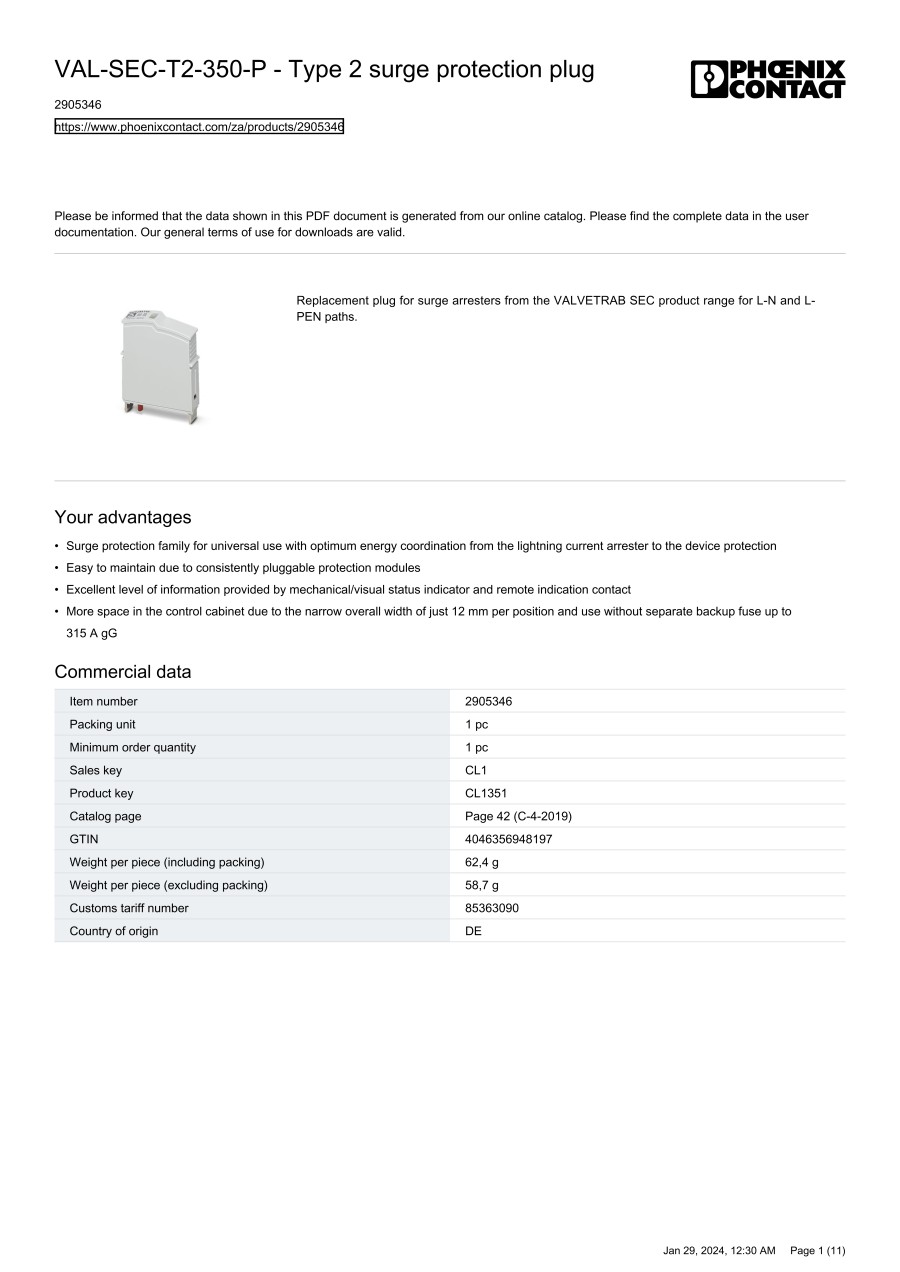

Type 2 surge protection plug, Replacement plug, VAL-SEC
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 2905346 |
| 2905347 |
| 2905355 |
| 2905356 |
| 2907877 |
| 2907878 |
| 2907879 |
| 2907880 |
| 2909596 |
| 2909636 |
| 2909969 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Voltage protection level (kV) | Max. continuous voltage AC (V) | Nominal discharge surge current (8/20) (kA) | Nominal voltage AC (V) | Nominal voltage DC (V) | Max. continuous voltage DC (V) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
63.85 € | 3 | 7 Days | 1.5 | 350 | 20 | 240 | - | - | |||
79.35 € | 3 | 25 Days | 1.5 | 264 | 20 | 240 | - | - | |||
63.85 € | 3 | 9 Days | 0.85 | 175 | 20 | 120 | - | - | |||
79.35 € | 3 | 9 Days | 0.95 | 150 | 20 | 120 | - | - | |||
78.90 € | 3 | 11 Days | 0.5 | 75 | 20 | - | 60 | 75 | |||
78.90 € | 3 | 11 Days | 0.85 | 150 | 20 | - | 120 | 150 | |||
78.90 € | 3 | 11 Days | 1.5 | 250 | 20 | - | 220 | 250 | |||
78.90 € | 3 | 11 Days | 1.5 | 450 | 20 | - | 400 | 450 | |||
94.30 € | 2 | 9 Days | 1.5 | 350 | 10 | 240 | - | - | |||
105.30 € | 2 | 9 Days | 1.5 | 264 | 40 | 240 | - | - | |||
74.10 € | 3 | 9 Days | 1.9 | 440 | 20 | 400 | - | - |
Loading...
Basic information
| Mounting method | On basic element | With remote signalling contact | true | Number of conductors (without earthing) | - |
|---|---|---|---|---|---|
| Construction size | 1 modular spacing | Category type 2 | true | Voltage protection level L-N(kV) | - |
| Signalling at the device | Optic | Degree of protection (IP) | - | Max. PV-voltage(V) | - |
| Voltage protection level N-PE(kV) | - | Integrated backup fuse | false | Max. conductor cross section solid (solid, stranded)(mm²) | - |
| Max. conductor cross section flexible (fine-strand)(mm²) | - | System configuration DC | - | System configuration IT | - |
| System configuration TN | - | System configuration TN-C | - | System configuration TN-S | - |
| System configuration TT | - | System configuration other | - | System configuration TN-C-S | - |
| Max. discharge surge current (8/20)(kA) | - | Short-circuit breaking capacity (Isccr)(kA) | - |
