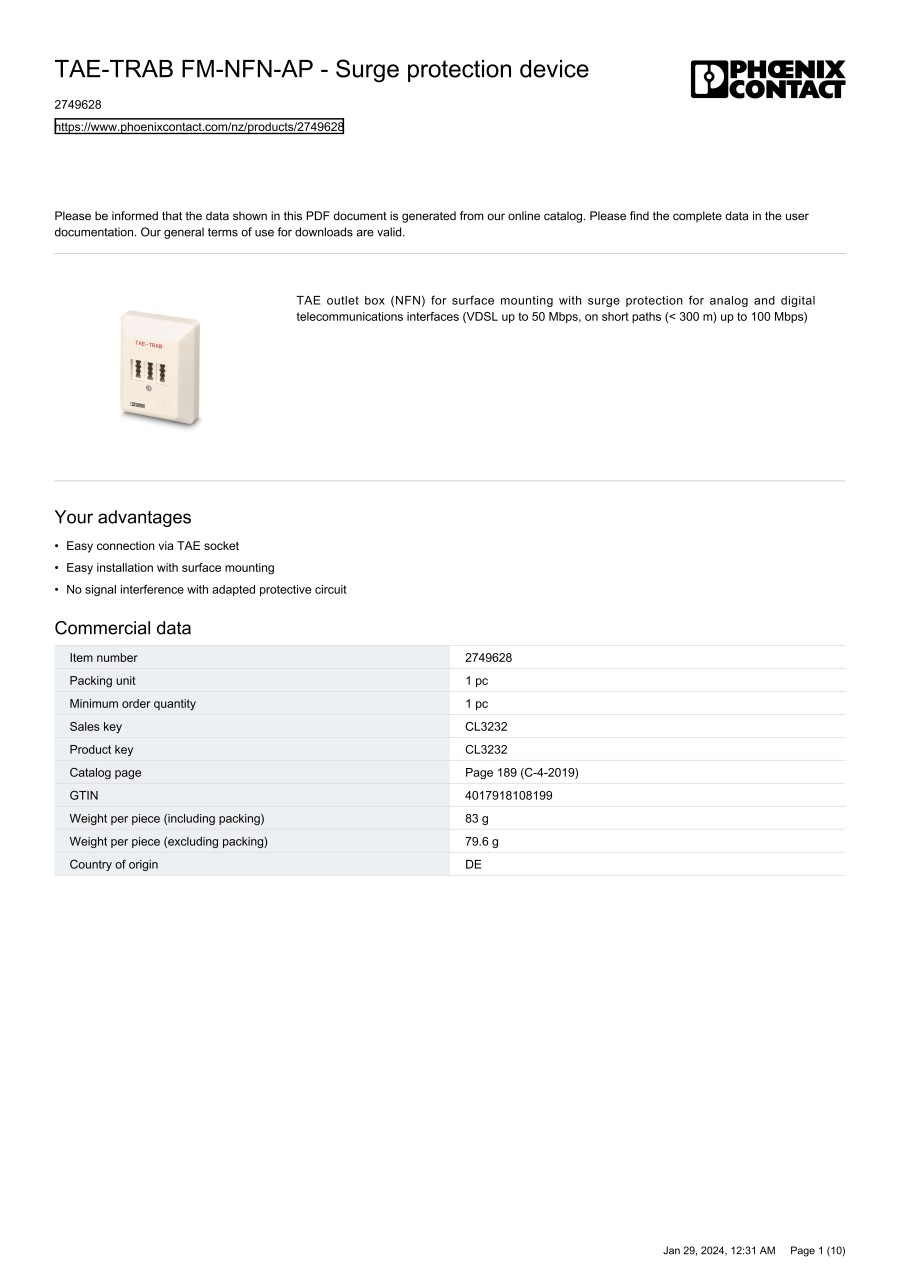

Surge protection device, TAE-TRAB
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
2749628
Basic information
| Mounting method | Other | Connection 1 | - | Frequency(MHz) | -|- |
|---|---|---|---|---|---|
| Lightning impulse current (10/350 µs)(kA) | - | With remote signalling contact | false | Limiting frequency(MHz) | 8 |
| Explosion-tested version | false | Max. continuous voltage AC(V) | - | Nominal discharge surge current (8/20)(kA) | 5 |
| Nominal load current(A) | 0.45 | Nominal voltage AC(V) | -|- | Nominal voltage DC(V) | 60|60 |
| Voltage protection level core/core(V) | 250 | Voltage protection level core/earth(V) | 500 | Signalling at the device | None |
| Max. continuous voltage DC(V) | 185 | Voltage protection level core/signal ground(V) | - | Voltage protection level signal ground/protective ground(V) | - |
| Pro-active thermo-control | false |
This page is Surge protection device, TAE-TRAB, part number 2749628.
You can find the detail information about specifications and dimensions on part number 2749628.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
