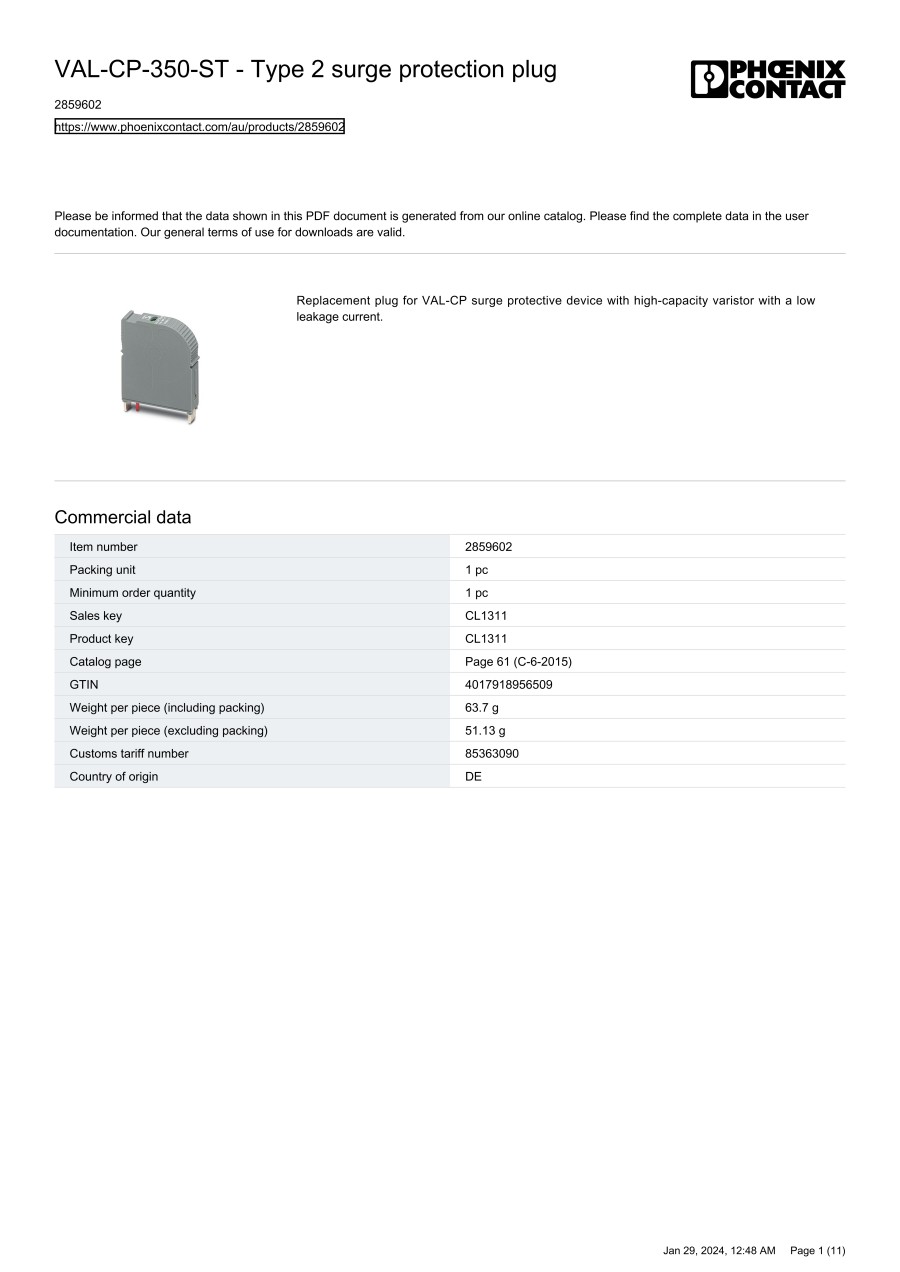

Type 2 surge protection plug, Replacement plug, VAL-CP
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 2859602 |
| 2859628 |
| 2859699 |
| 2859709 |
| 2882718 |
| 2882734 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Construction size | Voltage protection level (kV) | Max. continuous voltage AC (V) | Nominal voltage AC (V) | Voltage protection level N-PE (kV) | |
|---|---|---|---|---|---|---|---|---|---|---|
85.20 € | 3 | 14 Days | 1 modular spacing | 1.5 | 350 | 240 | - | |||
85.20 € | 10 | 8 Days | 1 modular spacing | 0.85 | 175 | 120 | - | |||
105.90 € | 10 | 9 Days | 1 modular spacing | - | 264 | 240 | 1.5 | |||
105.90 € | 10 | 9 Days | - | - | 150 | 120 | 0.95 | |||
70.45 € | 10 | 25 Days | 1 modular spacing | 1.5 | 350 | 240 | - | |||
84.15 € | 10 | 25 Days | 1 modular spacing | - | 264 | 240 | 1.5 |
Loading...
Basic information
| Mounting method | On basic element | With remote signalling contact | true | Number of conductors (without earthing) | - |
|---|---|---|---|---|---|
| Nominal discharge surge current (8/20)(kA) | 20 | Nominal voltage DC(V) | - | Category type 2 | true |
| Voltage protection level L-N(kV) | - | Signalling at the device | Optic | Max. continuous voltage DC(V) | - |
| Degree of protection (IP) | - | Max. PV-voltage(V) | - | Integrated backup fuse | false |
| Max. conductor cross section solid (solid, stranded)(mm²) | - | Max. conductor cross section flexible (fine-strand)(mm²) | - | System configuration DC | - |
| System configuration IT | - | System configuration TN | - | System configuration TN-C | - |
| System configuration TN-S | - | System configuration TT | - | System configuration other | - |
| System configuration TN-C-S | - | Max. discharge surge current (8/20)(kA) | - | Short-circuit breaking capacity (Isccr)(kA) | - |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
